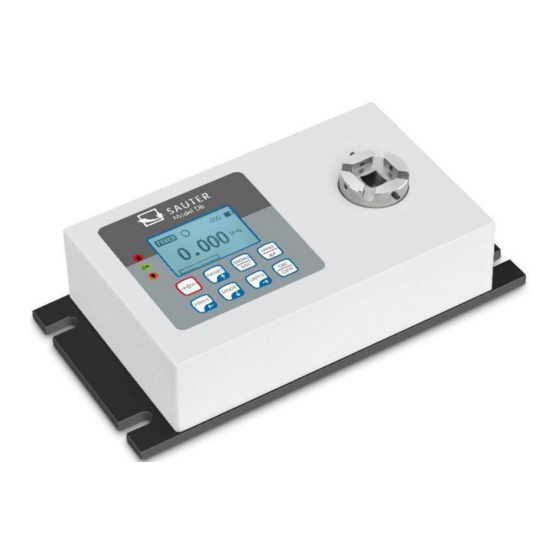

- Page 1 Sauter GmbH Ziegelei 1 Phone : +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 e-mail: info@kern-sohn.com Internet: www.sauter.eu Instruction manual digital torque tester SAUTER DB Version 2.0 03/2020 PROFESSIONAL MEASURING DB-BA-e-2020...
-
Page 2: Table Of Contents
V. 2.0 03/2020 Instruction manual digital torque tester Thank you for purchasing the digital torque measuring device from SAUTER. We hope that you will be very satisfied with the high quality of the hardness tester and its extensive functionality. Although the device is a complex and technically advanced measuring instrument, it is designed for many years of trouble-free use, provided that it is used for its intended purpose and properly maintained. -
Page 3: Before Commissioning
(see paragraph Main menu). 3 Initial commissioning The SAUTER DB digital torque measuring instrument is equipped with a battery set consisting of 4 rechargeable AAA NiMH batteries. To be on the safe side, the rechargeable batteries are completely discharged for transport and separated from the power supply. -
Page 4: Technical Data
5 Technical data Torque tester DB 0.5-4 DB 1-3 DB 5-3 DB 10-3 DB 20-3 DB 50-2 Maximum torque 0.5 Nm 15 Nm 5 Nm 10 Nm 20 Nm 50 Nm Accuracy ±0.5% of full scale range (Composite error) Creep ±0.002 of full scale range... -
Page 5: Operation Of The Torque Measuring Instrument Db
6 Operating the torque measuring instrument DB 6.1 Before commissioning It must be ensured that the measuring plate is neither loaded nor exposed to any other force when the device is switched on. 6.2 Switching on the device There are 8 keys arranged on the control panel. - Page 6 During the selection process, the measurement results are automatically converted. Important! It must be remembered that not all units of measurement are always available. This depends on the permissible load of the respective instrument. DB-BA-e-2020...
- Page 7 "Peak". The highest measured torque value is displayed: Symbol of the Peak torque function 6.3.8 Resetting the device Stored peak values of both types are deleted with the RESET button. This also enables the acquisition of further peak values. DB-BA-e-2020...
- Page 8 6.3.11 Output signal The measurement result obtained can be transferred to the PC. It is done by pressing the PRINT key or by interrogating the instrument from the PC. The respective command can be sent via RS232 or USB. DB-BA-e-2020...
-
Page 9: Main Menu
AUTO-OFF MENU 1) OFF 5 MINUTE 3) 10 MINUTE 4) 15 MINUTE Use the UP or DOWN arrow keys to position the cursor accordingly. Then press ENTER to select the AUTO-OFF function and return to the main menu screen. DB-BA-e-2020... - Page 10 The PASS-FAIL function is automatically turned off when the setting of the lower limit (LOWER) and upper limit (UPPER) is 0 N. The LOWER value must be lower than the UPPER value. DB-BA-e-2020...
- Page 11 Example 3 LOWER LIMIT= 10 N-m, UPPER LIMIT= 20 N-m Load The "UPPER" LED is on. Other LEDs are off. Upper limit The "OK" LED is on. Other LEDs are off. Lower limit The "LOWER" LED is on. Other LEDs are off. Time DB-BA-e-2020...
- Page 12 If the DELETE option is selected and the ENTER key is pressed, the current stored results are deleted and the memory mask is returned to. Selecting the DELETE ALL option and pressing ENTER will delete all stored results and return to the memory mask. DB-BA-e-2020...
- Page 13 6.4.4 CALIBRATION (CALIBRATION) Calibration of the measuring instrument is carried out by the manufacturer's service personnel. Detailed information in this regard can be obtained from SAUTER's dealer or directly from the manufacturer. 6.4.5 DIAGNOSTIC (DIAGNOSTIC FUNCTION) This function is used to check the status of the load cell. If there are indications that the load cell transformer has been overloaded, it is possible to check the state of the load cell directly.
-
Page 14: Measurement Methods
The permissible load according to the specifications on the front of the device must not be exceeded under any circumstances. Otherwise the load cell will be permanently damaged, even in the event of a short-term overload. Such damage is excluded from the warranty. DB-BA-e-2020... -
Page 15: Control Buttons
• Press the key briefly: Switch between N, gf, kgf, ozf, lbf, mN Mode (mode change): Assignment with three functions: • Track mode (continuous measurement) • Peak Mode Train • Peak Mode Print ON / OFF: • On / Off button (press button for approx. 1 s) DB-BA-e-2020... -
Page 16: Conversion Factors
8 Conversion factoren Calo- Stopo- Unit n.m. p.cm. funt funt N. m 10,197 0,10197 8,8507 0,73756 p.cm. 0,0980665 0,01 0,86796 0,07233 9,80665 86,796 7,233 calofunt 0,11298 1,152 0,01152 0,08333 stopofunt 1,3558 13,8255 0,138255 DB-BA-e-2020...
