sauter TB-US Instruction Manual

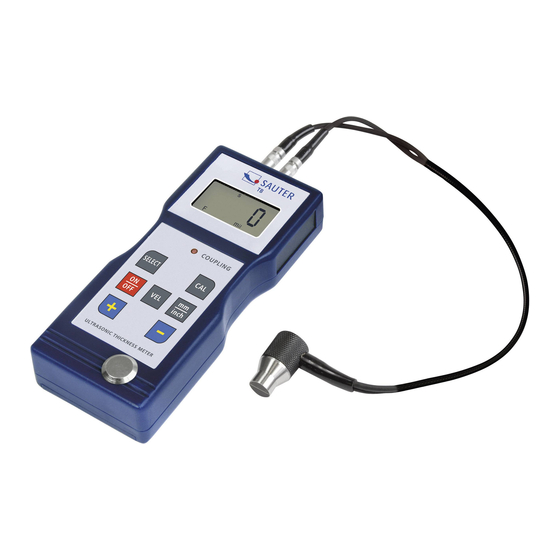

DIGITAL THICKNESS GAUGE
Model: TB 200-0.1 US
TB 200-0.1 US-red
Annotation: Model TB 200-0.1 US-red has no free
adjustable measurement range. Only the
pre-set materials can be measured.
Please only read the adequate sections.
Table of contents

1. Features

2. Specifications

3. Front panel description

4. Material selection
5. Calibration
6. Measuring procedure
7. Measuring by velocity setting
8. Battery replacement
9. Declaration of conformity
Annotation: It is strongly recommended to calibrate
the new instrument before the first use, as
described in paragraph 5. By doing this it
will be achieved a much better measure-
ment result right from the start.
1. Features
» Wide measuring range and high resolution
» Convenient to measure the thickness of many materials,
e.g. steel, cast iron, aluminium, red copper, brass, zinc,
quarz glass, Polyethylen, PVC, grey cast iron, nodular
cast iron.
» Automatic power-off to preserve batteries
2. Specifications
Display: 4 digits, 10mm LCD
Range: 1.5 to 200mm (in 45# steel)
TB_US-BA-e-1110
Sauter GmbH
Tieringerstr. 11-15
D-72336 Balingen
E-Mail: info@sauter.eu
Instruction Manual
TB-US, TB-US-red
Resolution: 0.1mm/ 0.001inch
Accuracy: ± (0.5%n+0.1)
Sound velocity: 500 to 9000m/s
Power supply: 4×1.5V AA (UM-3) battery
Operating conditions: Temperature:
Size: 160×68×32mm (5.5×2.8×1.2inch)
Weight: about 208g (not including batteries)
Accessories:
.

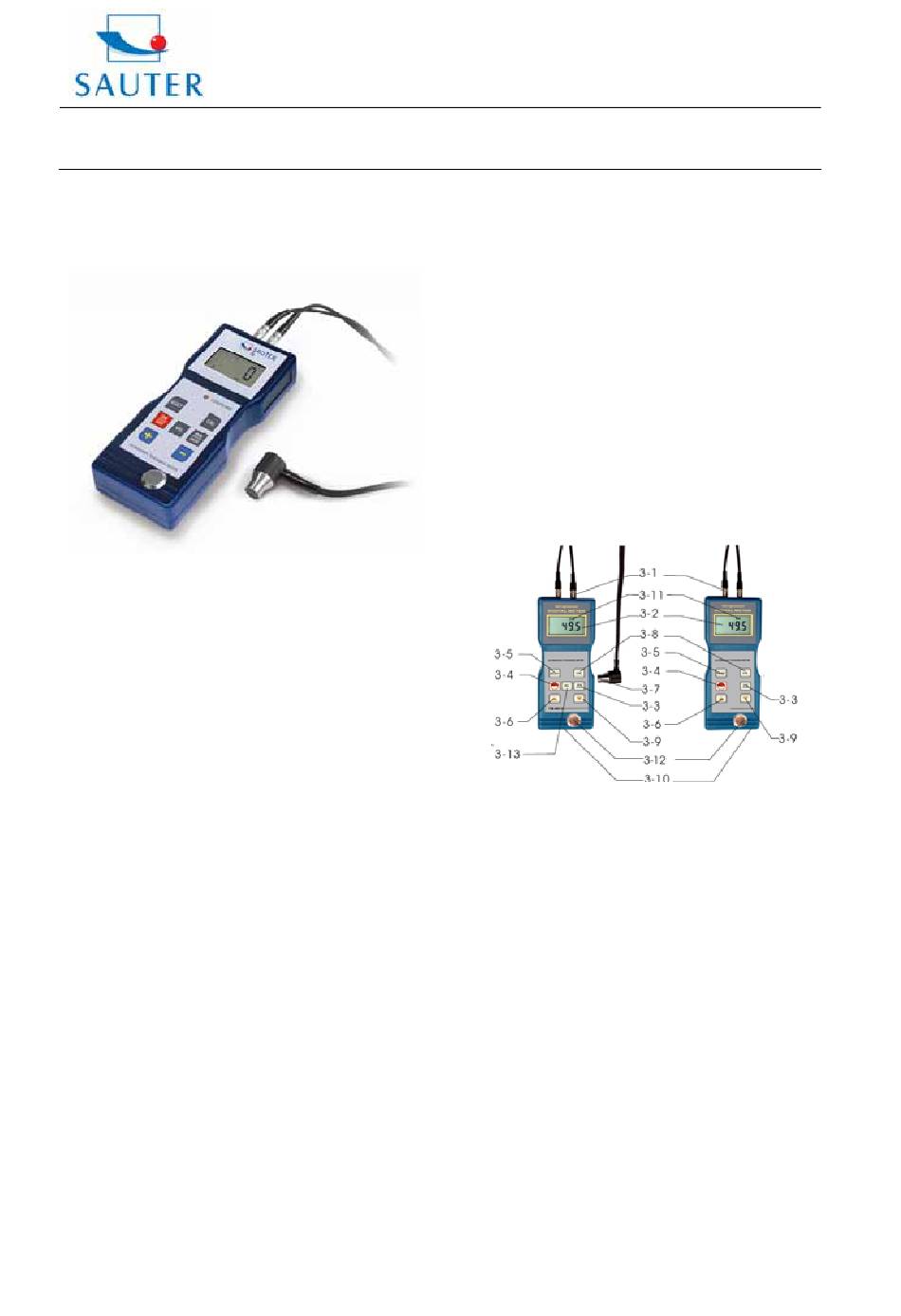

3. Front panel description
3- 1 Sensor plug
3- 2 Display
3- 3 mm/ inch key
3- 4 Power- key
3- 5 Material selection key
3- 6 Plus- key
3- 7 Ultrasonic sensor
3- 8 Calibration key
3- 9 Minus- key
3-10 Battery compartment/ cover
3-11 Coupling indicator
3-12 Base plate
3-13 Velocity key (only TB 200-0.1 US)
4. Material selection
4.1 The instrument has to be switched on by the
Power- key 3-4.
4.2 The Material selection key 3-5 has to be pressed and
the display 3-2 will show the code `cdxx` or `xxxx`.
`cd` is the abbreviation for `code` and `xx` is a
number among 0.1 and 11 that stands for the material
to be measured as shown in the scale below.
. `xxxx` is a 4-digit number describing
the sound velocity of the material defined by the user.
The `cdxx` material relationship is as follows:
Tel: +49-[0]7433- 9976-174
Fax: +49-[0]7433-9976-285
Internet: www. sauter.eu
Humidity:
Carrying case
Operation manual
Ultrasonic sensor
TB 200-0.1 US
0 to 50°C
<80%
TB 200-0.1 US-red
