Page 1
Sauter GmbH Ziegelei 1 Tel.: +49-[0]7433- 9933-199 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@sauter.eu Internet: www.sauter.eu Instruction Manual Motorized Vertical Test Stand SAUTER TVO 500N300 Version 1.4 05/2018 PROFESSIONAL MEASURING TVO-BA-e-1814...
Page 2
Instruction Manual Motorized Vertical Test Stand Thank you for buying a motorized vertical SAUTER Test Stand. We hope you are pleased with your high quality test stand in table version and with its functional range. If you have any queries, wishes or helpful suggestions, do not hesitate to call our service number.
Page 3

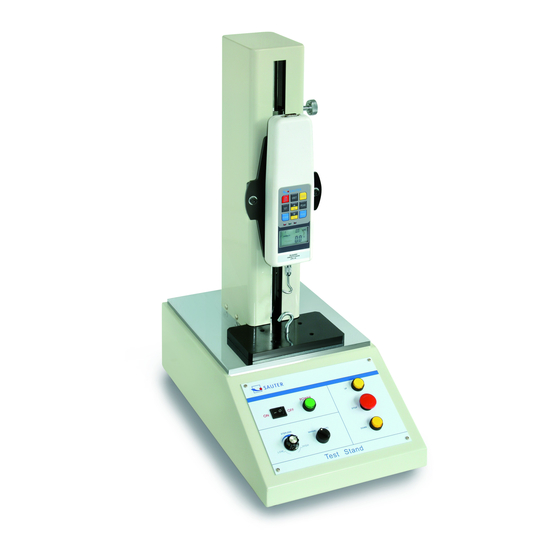

1 Construction 2 Function The electrical vertical test stand TVO500N300 is applied in tension and compression tests. It can be assembled with push and pull gauges. The test stand is of good stability, has got a wide application range and it is easy to operate. Furthermore, it has the advantage of non-polar speed adjustment, manual and automatic operation and auto control of switch function.
Page 4
4 Operation Examine before operation! A. The retainer has to be locked, the power has to be switched on by the power switch. The power lamp will be flashing. B. The test stand has to be examined if there is any abnormal sound with the test stand moving without load.
