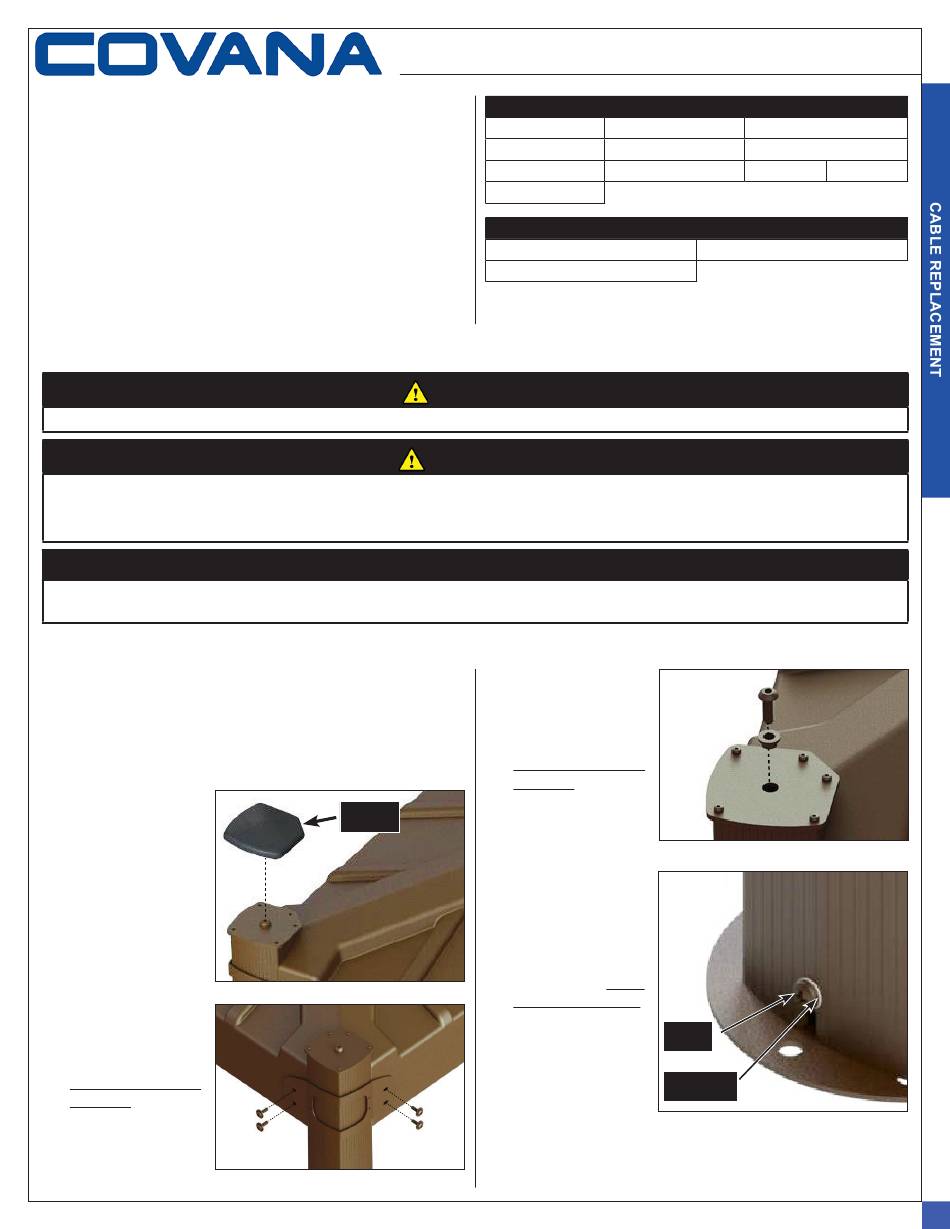

COVANA EVOLUTION Replacement Procedure

PRODUCT MODELS
● Evolution Cover with G2 Posts only
● Oasis Cover with G2 Posts only
PURPOSE OF THE REPAIR PROCEDURE
This repair procedure should be performed if the cable needs to be
replaced on the Evolution or Oasis spa cover.
PREPARATION
● The cover must be closed.
● Gather the required tools, as seen in the table at right.
● Make sure the parts kit is complete and that parts have not been
damaged during transport. Call your local dealer if parts need to
be replaced.
Do not use power tools, some parts are fragile and may break under too much torque.
This procedure must be performed by a certified Covana installer.
Keep the key out of the key switch socket at all times. The certified Covana installer must keep control of the key during the
repair procedure. Derogation from this directive could cause serious injury or damage the cover.
All images shown are for illustration purpose only. Actual product may vary due to the different models this procedure is
intended for.
STEP BY STEP PROCEDURE
A- REMOVING THE DEFECTIVE CABLE
1) Lower the cover (fully closed) and ensure it is sitting on the
spa completely.
2) Remove the rubber
cap from each
post.
3) Remove the four
M6 x 20 mm bolts
and 5/16" painted
metal washers
from the defective
post only.
Do not discard!
Leave the bracket
attached to the
sleeve.
EVOLUTION - OASIS ― CABLE REPLACEMENT PROCEDURE
TOOLS REQUIRED
7/32" Allen key
Phillips screwdriver Flat blade screwdriver
Round tip punch
Locking pliers
PARTS KIT NO. 222106
1 x Cable
1 x Cable hook
Version française à la page 4.
CAUTION
WARNING
NOTE
4) Remove the 3/8-24
x 1" Allen bolt with
a 7/32" Allen key
from the defective
post only.
Do not discard!
Rubber
cap
5) Loosen the Phillips
M6 x 20 mm screw
at the bottom of the
image 1
defective post only.
Do not remove
the screw.
6) Slide the sleeves upward to expose the jack. Set them
aside in a safe location.
image 2
