COVANA EVOLUTION
Read this manual before proceeding with installation
Veuillez lire ce guide avant de procéder à l'installation
Installation Manual
Manuel d'installation
www.covana.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Evolution and is the answer not in the manual?

Questions and answers

Related Manuals for COVANA Evolution

Summary of Contents for COVANA Evolution

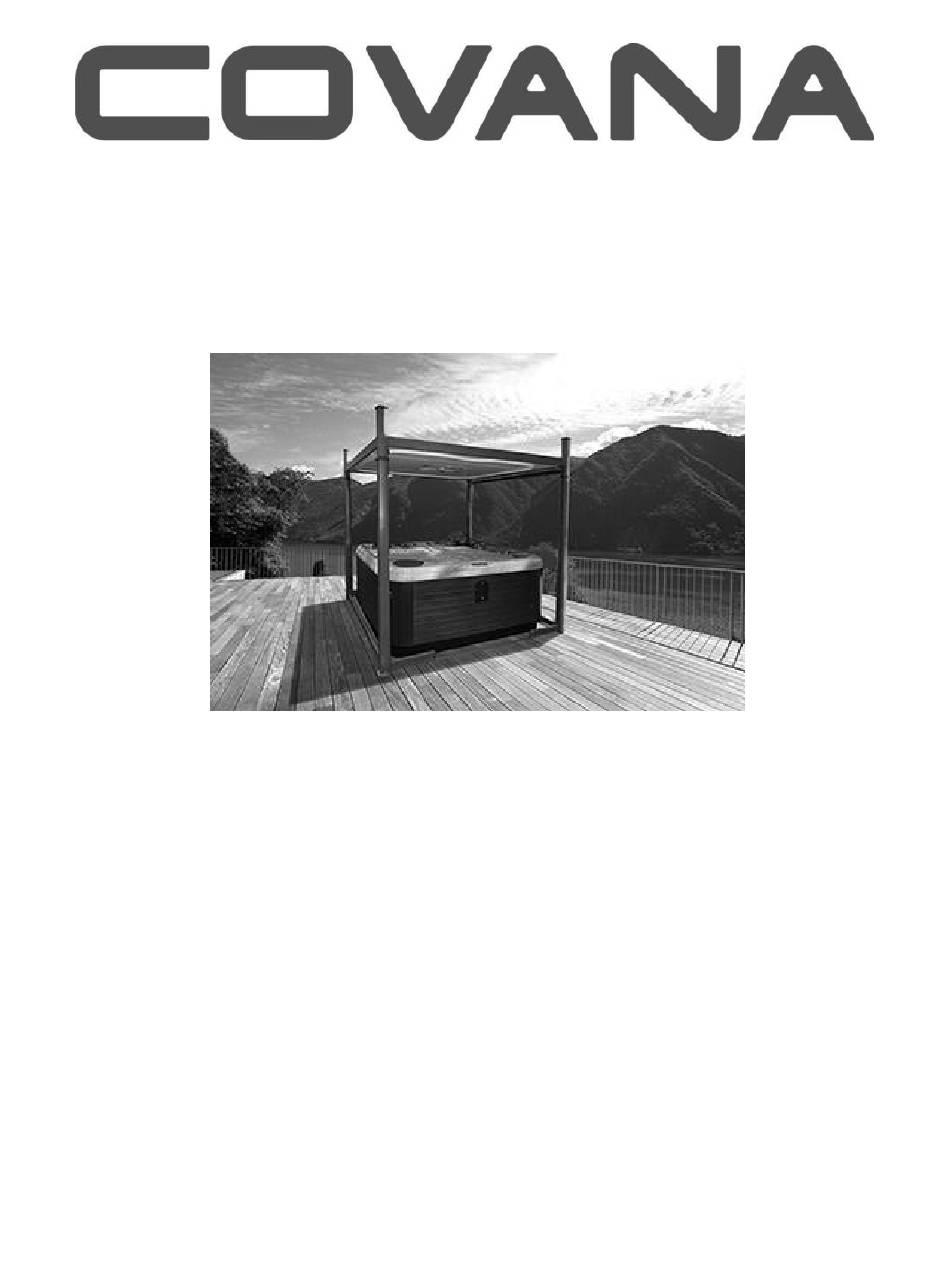

  • Page 1 COVANA EVOLUTION Read this manual before proceeding with installation Veuillez lire ce guide avant de procéder à l’installation Installation Manual Manuel d’installation www.covana.com...
  • Page 2 THE REQUIREMENTS OF ALL APPLICABLE LOCAL CODES AND REGULATIONS. WARNING RISK OF ELECTROCUTION THE COVANA OPERATOR MUST BE CONNECTED TO A DEDICATED GFCI (GROUND FAULT CIRCUIT INTERRUPTERS) PROTECTED CIRCUIT. REFERENCE: MUST COMPLY WITH ALL APPLICABLE LOCAL CODES AND REGULATIONS. WARNING...
  • Page 3 MADE. IMPORTANT ALL 4 POSTS OF THE COVANA MUST BE PROPERLY ANCHORED TO ITS FOUNDATION USING THE ANCHORING HOLES LOCATED AT THE FOOT OF EACH POST. THE OPTIONAL NON PERMANENT MOUNTING PLATES CAN BE USED WHEN ANCHORING IS NOT POSSIBLE.
  • Page 4 NOTICE THIS OPERATOR IS SPECIALLY DESIGNED TO OPERATE ONLY WITH THE COVANA LIFTING SYSTEM. UNDER NO CIRCUMSTANCES SHOULD THIS OPERATOR BE USED FOR ANY OTHER APPLICATIONS. NOTICE DISPOSAL: THIS PRODUCT MAINLY CONTAINS STEEL, COPPER (CU) AND ALUMINUM DIE-CAST (AL). THE GEARBOX CONTAINS OIL AND OTHER MATERIALS. PLEASE RECYCLE WISELY.
  • Page 5 PREPARING A PROPER FOUNDATION Just like the spa, the Covana requires a solid foundation. The area that the Covana sits on must be able to support at least 600 lb (272 kg) and must be leveled. All components of the Covana must be supported by the foundation.

  • Page 6: Side Elevation Dimensions

    SIDE ELEVATION DIMENSIONS...

  • Page 8: Frame Dimensions And Footprint

    FRAME DIMENSIONS AND FOOTPRINT...
  • Page 9 GROUNDING AND CONNECTION OF POWER SUPPLY WARNING RISK OF INJURY DISCONNECT OR TURN OFF ALL POWER SUPPLY BEFORE STARTING ANY INTERVENTION ON THE COVANA. Remove the four screws on the bottom side of the Covana operator and take the cover off.

  • Page 10: Limit Switch Adjustment

    Note: The UP & DOWN limits are factory adjusted and there is no need for re-adjustment. If adjustments are required to ensure the Covana roof does not come into contact with its sur- roundings while elevating, the UP direction may be decreased. Never change the factory set- tings of the DOWN limits or increase the UP limit.
  • Page 11 WARNING RISK OF INJURY DISCONNECT OR TURN OFF ALL POWER SUPPLY BEFORE STARTING ANY INTERVENTION ON THE COVANA. Disconnect or turn power off. Remove the four screws at the bottom of the operator and take the cover off. Use 1/2" or 1.3 cm hexagon socket wrench to operate the operator by turning the input shaft.
  • Page 12 WIRING & SCHEMATIC DIAGRAM – 120VAC, 60HZ OPERATOR (NORTH AMERICA)
  • Page 13 WIRING & SCHEMATIC DIAGRAM - 220VAC, 50HZ OPERATOR (EUROPE)

  • Page 14: Installation

    Before uncrating the unit, make sure there is no apparent damage to the crate. In case of suspicious damage, take photos. If any damage is discovered, call customer service at Covana at 1- 877-278-8010. Using the screwdriver bit included in the hardware kit, unscrew and remove the wood reinforcements.
  • Page 15 Remove the two wood spacers located between one holding the post vertical. Handle and carry the the posts and the COVANA EVOLUTION cover assembly so that the posts are straight and box.
  • Page 16 Remove the COVANA EVOLUTION panel box ASSEMBLING from the crate. Part I - Posts Install the feet on the two single posts using two bolts and two nuts. The bolts need to be inserted into the holes from the shaft side.
  • Page 17 Link the motor side posts with the front assembly Part II – Cover by sliding the driveshafts on to square drive shafts located at the bottom of each posts. WARNING IMPORTANT: DO NOT over tighten bolts. Power tools MUST NOT be used. S.S. Bolts will break under too much torque.
  • Page 18 Lubricate the top and bottom on one edge of the Insert the remaining cover panel into the escape hatch panel and insert one I beam, the C-channels by repeating step 9. wider flat part going towards the bottom. Using 1/4” x 1/2” bolts, fasten the I-beam to the I-to-C connector.
  • Page 19 Install the sleeves on all four posts. Install the escape hatch and the post caps. The Covana should now be raised up into the air to Install the corner brackets on each post. Fasten ensure everything runs smoothly. the bracket to the cover with the M6 screws first.
  • Page 20 PART IV – APPLYING THE SEAL Once the Covana has been fully assembled, elevate 6. Test by lowering the cover again to ensure that the the cover using the key switch and remove the foam seal makes contact on the entire perimeter. If spacers.
  • Page 21 Made in Canada by Canimex www.covana.com PATENTED CANADA 2,532,429 US 11/162,557 UK 0515168.3 AUSTRALIA 2006200251...
