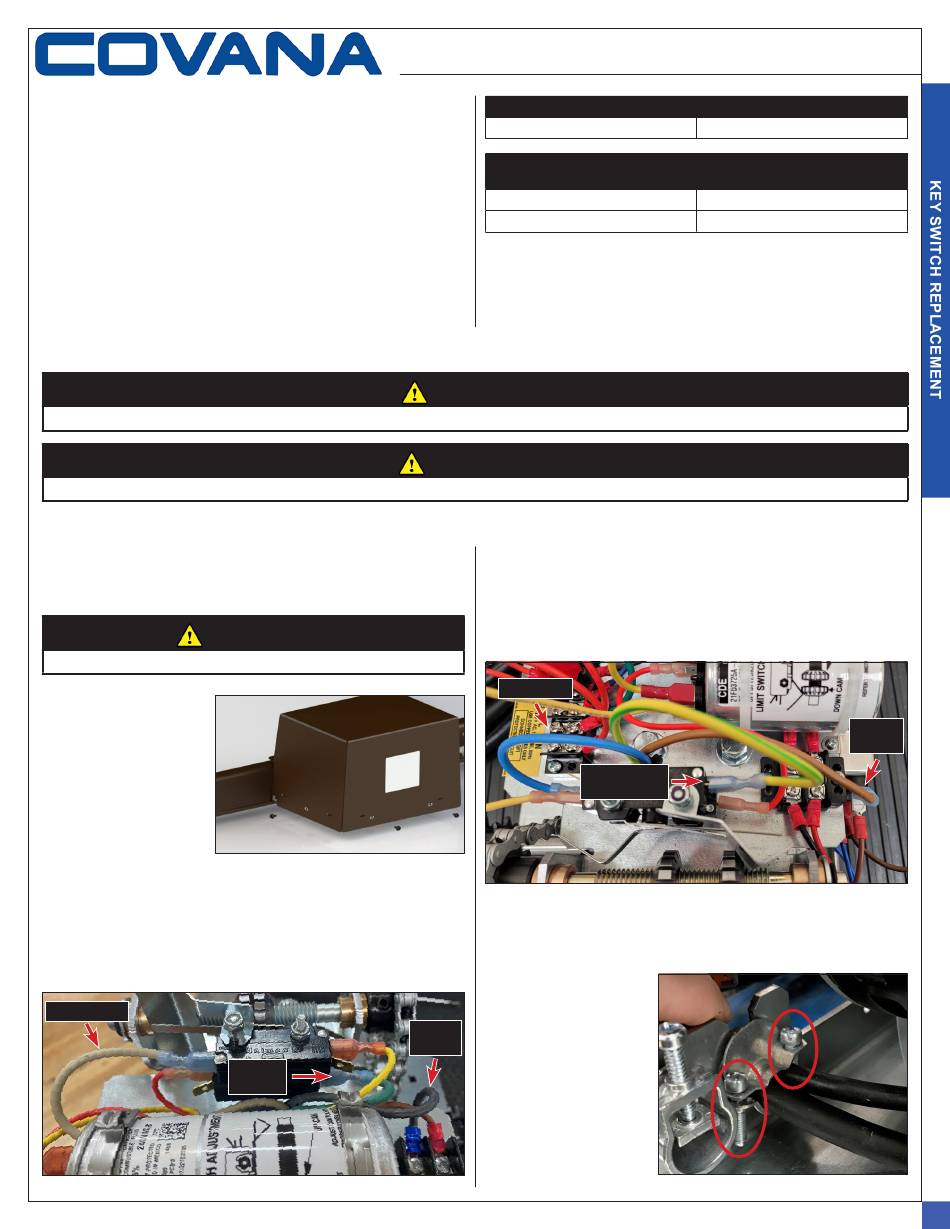

COVANA EVO Replacement Procedure

PRODUCT MODELS
(North America & Europe)
● Evolution cover
● Oasis Cover
PURPOSE OF THE REPAIR PROCEDURE
This repair procedure should be performed if the key switch assembly
needs to be replaced on the Evolution or Oasis spa cover.
PREPARATION
● Gather the required tools, as seen in the table at right.
● Make sure the parts kit is complete and that parts have not been
damaged during transport. Call your local dealer if parts need to
be replaced.
Do not use power tools, some parts are fragile and may break under too much torque.
This procedure must be performed by a certified Covana installer.
STEP BY STEP PROCEDURE
A- REMOVING DEFECTIVE KEY SWITCH ASSEMBLY
WARNING
Cut power off at the breaker panel.
1) Remove the four
screws holding the
operator cover in
place. Lift the cover
and set it aside.
2) North American model:
Disconnect the black, white, and green wires (see image
2-A).
Note where the wires are connected to make it easier
to reconnect them later on.
White wire
EVO - OASIS ― KEY SWITCH W/CABLE REPLACEMENT PROCEDURE
image 1
Black
Green
wire
image 2-A
COVANA.COM
TOOLS REQUIRED
Flat blade screwdriver
PARTS KIT NO. 192874 or 244783 (NORTH AMERICA)
NO. 203105 (EUROPE)
1 x Key switch
1 x Harness
Version française à la page 3.
CAUTION
WARNING
European model:
Disconnect the blue, green-yellow, and brown wires (see
image 2-B).
Note where the wires are connected to make it easier
to reconnect them later on.
Blue wire
yellow wire
3) All models:
wire
Loosen
screws from the
metal compression
connector.
Phillips screwdriver
1 x Rubber cap
2 x Key
Green-
both
Brown
wire
image 2-B
image 3
