COVANA EVOLUTION Replacement

PRODUCT MODELS
● Evolution Cover with G3 Posts only
● Oasis Cover with G3 Posts only
PURPOSE OF THE REPAIR PROCEDURE
This repair procedure should be performed if a red alignment bracket
needs to be replaced on the Evolution or Oasis spa cover.
PREPARATION
● The cover must be closed.
● Make sure the parts kit is complete and that parts have not been
damaged during transport. Call your local dealer if parts need to
be replaced.
● Gather the required tools, as seen in the table at right.
Do not use power tools, some parts are fragile and may break under too much torque.
This procedure must be performed by a certified Covana installer.
Keep the key out of the key switch socket at all times. The certified Covana installer must keep control of the key during the
repair procedure. Derogation from this directive could cause serious injury or damage the cover.
All images shown are for illustration purpose only. Actual product may vary due to the different models this procedure is
intended for.
STEP BY STEP PROCEDURE
SCENARIO #1- ALIGNMENT BRACKET
UNINTENTIONALLY REMOVED
NOTE

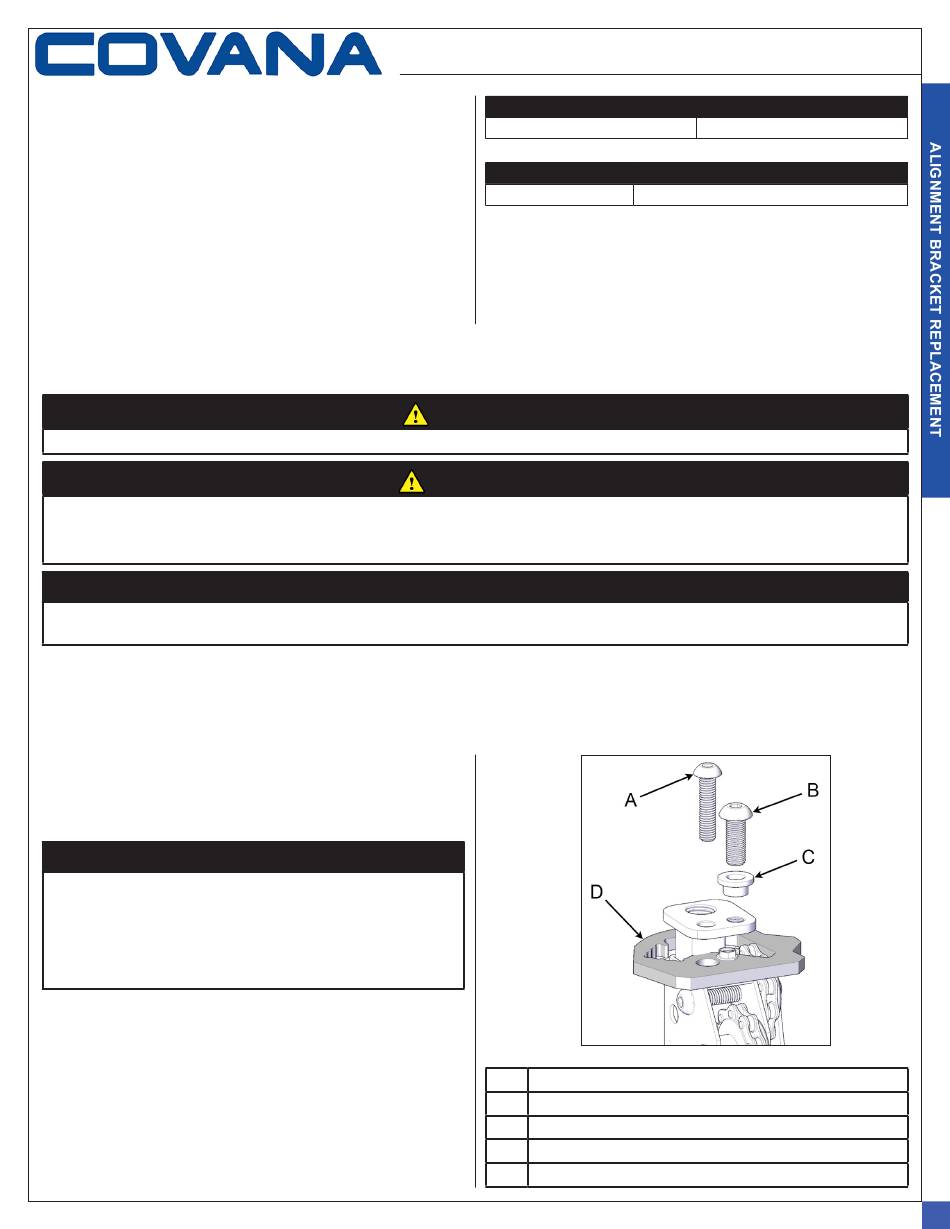

If the alignment bracket (D in image 1) has been removed
by mistake (e.g., while unpacking the cover from the crate),
continue the installation without the bracket until it is time
to remove the jack lock screws, right before sliding the
sleeves over all four jacks. Then, follow the instructions
below.
1) Once all the drive shafts are installed, the jack lock screws
located at the top of the non-motor-side jacks can safely
be removed. Remove the M8 x 50 mm jack lock screws (A
in image 1) and keep them for future use.
2) Unscrew the 3/8" x 1" socket screw (B in image 1) with a
7/32" Allen key on the top of all four jack assemblies. Set
the screws and bushings (C in image 1) aside.
EVOLUTION - OASIS ― ALIGNMENT BRACKET REPLACEMENT
TOOLS REQUIRED
7/32" Allen key
PARTS KIT NO. 233461
4 x Alignment bracket
Version française à la page 4.
CAUTION
WARNING
NOTE
ID DESCRIPTION
A M8 x 50 mm Jack lock screw
B 3/8" x 1" Socket screw
C Bushing
D
Alignment bracket (Red)
COVANA.COM
Robertson screwdriver
4 x 10-24 x 1/2" Slotted hexagonal screw
image 1
