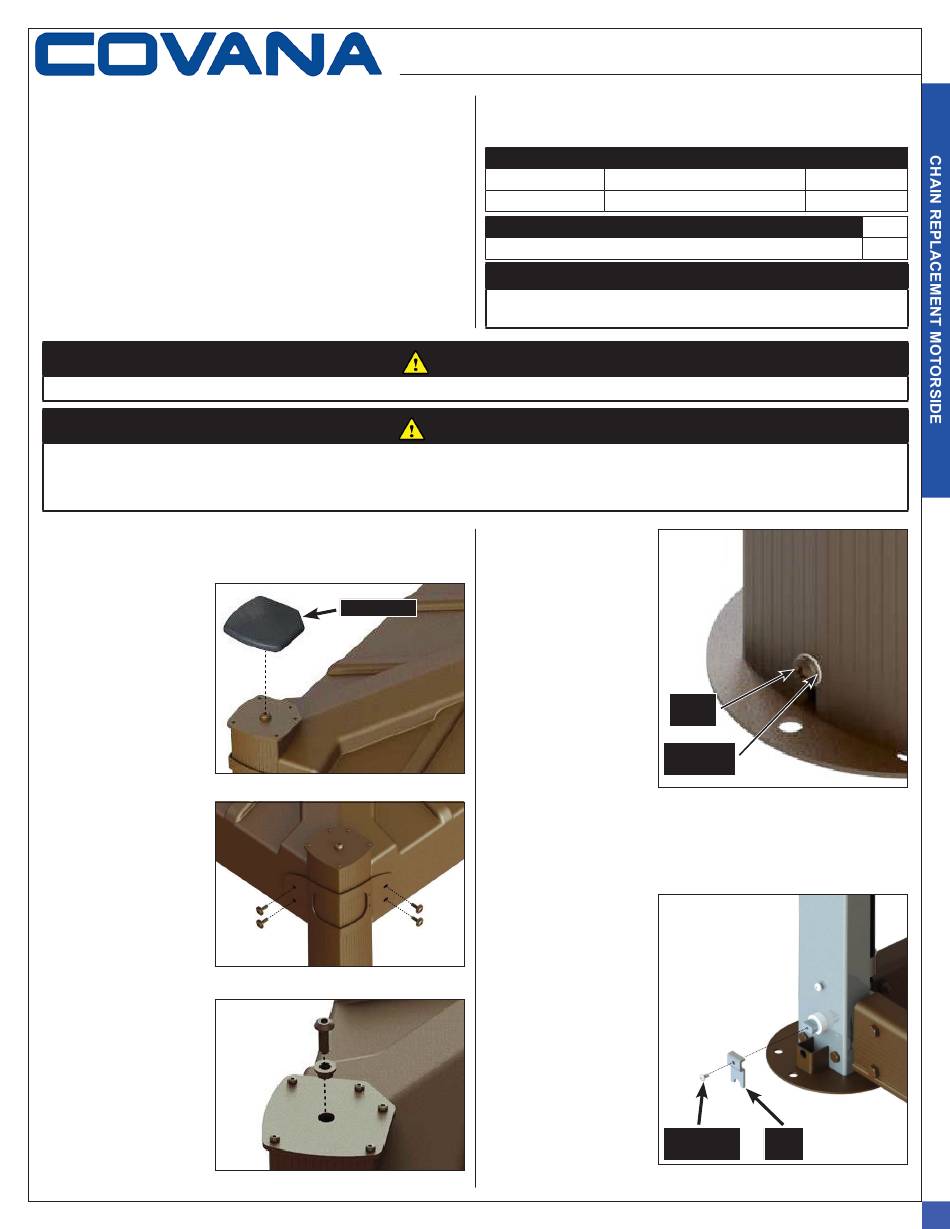

PURPOSE OF THE REPAIR PROCEDURE
This repair procedure should be performed if the chain between the
motor and the jack needs to be replaced on the Evolution or Oasis
spa cover.
PREPARATION
●
The cover must be closed.
●
Gather the required tools, as seen in the table at right.
Version française à la page 5.
Do not use power tools, some parts are fragile and may break under too much torque.
This procedure must be performed by a certified Covana installer.
Keep the key out of the key switch socket at all times. The certified Covana installer must keep control of the key during the
repair procedure. Derogation from this directive could cause serious injury or damage the cover.
STEP BY STEP PROCEDURE
A- REMOVING DEFECTIVE CHAIN
1) Remove the rubber
cap
from
each
post.
2) Remove the four
M6 x 20 mm bolts
and 5/16" painted
metal
washers
from each post to
separate the cover
from its posts.
Do not discard!
Leave the bracket
attached to the
sleeve.
3) Remove the 3/8-24
x 1" Allen bolt with
a 7/32" Allen key
from each post.
Do not discard!
EVO - OASIS ― CHAIN REPLACEMENT MOTORSIDE PROCEDURE
●
Make sure the parts kit is complete and that parts have not
been damaged during transport. Call your local dealer if parts
need to be replaced.
TOOLS REQUIRED
7/32" Allen key
Phillips screwdriver Flat blade screwdriver
PARTS KIT NO. 226526 (short) OR 226527 (long)
Chain 189202 (short) OR 194697 (long)
All images shown are for illustration purpose only. Actual product
may vary due to the different models this procedure is intended for.
CAUTION
WARNING
Rubber cap
4) Loosen the Phillips
M6 x 20 mm screw
at the bottom of
each post.
Do not remove
the screw.
image 1
5) Slide the sleeves upward to expose the jack. Set them
aside in a safe location. If both chains need to be replaced,
identify the sleeves to ensure they will not be swapped.
6) If the cover is from
March
earlier: For each
image 2
post, put the jack
lock back in its
original place and
install the M4 x
8 mm screw to
secure it. Turn the
shaft with the key
to align it with the
bracket if need be.
image 3
COVANA.COM
1/2" socket wrench and spanner
NOTE
M6
screw
1/4" nylon
washer
2019
or
M4 x 8 mm
screw
Measuring tape
48" long level
QTY
2
image 4
Jack
lock
image 5
1
