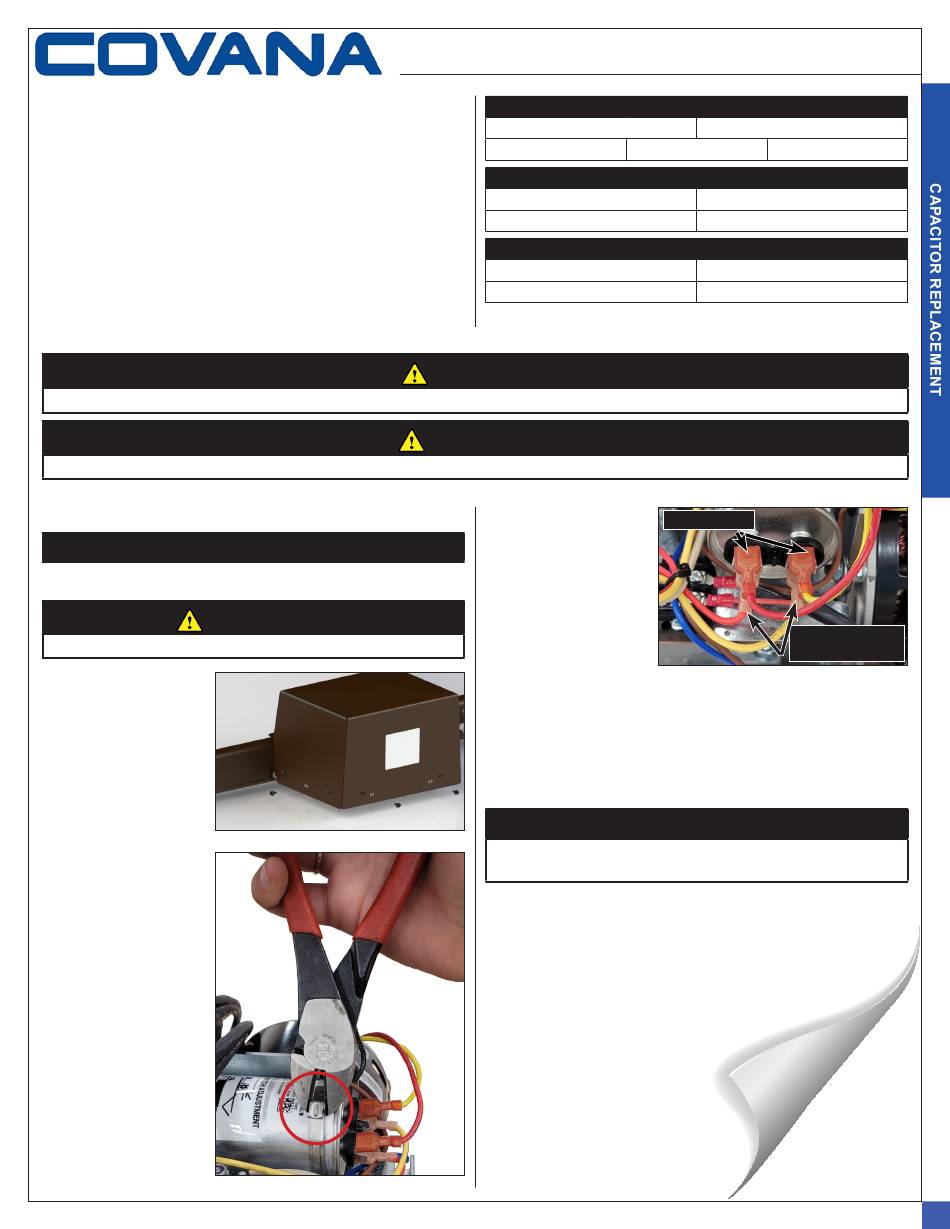

COVANA EVO Replacement Procedure

PRODUCT MODELS
(North America & Europe)
● Evolution cover
● Oasis Cover
PURPOSE OF THE REPAIR PROCEDURE
This repair procedure should be performed if the capacitor needs to
be replaced on the Evolution or Oasis spa cover.
PREPARATION
● Gather the required tools, as seen in the table at right.
● Make sure the parts kit is complete and that parts have not been
damaged during transport. Call your local dealer if parts need to
be replaced.
Do not use power tools, some parts are fragile and may break under too much torque.
This procedure must be performed by a certified Covana installer.
STEP BY STEP PROCEDURE
NORTH AMERICAN MODEL
A- REMOVING THE DEFECTIVE CAPACITOR
WARNING
Cut power off at the breaker panel.
1) Remove the four
screws holding the
operator cover in
place. Lift the cover
and set it aside.
2) Using cutting pliers,
remove both pinch
clamps holding the
defective capacitor
in place.
EVO - OASIS ― CAPACITOR REPLACEMENT PROCEDURE
TOOLS REQUIRED
Flat blade screwdriver
Cutting pliers
PARTS KIT NO. 221430 (North America)
1 x Capacitor
1 x Mounting bracket
PARTS KIT NO. 221415 (Europe)
1 x Capacitor
2 x Capacitor support
Version française à la page 4.
CAUTION
WARNING
3) Disconnect
four wires from the
capacitor; 1 red
and 1 yellow going
to the motor, and
1 red and 1 yellow
going to the limit
switches. Discard
the
capacitor
pinch clamps.
Note where the wires are connected to make it easier
to reconnect them later on.
4) Remove both screws holding the capacitor mounting
bracket in place.
image 1
If the current mounting bracket is still in good condition, it
can be left in place to be used with the new capacitor.
5) Discard the mounting bracket and screws.
image 2
COVANA.COM
Phillips screwdriver
Ear clamp pliers
2 x Pinch clamp
2 x 6-32 x 3/8" Screw
2 x Cable tie
2 x 6-32 x 3/8" Screw
the
Motor wires
defective
and
NOTE
Long nose pliers
Limit switches
wires
image 3
EUROPEAN
PROCEDURE
ON PAGE 3
