EX-1594HMS

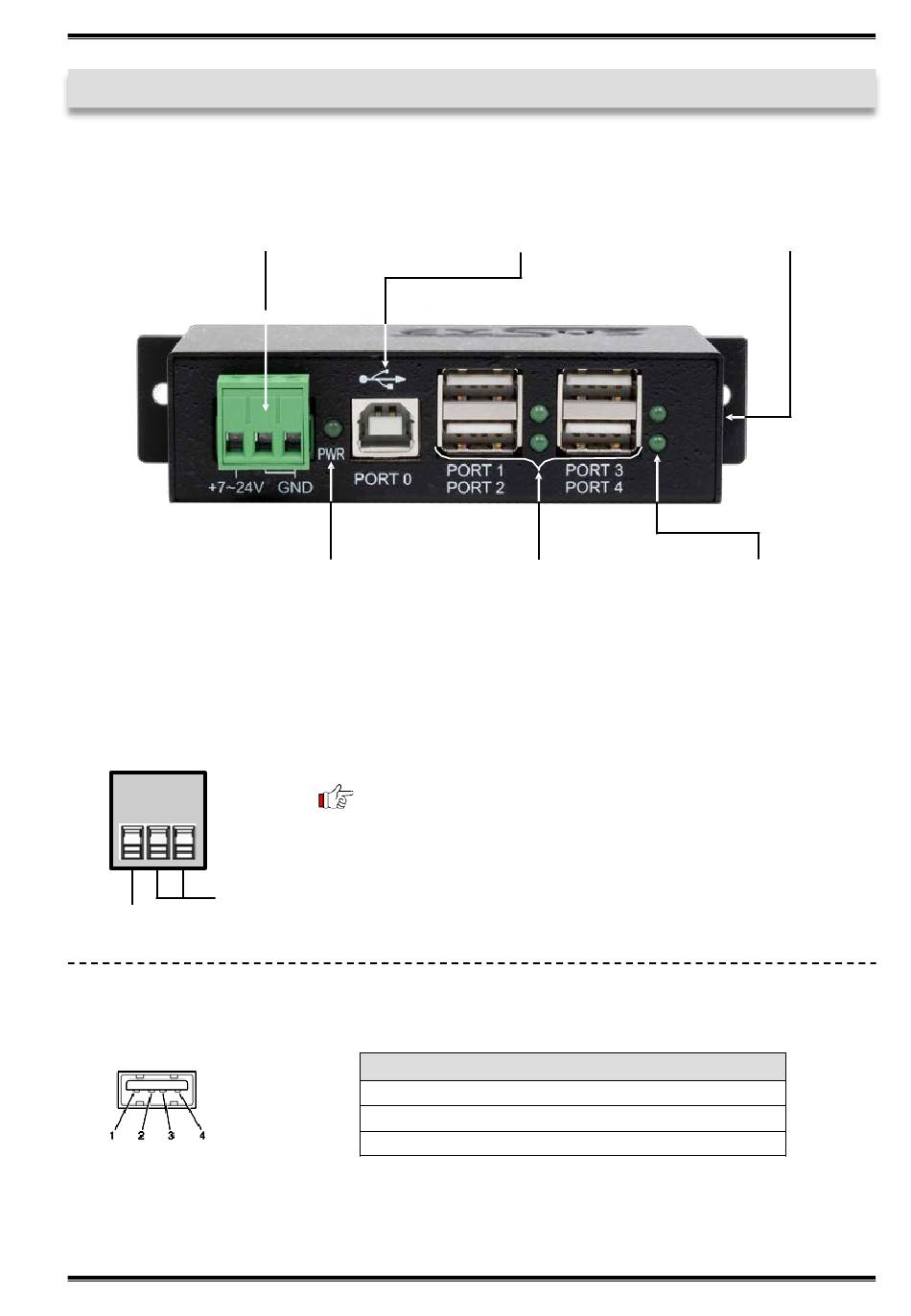

3. Layout, Connections & Jumpers
3.1 Layout
7-24V T-Block for optional
external Power Supply
3.2 Connections
+7V - 24V T-Block:
GND (Ground)
+7V - 24V
USB 2.0 A-Port:
© Copyright 2024 by EXSYS Vertriebs GmbH. All Rights Reserved
Upstream B-Port
Power LED
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
USB 2.0 A-Port
Pin
1
2
1x USB 2.0
4x USB 2.0
Downstream A-Port
Signal Pin
VCC 3
DATA- 4
11
English
Reset Button
Status LED for
each Port
Signal
DATA+
GND
