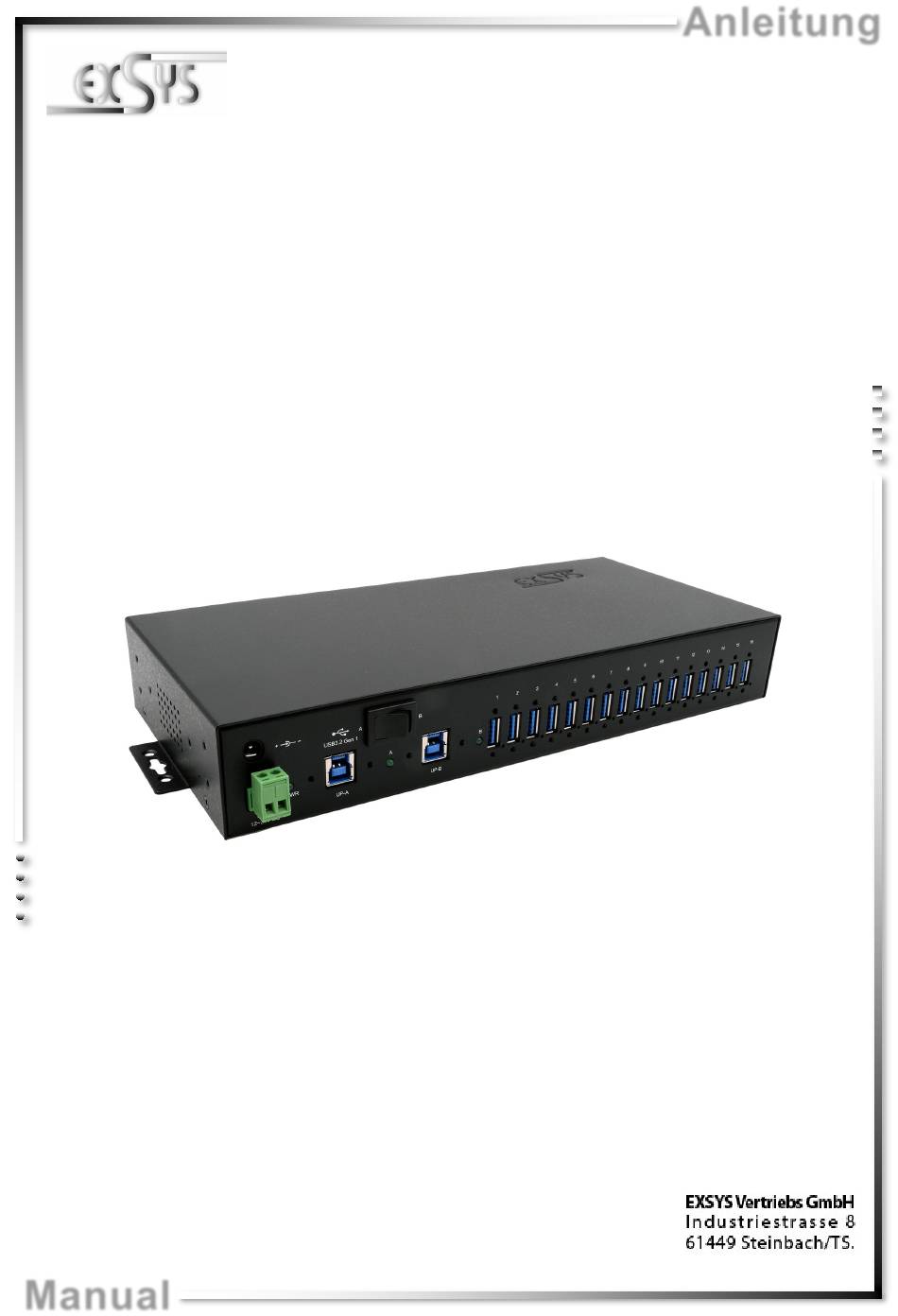

- Page 1 Anleitung EX-1116HMVS 16-Port USB 3.2 Gen 1 Metall HUB mit 1,5A Strom pro USB Port und 15KV ESD Überspannungsschutz für Trägerschiene 16-Port USB 3.2 Gen 1 Metal HUB with 1,5A power for each USB port and 15KV ESD Surge Protection for DIN-Rail Vers.
-
Page 2: Table Of Contents
Extent of Delivery ······························································································· 9 Layout & Connections ··················································································· 10-11 Layout ·······················································································································10 Connections ·········································································································· 10-11 Hardware Installation ························································································· 12 Driver Installation ······························································································ 13 Cleaning ········································································································· 13 Technical Information ························································································ 14 Technical Drawing ···························································································· 14 © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1116HMVS ist ein USB 3.2 Gen 1 Metall HUB für bis zu sechzehn Endgeräte. Der Hub ist mit 16 Ports für Endgeräte und 1 Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Ports von 1.1 bis 3.2. -
Page 4: Aufbau & Anschlüsse
Downstream A-Buchse pro Port Rückseite: 3.2 Anschlüsse +12V bis +24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +12V - 24V © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 5 StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.2 Gen 1 B-Buchse: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Achtung! Stecker niemals umgekehrt oder mit VBus Gewalt einstecken. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 6: Hardware Installation
Ihnen nur eine generelle Anleitung zum Einbau des EX-1116HMVS geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Installieren Sie den EX-1116HMVS an die Wand, mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene oder mit den mitgelieferten Montagewinkel in einem 19“ Rack. -
Page 7: Treiber Installation
EX-1116HMVS Deutsch 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1116HMVS auto- matisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgende Einträge sehen: Sind diese oder ähnliche Einträge vorhanden, ist der USB Hub richtig installiert. -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +12 bis +24 Volt Abmessung: 293,00 x 140,60 x 43,00 mm Gewicht: 1800g 8. Technische Zeichnung © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description

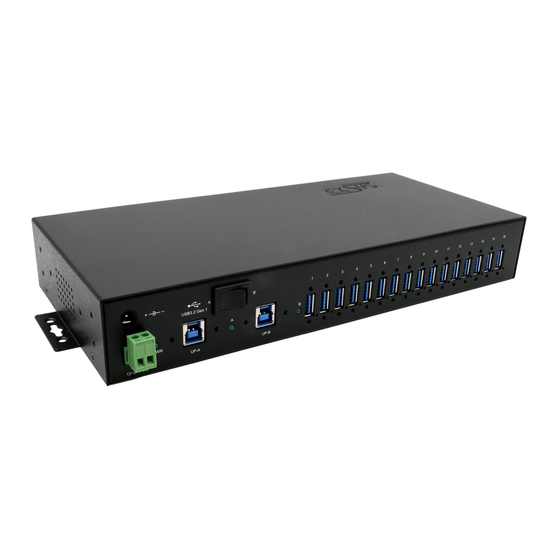

1. Description The EX-1116HMVS is a USB 3.2 Gen 1 metal HUB for up to sixteen end devices. The hub is equipped with 16 ports for end devices and 1 port for connection to PC. It supports all USB ports from 1.1 to 3.2 and each USB port on the EX-1116HMVS is additionally screwable. -
Page 10: Layout & Connections
Upstream B-Port Downstream A-Port per Port Back Side: 3.2 Connections +12V to +24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +12V - 24V © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 11 Never plug in with force or in wrong direction. USB 3.2 Gen 1 B-Port: GND_DRAIN StdB_SSTX+ StdB_SSTX + StdB_SSTX - StdB_SSTX - Attention! Never plug in with force VBus or in wrong direction. © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 12: Hardware Installation
Because there are large differences between PC’s, we can give you only a general installation guide for the EX-1116HMVS. Please refer your computer’s reference manual whenever in doubt. 1. Install the EX-1116HMVS on the wall, on a DIN-Rail using the supplied DIN-Rail kit or in a 19" rack using the supplied mounting angles. -
Page 13: Driver Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
32° to 131°Fahrenheit Storage Temperature: -40° to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +12 to +24 Volt Size: 293,00 x 140,60 x 43,00 mm Weight: 1800g 8. Technical Drawing © Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved...
