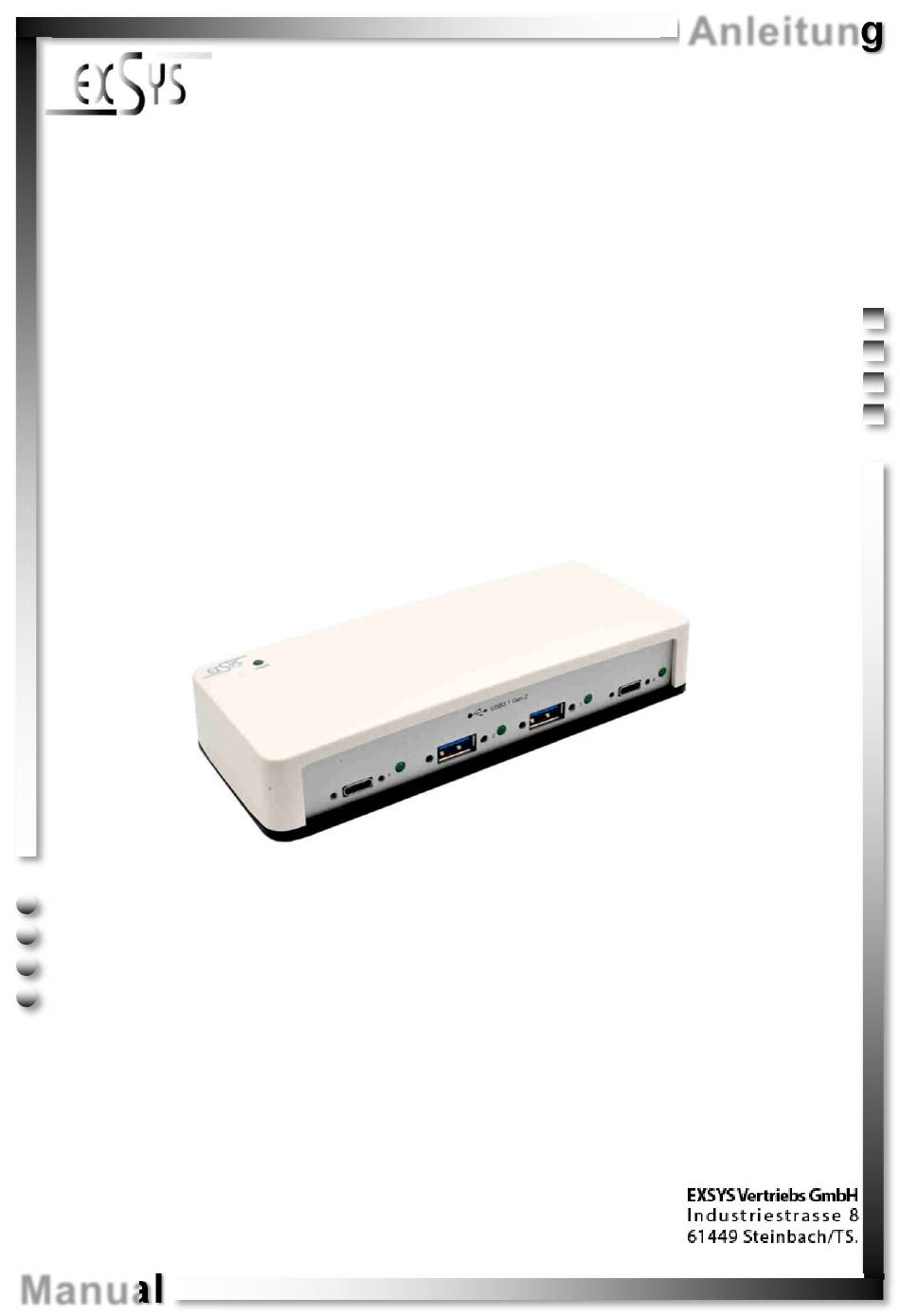

- Page 1 Anleitung EX-1250V 2 A-Port & 2 C-Port USB 3.1 (Gen2) Plastik HUB mit 2,1A Strom pro Port 2 A-Port & 2 C-Port USB 3.1 (Gen2) Plastic HUB with 2,1A power for each port Vers. 1.0 / 15.11.17 Manual...
-
Page 2: Table Of Contents
3.1 Layout ····································································································· 10 3.2 Connections ························································································ 10-11 3.3 LED‘s ······································································································ 11 Hardware Installation ······································································ 12-13 Driver Installation ················································································ 13 Cleaning ··························································································· 13 Technical Information ·········································································· 14 Technical Drawing ·············································································· 14 © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1250V ist ein USB 3.1 (Gen2) Plastik HUB für bis zu 4 Endgeräte. Der Hub ist mit 2 A-Ports und 2 C-Ports für Endgeräte und 1 C-Port für den Anschluss an den PC ausge- stattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Jeder Anschluss an der EX- 1250V ist zusätzlich verschraubbar. -
Page 4: Aufbau, Anschlüsse & Led's
ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +7V - 24V +7-24V Buchse: Achtung!!! Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil! © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Led's
3.3 LED‘s Status LED‘s: LED Status LED Funktion Kein USB Endgerät angeschlossen Langsames Blinken USB 2.0 Modus Schnelles Blinken USB 3.1 (Gen1) Modus Ständig An USB 3.1 (Gen2) Modus © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 6: Hardware Installation
1250V geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. 1. Falls Sie die EX-1250V an einer Wand montieren möchten oder die EX-1250V auf einer Trägerschiene installieren wollen, befolgen Sie als erstes die Punkte 5, 6 & 7 auf Seite 6-7, bevor Sie mit Punkt 2 fortfahren. -
Page 7: Treiber Installation
4. Hardware Installation 7. Installation der EX-1250V auf einer Trägerschiene. 5. Treiber Installation Alle Betriebssysteme Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1250V automatisch und installiert diesen. ÜBERPRÜFEN DES INSTALLIERTEN TREIBER Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgen- de Einträge sehen:... -
Page 8: Technische Daten
0° bis 55° Celsius Lagertemperatur: -20° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +7 bis +24 Volt Abmessung: 151,10 x 62,00 x 34,00 mm Gewicht: 420g 8. Technische Zeichnung © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 9: Description

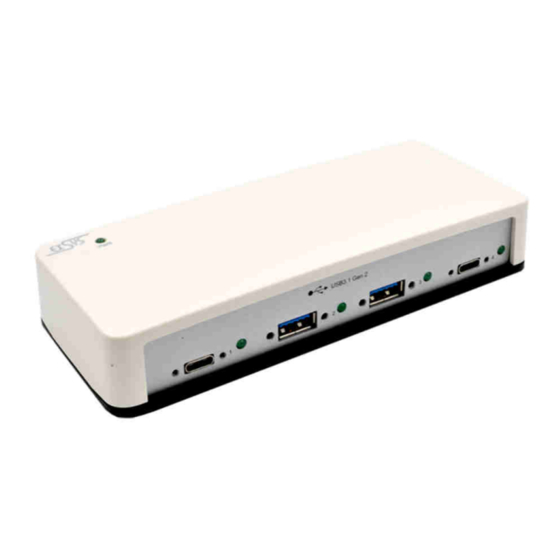

English 1. Description The EX-1250V is a plug & play high-speed USB 3.1 (Gen2) plastic hub for 4 USB devic- es. The EX-1250V provides 2 A-Ports and 2 C-Ports for USB devices and 1 uplink C- Port for PC. It supports all USB connections from 1.1 to 3.1. All ports can fix with screw lock. -
Page 10: Layout, Connections & Led's
3.2 Connections +7V-24V T-Block: ATTENTION!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +7V - 24V +7-24V Connector: Attention!!! Use only with the optional power supply! © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 11: Led's
3.3 LED‘s Status LED‘s: LED Status LED Function No USB Device connected Slow Flash USB 2.0 Mode Fast Flash USB 3.1 (Gen1) Mode Steady On USB 3.1 (Gen2) Mode © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Hardware Installation
Please refer your computer’s reference manual whenever in doubt. 1. If you want to install the EX-1250V on a wall or on a DIN-RAIL, then please go ahead with the steps 5, 6 & 7 on page 12-13 before proceeding to step 2. -
Page 13: Driver Installation
In the area of the connectors please make sure that no fibres from the cloth re- main in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 14: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -20°F to 167°Fahrenheit Rel. Humidity: 5% to 95% Power: +7 to +24 Volt Size: 151,10 x 62,00 x 34,00 mm Weight: 420g 8. Technical Drawing © Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved...
