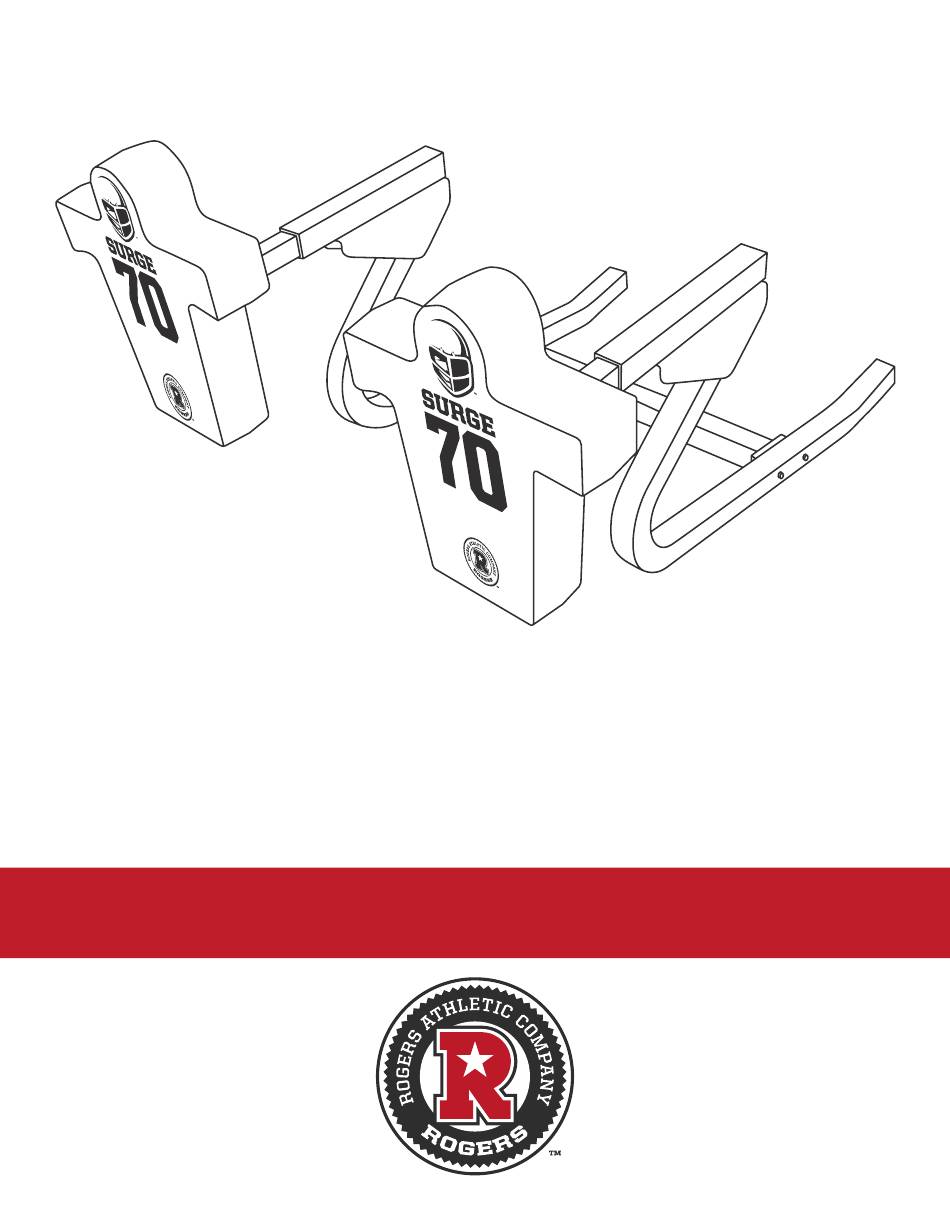

- Page 1 ASSEMBLY INSTRUCTIONS LEV SLED Updated: 11/09/23...
- Page 2 The Rogers Athletic LEV Sled has been designed and manufactured with safety, performance and dependability as top priorities, making it easy to operate and maintain. The care you give your LEV Sled will greatly determine your satisfaction with its performance and service life.
- Page 3 Unit is designed for training multiple offensive and defensive drills with proper technique. Do not use LEV Sled for anything other than its approved purpose. l Always wear a helmet when training with the LEV Sled.
- Page 4 Tools Needed Impact Driver 15/16” Impact Socket Screwdriver (any variety) 15/16” Box Wrench or Socket Optional Although an impact driver is recommended for assembly a set of (QTY 2) 15/16” box wrenches can be used if no impact driver is avaialble.
- Page 5 Hardware List 5/8” X 6” Bolt Sled Size Sled Size Sled Size Sled Size 1-Man 3-Man 5-Man 7-Man 2-Man 4-Man 6-Man Sled Size Sled Size 5/8” Nut 5/8” Washer 1-Man 1-Man 2-Man 2-Man 3-Man 3-Man 4-Man 4-Man 5-Man 5-Man 6-Man 6-Man 7-Man 7-Man...
- Page 6 STEP 1 (1-Man ONLY) For a 2-7-Man sled skip to step 3 For a 1-Man sled, begin by laying the LEV runner on its side. Line up the holes from the LEV Outrigger with the holes on the runner and insert (QTY 2) 5/8”x6”...
- Page 7 STEP 2 (1-Man ONLY) Fit the second outrigger over the bolts and secure with (QTY 2) 5/8” washers and (QTY 2) 5/8” nuts. SKIP TO STEP 5...
- Page 8 STEP 3 (2-7-Man) Connect LEV runner to the connection link using (QTY 2) 5/8”x6” bolts, (QTY 2) 5/8” nuts, and (QTY 4) 5/8”x6” washers.
- Page 9 5/8”x6” bolts, 4/8” washers, and 5/8” nuts. Repeat until LEV sled is complete. NOTE: The outside most sled runners on any configuration of 2-7-Man should have connecting bolts inserted from the outside. This will place the threaded ends pointing to the...
- Page 10 DO NOT REMOVE PAD PIN HOLE POSITION STEP 5 The LEV ram Unit comes with (3) nuts pre-installed on the threaded rod at the end of the spring. Remove ONLY the first 2 nuts leaving the 3rd nut in place. Insert the ram unit into sled head unit.
- Page 11 STEP 6 Use Fastpin (tethered to your pad) to fasten pad to the ram unit.
- Page 12 Need Help? For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available. Customer service hours are Monday through Friday from 8:00 a.m. to 5:00 p.m. Eastern Standard Time. service@RogersAthletic.com (800) 457-5337 Rogers Athletic Company 3760 W.
