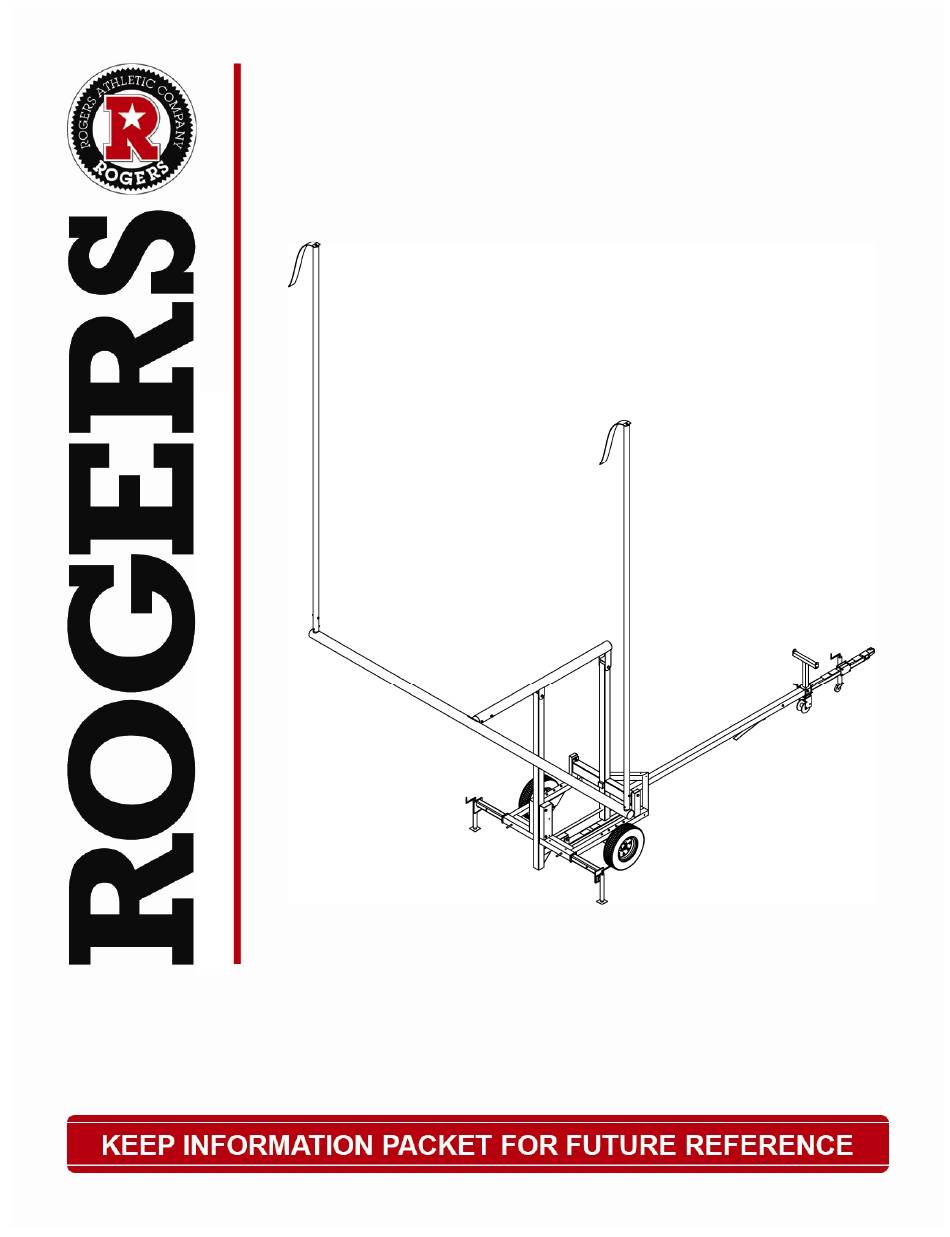

Product Information Packet
Product Information Packet
Product Information Packet
Product Information Packet
Product Name: Portable
Product Name:
Product Name:
Product Name:
Product Part Numbers: 410353, 410358
Product Part Numbers: 410
Product Part Numbers: 410
Product Part Numbers: 410
Portable Goal Post
Goal Post
Portable
Portable
Goal Post
Goal Post
353, 410358
353, 410358
353, 410358
0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rogers 410353
Summary of Contents for Rogers 410353
- Page 1 Product Name: Portable Portable Goal Post Goal Post Product Name: Product Name: Portable Portable Goal Post Goal Post Product Part Numbers: 410 Product Part Numbers: 410353, 410358 353, 410358 Product Part Numbers: 410 Product Part Numbers: 410 353, 410358 353, 410358...
-
Page 2: Table Of Contents
If your manual becomes lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us. -
Page 3: General Safety Rules
Inspect equipment prior to use. DO NOT use if it appears damaged or inoperable. Inspect belt for wear or fraying. Replacement belt can be obtained from Rogers Athletic. NOTE: to avoid damage to equipment, lock the Goal Post down in storage position if winds over 40mph are expected. -
Page 4: Symbols
Symbols Symbols Symbols Symbols Safety Alert: Precautions that involve your safety. 40mph wind warning: In the event of winds 40mph or greater, lock Goal Post down in the storage position. Read the Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product. -
Page 5: Technical Specifications
Rogers Athletic Field Equipment Rogers Athletic Field Equipment Specifications Specifications Rogers Athletic Rogers Athletic Field Equipment Field Equipment Specifications Specifications Portable Goal Post Portable Goal Post Portable Goal Post Portable Goal Post Weight: 23’4” = 1200 lbs 18’6” = 1170 lbs Height: 30’... -
Page 6: User Instructions
49” to leading edge of rear goal line Position in approximate location of use and disconnect from vehicle. If locating at a goal line, measure 49” from the leading edge of the goal line to the front of the Goal Post trolley frame. Lower trailer jack. Take crossbar from storage position and insert in post (do not bolt in place). - Page 7 Bolt a streamer to each upright. Level and bolt after uprights are attached. Tilt one side of crossbar to ground and slide upright on crossbar and bolt tight. Repeat for opposite upright. Level crossbar and secure with bolts. Check that cross bar is parallel to field’s end line before raising.
- Page 8 Pull the pin out of the stabilizer-arm sleeve and slide the arm out. Re-pin through the sleeve at the next hole in the arm. Pull the jack-assembly pin and rotate the jack perpendicular to the ground (the pin clicks back into place).
- Page 9 Raise the Goal Post into full upright position by cranking the winch at the hitch end of the trailer. Secure the support beam by pinning through both vertical tubes on the frame. Insert the fastener pin through the support beam pin. WARNING: Failure to pin the support beam as shown here could result in severe bodily injury, death and/or property damage.
-
Page 10: Maintenance
Customer Service Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. Customer service are Monday through Friday from 8:00 a.m. - Page 11 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 248-0270 Fax toll free (888) 549-9659 PIP410353...
