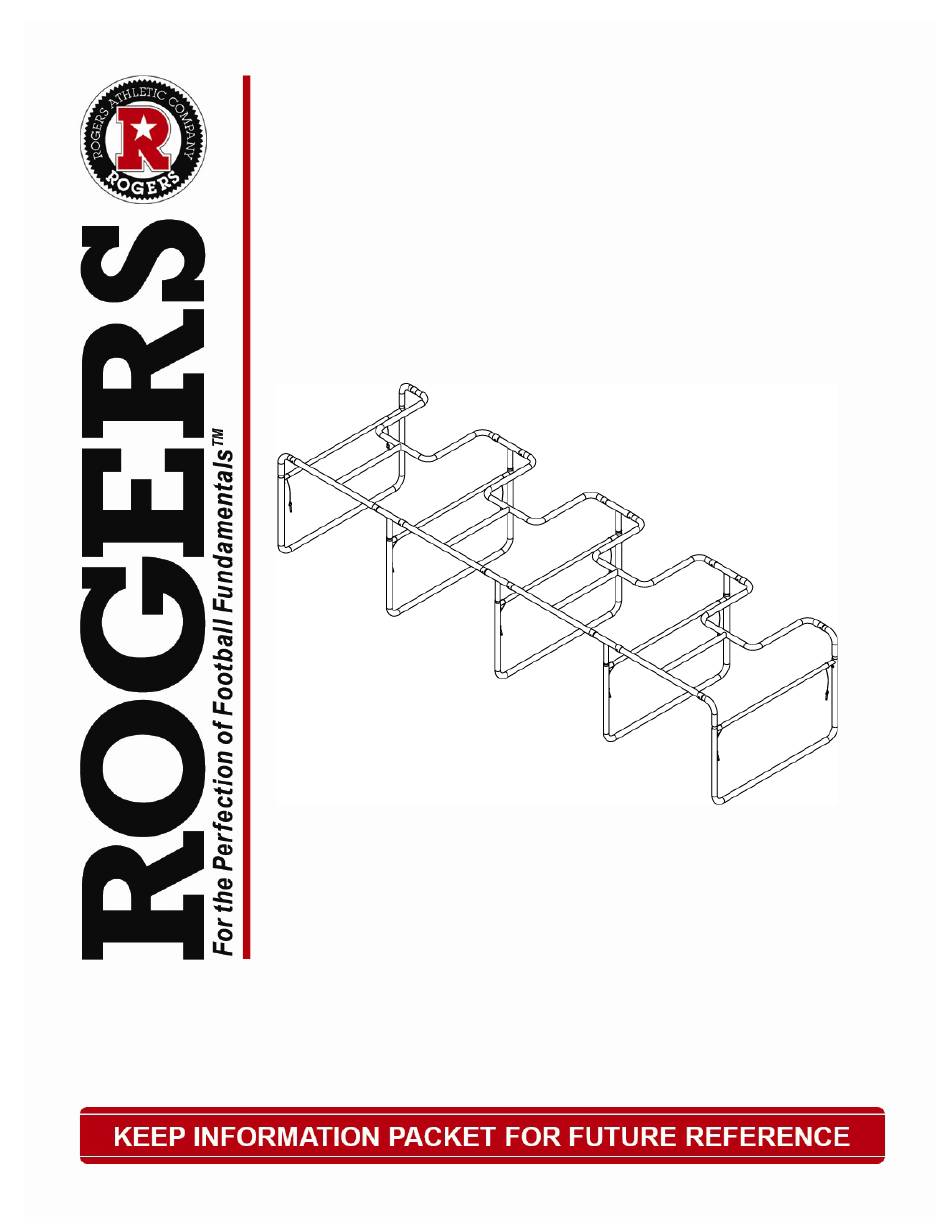

- Page 1 Product Information Packet Product Name: Oklahoma Chute Product Part Number: 410107-410111 & 410259-410260 & 410336-410339...
-
Page 2: Table Of Contents
Careful study of this manual is encouraged to obtain a thorough understanding of your new Oklahoma Chute and its functions and maintenance. If your manual becomes lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-457-5337. -
Page 3: General Safety Rules
Unit is designed for training multiple offensive and defensive drills with proper technique. Do not use Oklahoma Chute for anything other than its approved purpose. Always wear a helmet when using the Oklahoma Chute. -
Page 4: Symbols
Symbols Safety Alert: Precautions that involve your safety. Pinch Point Symbol: Failure to keep hands away from pinch points may result in personal injury. Store this equipment in a secure, controlled area: Unsupervised and/or inappropriate use of this equipment could result in serious injury. -
Page 5: Technical Specifications

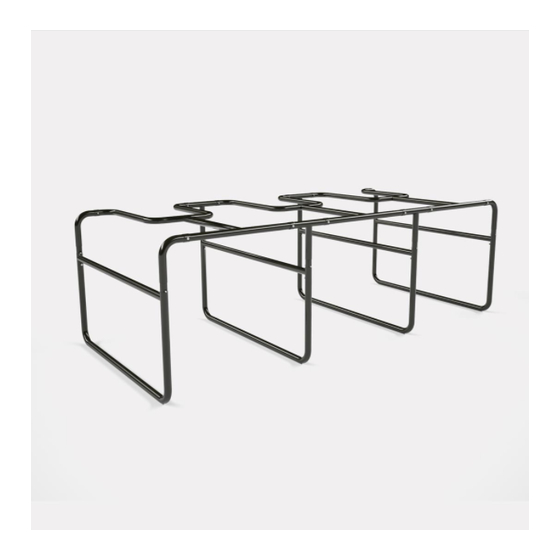

Overhead tubing keeps players low while firing off the line and allows them to raise and drive after the initial steps. Height adjusts from 41 to 51 inches. Oklahoma Chute Construction, Finish, and Hardware - Constructed of ASTM specified steel. - Baked-on powder coat finish. -
Page 6: Assembly Instructions
Note: For 2–7 man setups, only attach two elbows (on the same side) and go to step 4. Oklahoma Chute – 1-Man Place (4) Chute Elbows onto Chute Yolk. Insert (4) ¼” bolts and (4) ¼” nuts through yolk and elbows. - Page 7 2-7 Man Chute Insert (2) Chute Elbows into Chute Top. Place (2) ¼: bolts and (2) ¼” nuts through Elbow and Top. Insert (2) Chute Tee’s into Chute Top. Place (2) ¼: bolts See Step 2 for adding runners and (2) ¼” nuts through Tee and Top. Insert Chute Top into assembly from step 4.
- Page 8 Insert Assembly from Step 6 into Step 5. Place (2) ¼” bolts and (2) ¼” nuts through Top and Tee. Repeat Steps 5, 6, and 7 until Oklahoma Chute is complete. On the end, elbows will be used instead of...
-
Page 9: Maintenance
Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. - Page 10 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 457-5337 Fax toll free (888) 549-9659 PIP410107...
