- Page 1 Product Information Packet Product Name: Three-Read Machine Product Part Number: 410476 & 410677...
-
Page 2: Table Of Contents
Careful study of this manual is encouraged to obtain a thorough understanding of your new Three- Read Machine and its functions and maintenance. If your manual becomes lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-457-5337. -
Page 3: General Safety Rules
General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal Injury. SAVE THESE INSTRUCTIONS Supervision of athletes while using the equipment is recommended. Horse play such as climbing on the machine or using the machine for unintended purpose can result in injuries. -
Page 4: Symbols
Symbols Safety Alert: Precautions that involve your safety. Store this equipment in a secure, controlled area: Unsupervised and/or inappropriate use of this equipment could result in serious injury. Pinch Point Symbol: Failure to keep hands away from pinch points may result in personal injury. Do Not Climb Caution Label: To reduce risk of injury, do not climb on field equipment. -
Page 5: Technical Specifications

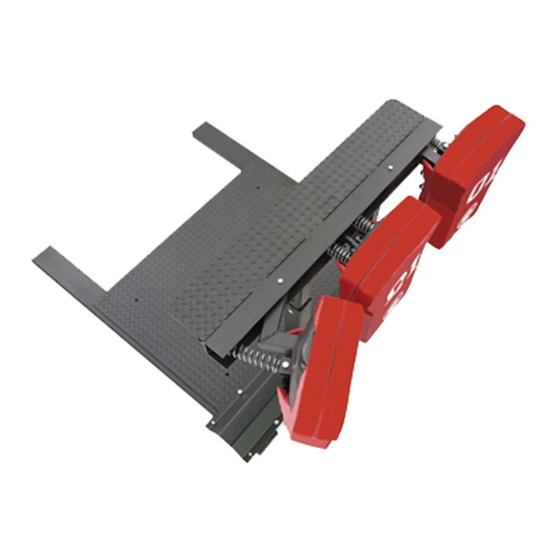

Technical Specifications Three-Read Machine (410476) Weight: 385 lbs Height: 36 - 51” Length: 77” Width: 61 - 73” Eliminates need for two live players in defensive drills. Players can react at full speed with no risky full speed contact with another player. - Page 6 Technical Specifications Three-Read Ground Mount (410677) Weight: 240 lbs Height: 38” (from ground level) Depth: 21” Width: 67 3/8” Eliminates need for two live players in defensive drills. Players can react at full speed with no risky full speed contact with another player.
-
Page 7: Assembly Instructions
Three Read Assembly Instructions At least two people needed for this step! Insert the Three Read Sub Assembly tube into the Reactor Base Sub Assembly tubes. Line up holes at desired height and fasten sub-assemblies with (2) ½” x 4” bolts, (4) ½”... - Page 8 Ground Mount Assembly Instructions The hole for setting the ground mount base should be Set ground mount base in concrete so that the top approximately 12” in diameter and 24” deep. ring fits flush with ground level. Pinch bolt Remaining assembly is the same as Steps 1 & 2 of Three Read Machine Assembly above.
-
Page 9: Maintenance
Take pads inside when not in use. Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. - Page 10 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 457-5337 Fax toll free (888) 549-9659 PIP410476...
