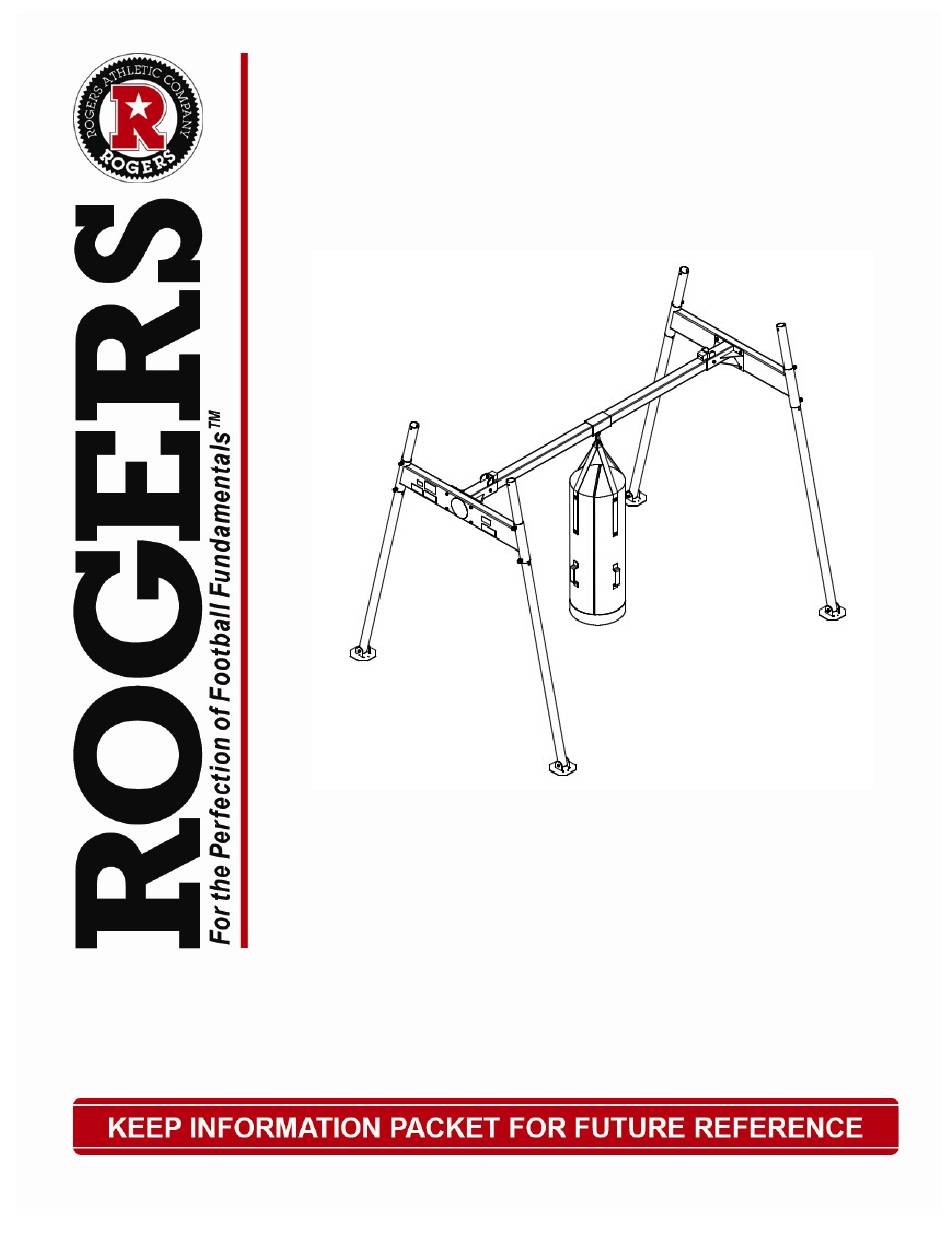

- Page 1 Product Information Packet Product Name: Big Brutus Hanging Dummy Product Part Number: 410816, (80lb dummy) or 410817 (50lb dummy) 410403 (50 lb Dummy)
- Page 2 Careful study of this manual is encouraged to obtain a thorough understanding of your new OFTM and its functions and maintenance. If your manual should become lost or destroyed, Rogers Athletics will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-457-5337.
- Page 3 BECAUSE ROGERS ATHLETICS MAINTAINS AN ONGOING PROGRAM OF PRODUCT DEVELOPMENT AND IMPROVEMENT, WE RESERVE THE RIGHT TO MAKE IMPROVEMENTS IN DESIGN OR CHANGES IN SPECIFICATIONS WITHOUT INCURRING ANY OBLIGATIONS TO INSTALL THEM ON UNITS PREVIOUSLY SOLD. General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS.
- Page 4 This Product Information Packet is an integral part of this machine. Save these instructions. If • they are lost or damaged or if you would like another copy, a copy can be downloaded from www.RogersAthletic.com Reading the Product Information Packet is recommended. Failure to read this Packet is •...
- Page 5 Symbols Safety Alert: Precautions that involve your safety Store this equipment in a secure, controlled area: Unsupervised and/or inappropriate use of this equipment could result in serious injury. Pinch Point Symbol: Failure to keep hands away from pinch points will result in personal injury Remove Hanging Dummy When Not In Use: To reduce risk of injury, remove hanging dummy when it is not in use.
- Page 6 Rogers Athletic Field Equipment Specifications Big Brutus Tackle Dummy (Part # 410816 or 410817) Weight: With 80 lb dummy 760 lbs (346 kg) With 50 lb dummy 730 lbs (331 kg) Height: 104” (265 cm) Length: 103” (262 cm) Width: 132.375”...
- Page 7 - Galvanized steel tube - Zinc-plated hardware - UHMW rollers Rogers Athletic Field Equipment Specifications Attach foot pads to leg tubes with (1) 1/2" x 4” bolts and (1) 1/2” lock nuts. Do not over tighten. Repeat for each leg.
- Page 8 Insert the leg tubes into the beam support assemblies. Position the tops of the leg tubes flush with the tops of the beam support assembly. Secure each leg with (2) 5/8” x 1 1/2" bolts. Repeat for each leg. This step will require the use of two or more people. Attach one end of the trolley tube to a leg assembly with (1) 1/2"...
- Page 9 This step will require the use of two or more people. It is possible to vary the slope or height of the assembly by loosening the 5/8” bolts on the leg assembly and raising or lowering as needed. It is recommended that the user lowers one end at a time.
- Page 10 Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package.
- Page 11 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 PIP410359 (800) 457-5337 Fax toll free (888) 549-9659...
