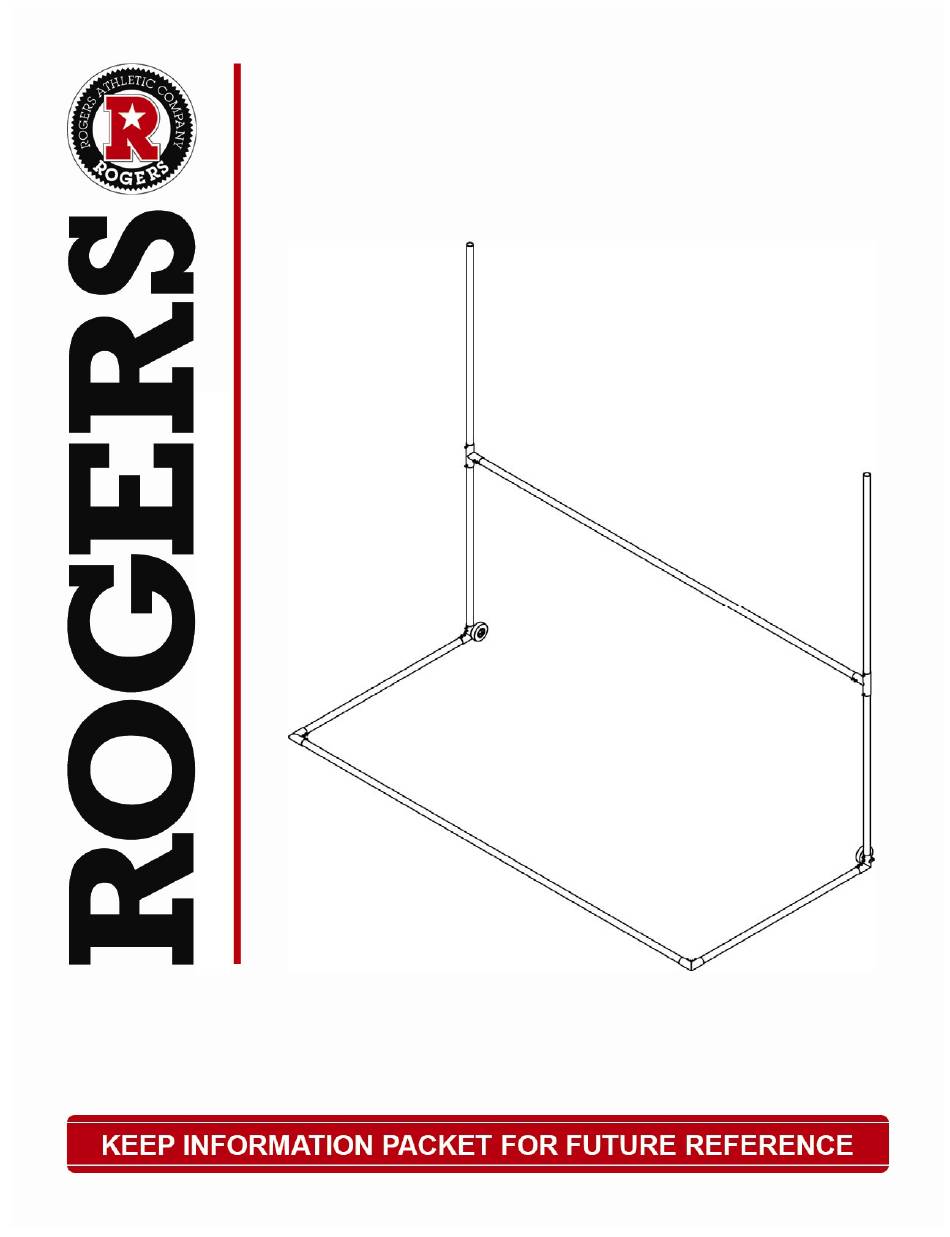

- Page 1 Product Information Packet Product Name: Portable Goal Post Product Part Numbers: 410673 & 410674...
-
Page 2: Table Of Contents
If your manual becomes lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us. -
Page 3: General Safety Rules
General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS Use field equipment in a supervised environment with proper gear. Inspect equipment prior to use. DO NOT use if it appears damaged or inoperable. NOTE: to avoid damage to equipment, disassemble the Portable Goal Post if winds over 30mph are expected. -
Page 4: Symbols
Symbols Safety Alert: Precautions that involve your safety. Do Not Climb Symbol: Climbing on or playing around equipment may result in personal injury. Read the Product Information Packet: To reduce risk of injury, user must read and understand Product Information Packet before using this product. -
Page 5: Technical Specifications
Rogers Athletic Field Equipment Specifications Portable Goal Post 23’4” Weight: 325 lbs Height: 20’ 5” Width: 24’ 11/16” (23’4” inside uprights) Depth: 11’ 4” 18’6” Weight: 298 lbs Height: 20’ 5” Width: 24’ 11/16” (18’6” inside uprights) Depth: 11’ 4”... -
Page 6: Assembly Instructions
Assembly Begin by installing wheels on the lower elbow connections as shown with 9” axle bolts, washers and nuts. Use a ¾” wrench to tighten, but do not over tighten – the wheel should roll freely. Also loosely thread the 1” pinch bolts into the elbows. - Page 7 Upright tubes are 20’ long Slide the upright tubes through the T-connectors of the crossbar without tightening pinch bolts so you can set the height later. Also slip the wheeled elbow over the bottoms of the upright tubes, as shown. Crossbar length = 23’...
- Page 8 9 feet Fit the base assembly to the upright assembly with the uprights lying on the ground. All elbow connectors can now be tightened. (3/4” wrench) Adjust height of crossbar before tightening. Dimension from base of elbow connector (what would be ground level when the goal post is upright) to the bottom edge of the T- connectors should be 9 feet.
-
Page 9: Maintenance
Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. - Page 10 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 248-0270 Fax toll free (888) 549-9659 PIP410673...
