Rogers 410353 Product Information Packet

Portable goal post
Hide thumbs Also See for 410353:

Advertisement

Quick Links

Download this manual
Product Information Packet
Product Name: Portable Goal Post
Product Part Number: 410353

Advertisement

loading
Need help?

Need help?

Do you have a question about the 410353 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rogers 410353

Summary of Contents for Rogers 410353

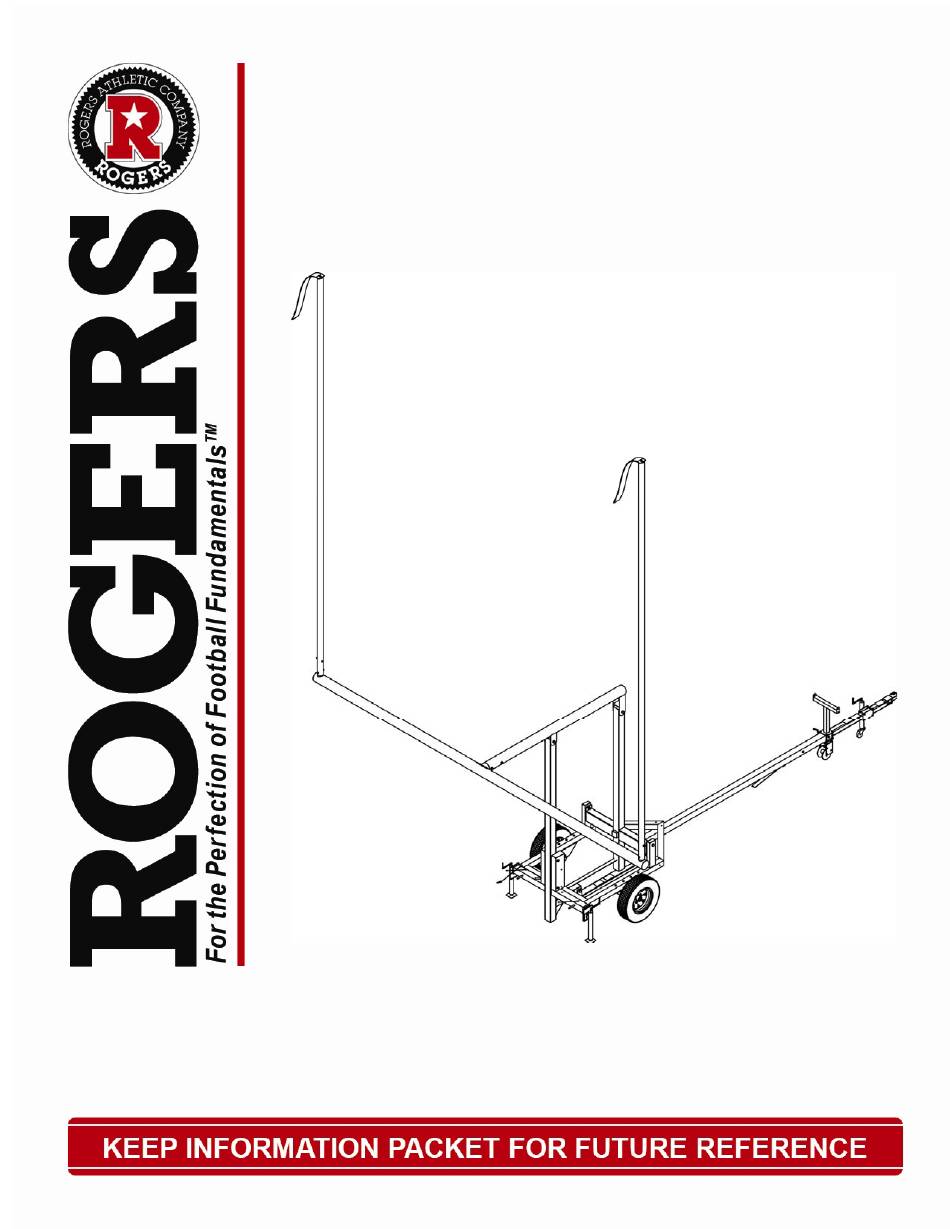

  • Page 1 Product Information Packet Product Name: Portable Goal Post Product Part Number: 410353...

  • Page 2: Table Of Contents

    Careful study of this manual is encouraged to obtain a thorough understanding of your new Portable Goal Post and its functions. If your manual is lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 800-457-5337.

  • Page 3: General Safety Rules

    General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS  Use field equipment in a supervised environment with proper gear.  Keep body and clothing free from and clear of all moving parts ...

  • Page 4: Symbols

    Symbols Safety Alert: Precautions that involve your safety. Do Not Climb Symbol: Climbing on or playing around equipment may result in personal injury. Read the Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product.

  • Page 5: Technical Specifications

    Rogers Athletic Field Equipment Specifications Portable Goal Post Weight: 18’6” = 1170 lbs 23’4” = 1200 lbs Height: 18’6” = 29’9” 23’4” = 35’10” Length: Both = 24’6” Width: 18’6” = 19’2” 23’4” = 23’10” - Heavy duty winch facilitates raising and...

  • Page 6: Assembly Instructions

    NOTE: Two people are needed for Portable Goal Post Assembly and set-up. Slide hitch assembly into frame assembly. Insert (2) ½” bolts and nuts. Bolt Wheel Assemblies onto frame assembly using (4) ½” nuts and bolts per side.
  • Page 7 Slide Goal Crossbar into base assembly. Insert (2) 5/8” Bolts and Nuts as shown. With steamer attached, place upright onto crossbar. Insert (2) ½” bolts and nuts per side.
  • Page 8 Pull Fas-pins in rear stabilizer legs, slide out to extended position. Re-insert Fas-pins. Crank both jacks down so the Portable Goal Post is level. Also crank the front jack to be level with the rear. Pull fas-pin from the Goal Post Lock. Pull Goal Post Lock.
  • Page 9 Turn winch handle to raise goal post. Re-insert Goal Post Lock, and Fas-pin into Goal Post Lock.

  • Page 10: Maintenance

    Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package.
  • Page 11 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 487-5337 Fax toll free (888) 549-9659 PIP410353...
