Product Information Packet
Product Information Packet
Product Information Packet
Product Information Packet

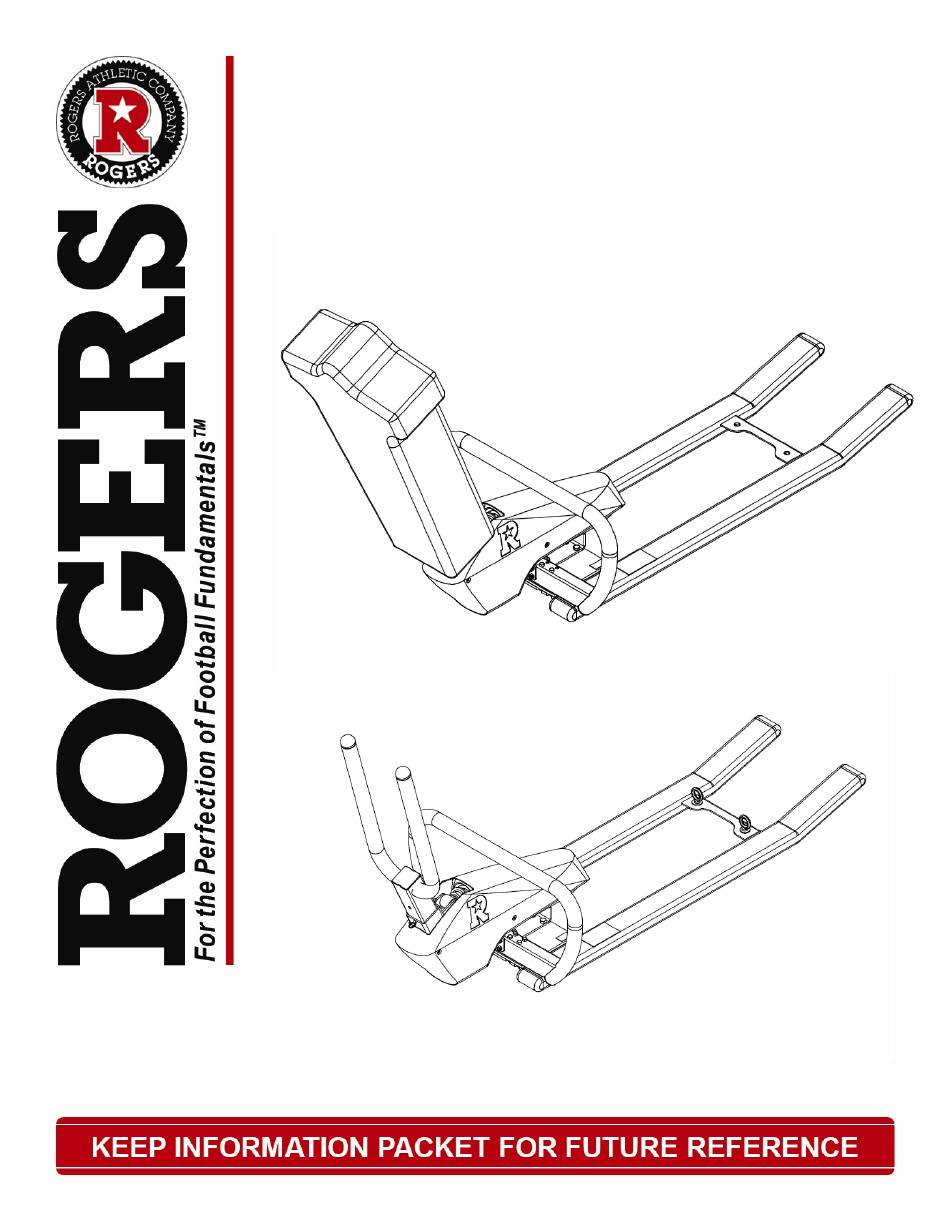

Product Name: Pop–Up Tackle Sled
Product Part Number: 410289, 410754,
408809
`Table of Contents
`Table of Contents
`Table of Contents
`Table of Contents
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rogers 410289
Summary of Contents for Rogers 410289
- Page 1 Product Information Packet Product Information Packet Product Information Packet Product Information Packet Product Name: Pop–Up Tackle Sled Product Part Number: 410289, 410754, 408809 `Table of Contents `Table of Contents `Table of Contents `Table of Contents...
-
Page 2: General Safety Rules
Careful study of this manual is encouraged to obtain a thorough understanding of your new Pop-Up Tackle Sled and its functions. If your manual is lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 800-457-5337. - Page 3 WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS Supervision of athletes while using the equipment is recommended. Horse play such as climbing on the machine or using the machine for unintended purpose can result in injuries. Athletes should be oriented in the proper use of the equipment.
- Page 4 Symbols Symbols Symbols Symbols Safety Alert: Precautions that involve your safety Store this equipment in a secure, controlled area: Unsupervised and/or inappropriate use of this equipment could result in serious injury. Do not stand, climb, or ride on the field equipment: Improper use of the field equipment may result in personal injury.
- Page 5 Rogers Athleti Rogers Athleti Rogers Athleti Rogers Athletic Pop c Pop c Pop c Pop- - - - Up Tackle Sled Up Tackle Sled Up Tackle Sled Up Tackle Sled Specifications Specifications Specifications Specifications Pop– – – – Up Tackle Sled...
- Page 6 Pop– – – – Up Drive Sled (Part# Up Drive Sled (Part# Up Drive Sled (Part# Up Drive Sled (Part# 410754) Weight: 220 lbs Height: 42.25- 47.75” Length: 82.5- 85” Width: 32” - Practice engaging at full speed, wrapping up, driving back and tackling to the ground all with one sled.
- Page 7 Assembly Instructions Assembly Instructions Assembly Instructions Assembly Instructions Attach the shock absorber assembly to the sled with (4) 1/2" x 1 ¼” hex head bolts and (4) 1/2" nuts. Attach the roll hoop assembly with (8) 3/8” x 3 3/4” bolts and (8) 3/8” nuts.
- Page 8 3/8 X 1 Button Head Bolts Place cover over the shock absorber assembly and connect with (4) 3/8 X 1 Button Head Bolts. Do not use without cover properly attached. Complete the assembly by placing the Wrap-Up pad into the shock absorber slot and insert Faspin.
- Page 9 The Wrap-Up pad can be replaced with the Drive Sled Forks. The Drive Sled Forks have three different height adjustments to accommodate different athletes and use the same Faspin as the Wrap-Up Pad.
-
Page 10: Maintenance
Customer Service Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. Customer service hours are Monday through Friday from 8:00 a.m. - Page 11 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 457-5337 Fax toll free (888) 549-9659 PIP410289...
