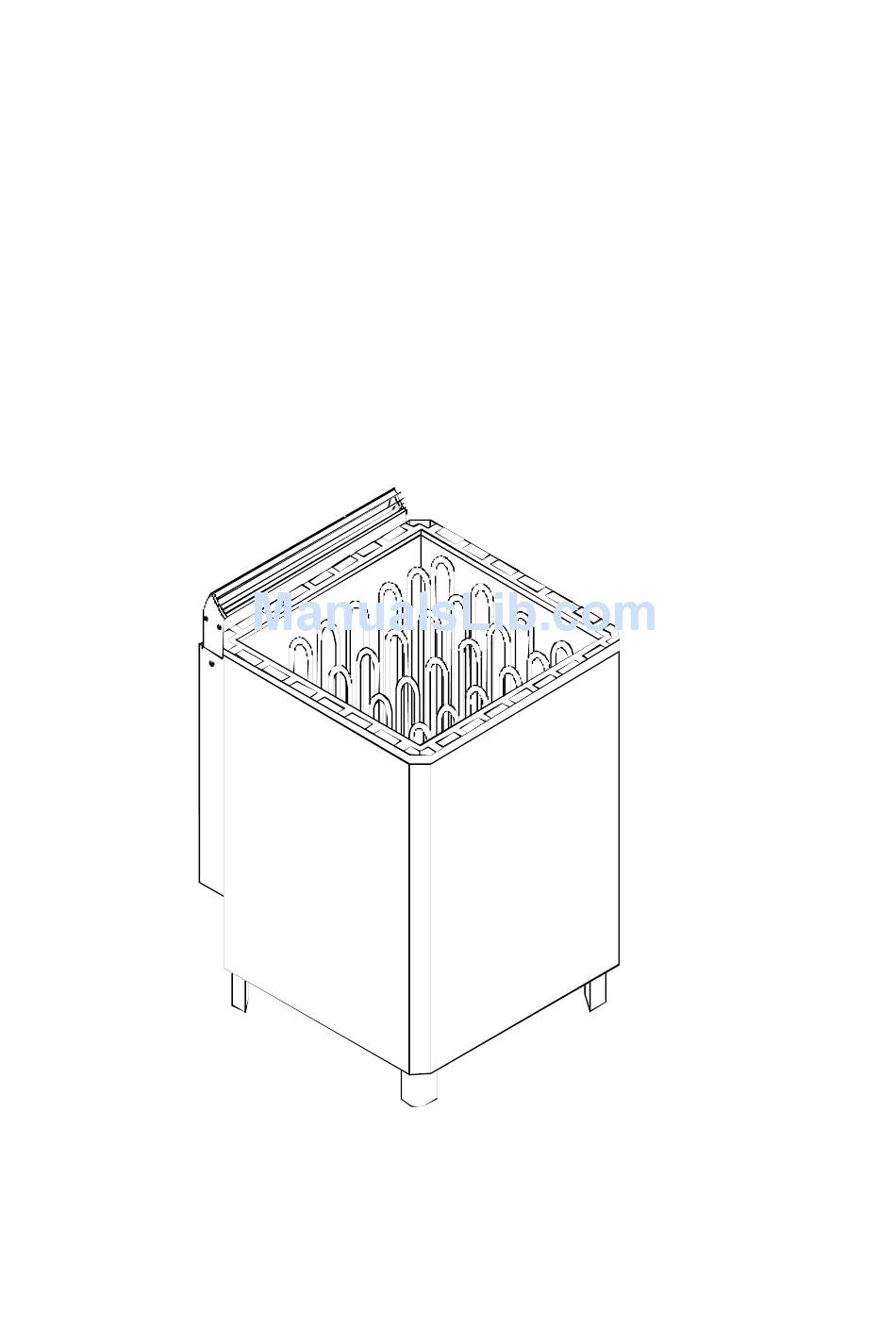

STEAMY SAUNA HEATER:
CONTROL PANEL:
1105- 901-0104
1105-1051-0104
1105-1201-0104
1105-1501-0104
0518-2-151704
7013933
314 SKLE 44 D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1105- 901-0104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Helo 1105- 901-0104

  • Page 1 STEAMY SAUNA HEATER: 1105- 901-0104 1105-1051-0104 1105-1201-0104 1105-1501-0104 CONTROL PANEL: 0518-2-151704 7013933 314 SKLE 44 D...
  • Page 2 USING. Before you start to install and use the sauna heater check the following: - that you have got all the parts needed. - check that the voltage of the heater and the control box is the right one and that the control box suits your heater.
  • Page 3: Sensor Unit

    SENSOR UNIT The sensor unit should be plased in accordance with the measures stipulated in fig. 1. The sensor unit is provided with long heat resisting (T170 C) 4x0,5mm cables. These cables can be extended by a normal weak current cables. For connection of the sensor unit control panel, please see fig.
  • Page 4: The Control Panel

    The control panel Features: Timer with 6 hour bath time and 12 hour preset time. Four heating modes, Normal Sauna 65 - 110 Cels Soft Sauna 25 - 65 Cels Soft Bath 25 - 65 Cels + Steam Soft Steam No heat Steam only One selector for the Sauna light and Ventilator fan Two separate temperature selection dials, one the Soft range 25 - 65 Cels and the other for the Sauna range 65 - 110 Cels.
  • Page 5 SOFT BATH, is the combination of steam and hot air in the range from 25 - 65 Cels. The Function dial is set to the %F range and the LED next to the dial shall turn GREEN to indicate that the steam generation is activated. Steam will be producted within some minutes.
  • Page 6 Fig 1 1. Timer knob in control panel 2. Sensor unit 3. Heat resisting cable 4. Cable to control panel 5. Junction box 6. Connection cable to steamy unit 7. Fastening hole 8. Upper bench or quard rail in frant or on the side of the heater.
  • Page 7 sensor control unit heater 6x1,5mm ac input 400N 3N~ 5x6mm 5x6mm...
  • Page 9 Ofen Lämpövastukset, Värmeelement, Teho, Effekt Heating element, Heizeelement, Tennid Input, Leistung Vöimsus SEPC 12 SEPC 11 SEPC 10 1500W 2000W 2500W 1,2,3,4,5,6 10,5 1, 3, 5 2, 4, 6 12,0 1,2,3,4,5,6 1,2,3,4,5,6 15,0 Yksi tehoryhmä, 400V 3N~, 415V 3N~ En effekt grupp, One effektgroup Ein Stufe Üks vöimsusrühm...
