Pandora 5117 Installation Manual

Service-security and remote start system, bmw 3-series f30 / 3gt f34 / m3 f80 lci 2016 - 2020 push-to-start button automatic transmission

Advertisement

Quick Links

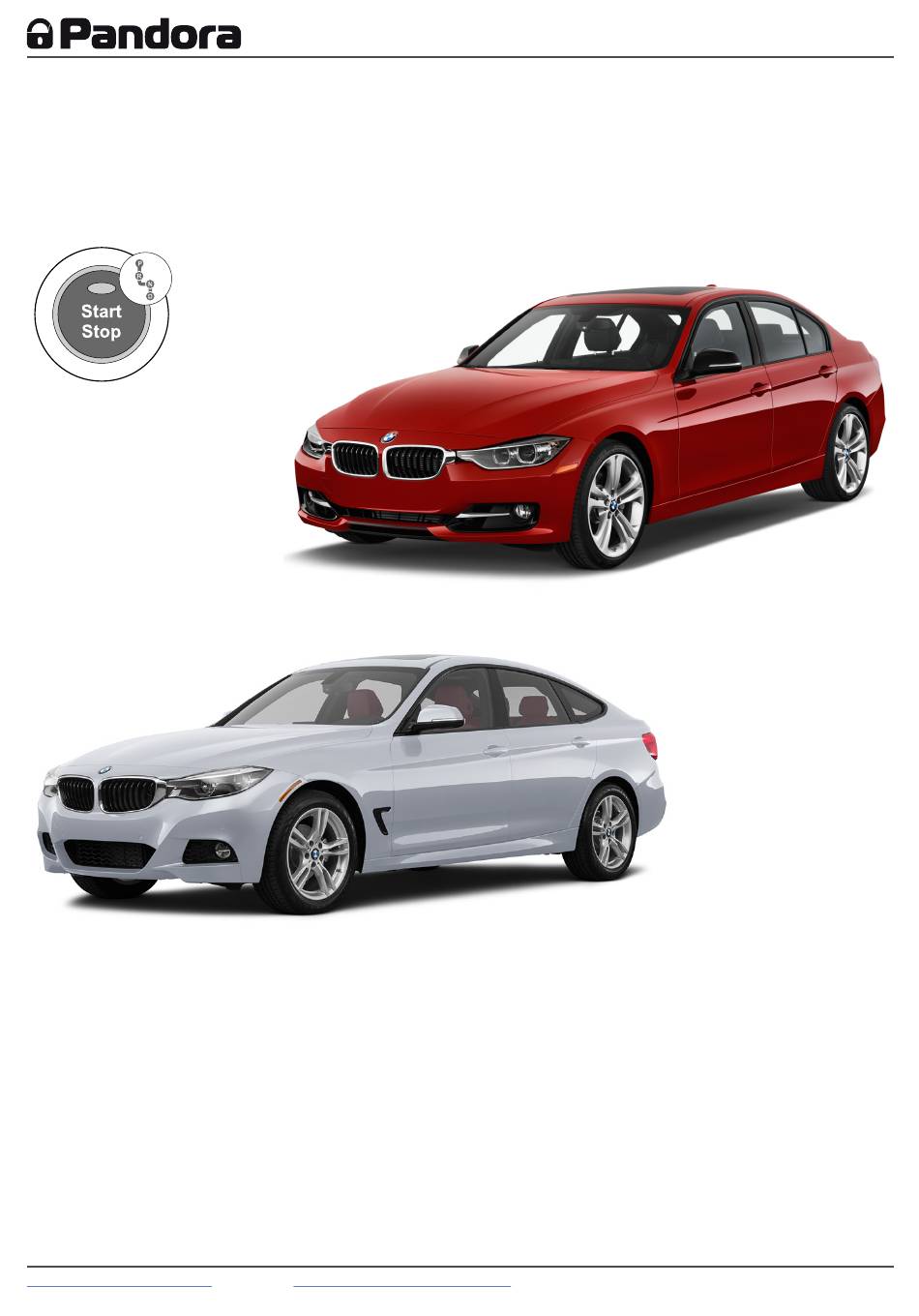

Installation guide of Pandora service-security and remote start system for
BMW 3-series F30 / 3GT F34 / M3 F80 LCI 2016 - 2020
Push-to-Start button
Automatic transmission
Model code: 5117
WARNING! This installation manual has the status of recommendation.
This system MUST BE installed by a certified technician.
Connect the wires only when the base unit is disconnected.
It's prohibited to place the wires near sharp elements and moving parts of a car. Wiring through the
holes should be passed using special rubber bushings.
The car's electrical scheme and wire colors may differs from the information shown in this guide, so
suggested connection points MUST BE checked before installation.
www.pandorainfo.com
e-mail:
support@pandorainfo.com
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5117 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pandora 5117

  • Page 1 Installation guide of Pandora service-security and remote start system for BMW 3-series F30 / 3GT F34 / M3 F80 LCI 2016 - 2020 Push-to-Start button Automatic transmission Model code: 5117 WARNING! This installation manual has the status of recommendation. This system MUST BE installed by a certified technician.
  • Page 2 Statuses Commands Model code: 5117 CAN 1, 2 • • • • • • • • • • • • • • - • • - • • • - - - - • • - - • • - Notes: 1 - Fuel level is shown in liters;...
  • Page 3 SECURITY SYSTEM SETTINGS Name Item Setting Note Setting of the warning level of the shock sensor 1.1.1 Setting of the alarm level of the shock sensor 1.1.2 Test the sensitivity after installation. Adjust if necessary Setting of the alarm level of the motion sensor 1.1.3 Setting of the alarm level of the tilt sensor 1.1.4...
  • Page 4 CONNECTION POINTS LOCATION CON 8 CON 7 CON 3 CON 10 CON 2 Body Domain Controller (BDC module) Fig.1 - BDC module, behind passenger kick-panel. Pin#6, brown - «GND» Fig.2 - «CON 3» BDC module black connector. Fig.3 - Blue section of «CON 3» connector, «GND» wire. Pin#11, yellow/ Pin#10, yellow/red - brown -...
  • Page 5 CONNECTION POINTS LOCATION Pin#46, gray - Pin#45, blue - CAN 2 H CAN 2 L Fig.6 - «CON 8» BDC module black connector. Fig.7 - CAN 2 bus wires. Pin#33, red/blue - +12V Fig.8 - «CON 3» BDC module black connector. Fig.9 - Brown section of «CON 3»...
  • Page 6 CONNECTION POINTS LOCATION Pin#2, green/yellow Ignition (+) Fig.12 - «CON 3» BDC module black connector. Fig.13 - Blue section of «CON 3» connector, Ignition wire. Pin#49, blue/white Pin#45, blue/white PTS 1 (-), via a 620 PTS 2 (-), via a 620 Ohm resistor Ohm resistor Fig.14 - «CON 7»...
  • Page 7 CONNECTION POINTS LOCATION Pin#53, purple - Immobilizer coil Fig.18 - «CON 7» BDC module white connector. Fig.19 - Gray section of «CON 7» connector, Immobilizer coil wire. Pin#30, gray/white - Driver door (-), via a 620 Ohm resistor Fig.20 - «CON 2» BDC module black connector. Fig.21 - Driver door switch output.
  • Page 8 ADDITIONAL INFORMATION Fig.24 - Possible placement of the Valet button. Fig.25 - Possible placement of the siren (PS-330). Fig.26,27 - Possible installation location of the engine temperature sensor (for 20d engine). www.pandorainfo.com e-mail: support@pandorainfo.com BMW 3-series F30 / 3GT F34 / M3 F80 2016-20 Page 8...
  • Page 9 WIRING DIAGRAM Engine temperature sensor Base unit Blue CHx- ACC O (-) Pin#30: gray/white Driver door (-) +12V «CON 2» black connector LED / Valet button, Green CHx- Bypass (-) for hidden installation CON 8 REMOVE BATTERY CON 7 Bypass Pin#45: blue/white FROM THE KEY! module...
