Pandora 3101 Installation Manual

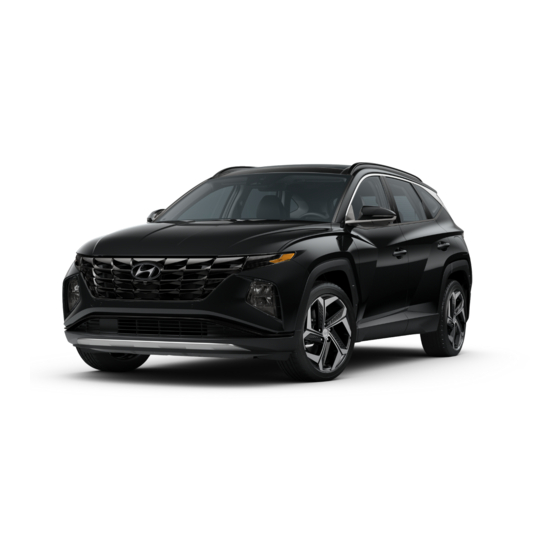

Security-service and remote start system for hyundai tucson iv (nx4) 2020
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Installation guide of Pandora security-service and remote start system for
Hyundai Tucson IV (NX4) 2020 - ...
Push-to-Start button/Regular key
Automatic transmission
Model code: 3101
WARNING! This installation manual has the status of recommendation.
This system MUST BE installed by a certified technician.
Connect the wires only when the base unit is disconnected.
It's prohibited to place the wires near sharp elements and moving parts of a car. Wiring through the
holes should be passed using special rubber bushings.
The car's electrical scheme and wire colors may differs from the information shown in this guide, so
suggested connection points MUST BE checked before installation.
www.pandorainfo.com
e-mail:
support@pandorainfo.com
Page 1

Advertisement

Table of Contents
loading

Related Manuals for Pandora 3101

Summary of Contents for Pandora 3101

  • Page 1 Installation guide of Pandora security-service and remote start system for Hyundai Tucson IV (NX4) 2020 - ... Push-to-Start button/Regular key Automatic transmission Model code: 3101 WARNING! This installation manual has the status of recommendation. This system MUST BE installed by a certified technician.

  • Page 2: Document Structure

    «System settings» table. 2. Using «Pandora Specialist» application: • Download the app from Play Market/App Store, create an account, log in; • Connect the base unit to mobile device via Bluetooth or using USB-OTG cable, following the tips in the application;...

  • Page 3: Commands And Statuses

    COMMANDS AND STATUSES Statuses Commands Model code: 3101 CAN 1 • • • • • • • • • • • • • • • - • • • • • • • • - - - - • - •...
  • Page 4 Algorithm of processing data from accelerometer For proper operation of trunk Additional closing impulse after the trunk is closed while armed 1.5.10 Enable opening function from Pandora system For the cars with Start/Stop 1.5.14(15) Enable Central lock control in Slave mode only when the engine is started...
  • Page 5 CONNECTION POINTS LOCATION Driver side junction block ICU-H ICU-A ICU-F Fig.1 - Connectors at the front side of junction block. Fig.2 - Connectors at the rear of junction block. MC11 Pin#25, black - Fig.3 - Connectors behind driver kick panel. Fig.4 - ICU-F connector, «GND»...
  • Page 6 CONNECTION POINTS LOCATION Pin#4, pink - 12V (+) Fig.7 - ICU-A connector. Fig.8 - «+12V» wire. Pin#25, blue/black - Pin#42, yellow - Ignition 1 (+) Ignition 2 (+) Pin#33, pink - Starter (+) Fig.9 - MC11 connector behind driver kick panel. Fig.10 - Ignition/starter control circuits.

  • Page 7: Additional Information

    ADDITIONAL INFORMATION Fig.13,14 - Possible placement of the siren. Fig.15,16 - Possible installation location of the engine temperature sensor (for diesel engine). Fig.17 - Possible Valet button location. BACK www.pandorainfo.com e-mail: support@pandorainfo.com Hyundai Tucson NX4 2020-... Page 7...

  • Page 8: Wiring Diagram

    WIRING DIAGRAM BACK Green EMS COM EMS COM White External button Valet Base unit Pin#20: White/Orange EMS COM Engine/starter blocking circuit MC11 connector, Blue/Black Blocking N.C. behind driver Blue/Red Blocking N.C. kick panel Engine/interior temperature Yellow Ignition (+) INPx+ sensor Ignition 1 (+) Brown Yellow...
  • Page 9 LEARNING AT THE VEHICLE 1. Switching to the program mode. Conditions: - System is disarmed; - System is not in the service mode; Press shortly - Ignition is OFF. 1 time With ~ 2 Enter «Service PIN-code» (1-1-1-1 by default) short one-time (for code sec.
