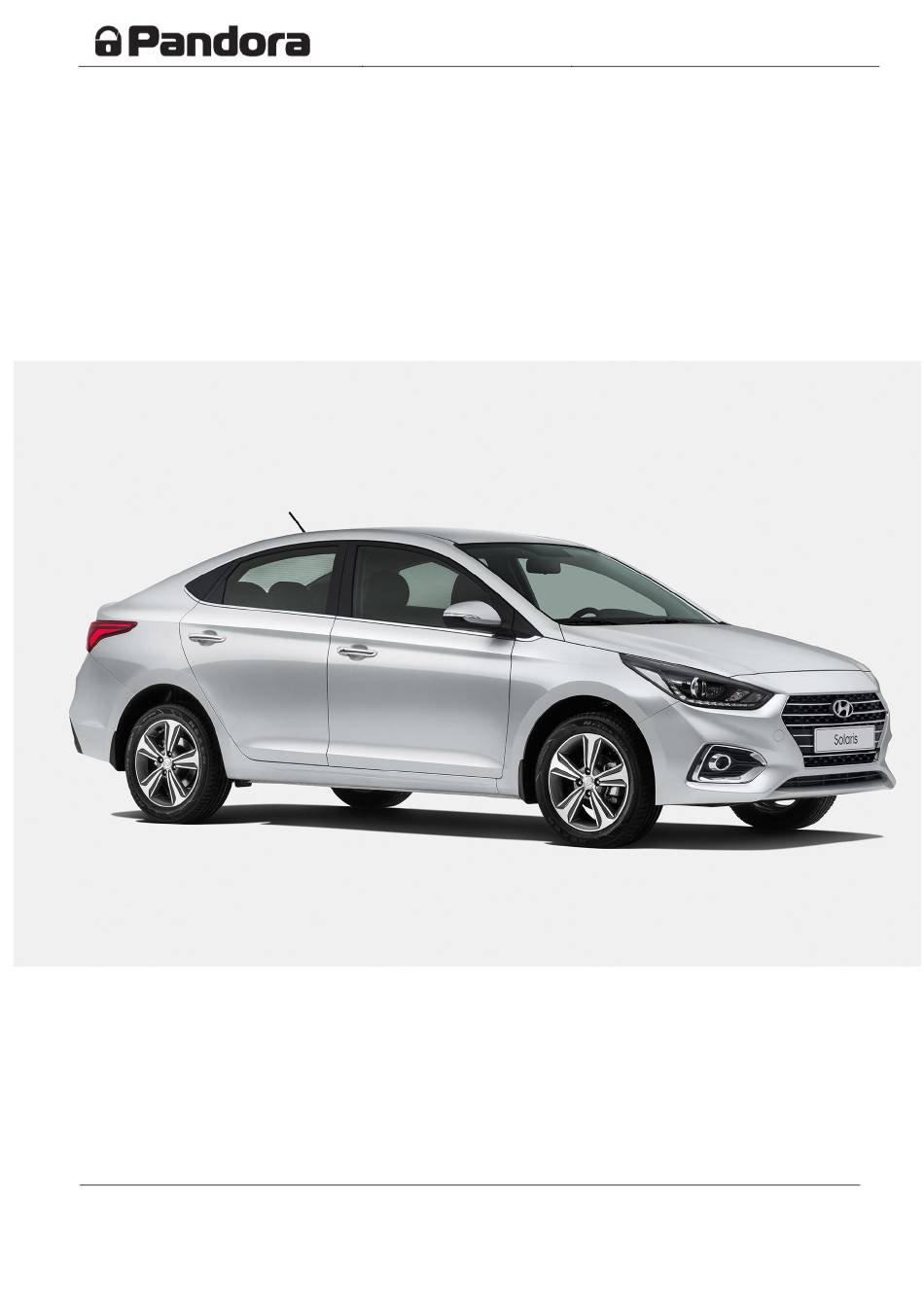

Pandora DXL
Hyundai Solaris (2017-)
Installation manual
of Pandora service-security systems
with integrated CAN/LIN-bus adapter
for Hyundai Solaris II with RF key
model code 3126.
This instruction has the status of a recommendation
support@pandorainfo.com
pandorainfo.com
1
Advertisement
Related Manuals for Pandora 3126
Summary of Contents for Pandora 3126
- Page 1 Pandora DXL Hyundai Solaris (2017-) Installation manual of Pandora service-security systems with integrated CAN/LIN-bus adapter for Hyundai Solaris II with RF key model code 3126. This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
- Page 2 PC. The PC must have a connection to the Internet. 3. Enter the programming mode on the system. 4. Run Pandora Alarm Studio (it can be downloaded from http://pandorainfo.com/support/alarmstudio-firmware/ 5. Make sure the actual version of firmware is installed on your system. Update the firmware if it is required.
- Page 3 Pandora DXL Hyundai Solaris (2017-) Readable statuses, commands that are performed via CAN-bus Executable COMMANDS Readable STATUSES of car state Notes H – hazard lights, P – Parking lamps CAN2: CanHigh-red wire, CanLow- blue wire; ● ● ● ● ●...
- Page 4 Pandora DXL Hyundai Solaris (2017-) Removing plastic panels to install and connect This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
- Page 5 Pandora DXL Hyundai Solaris (2017-) This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
- Page 6 Pandora DXL Hyundai Solaris (2017-) Connecting circuits for remote start There are 2 options for remote start connection: ignition switch and fuse box. Option №1. Ignition switch connection. Wires of ignition switch connector: White +12V Starter Pink +12V Ignition 1...
- Page 7 Pandora DXL Hyundai Solaris (2017-) Clutch pedal pressing detector Pink Additional relay +12V (-) “Ground” on switching on immobilizer bypass or rotating starter The main connection circuits CAN buses connection CAN1 connection CAN2 connection White connector of the dashboard: Diagnostic connector:...
- Page 8 Pandora DXL Hyundai Solaris (2017-) +12V and Ground connections Power (+12V) can be connected to red thick wire of the fuse box socket. Ground (-) can be connected to the terminal on the front kick panel (connection under the nut).
- Page 9 Pandora DXL Hyundai Solaris (2017-) Engine operation control Tachometer This configuration of cars allows to control tachometer signal via CAN bus. The other option is analog connection to generator status wire. Generator To determine whether the engine is running, connect to blue-black wire of the dashboard connector or to the blue-black wire of the left kick-panel connector.
- Page 10 Pandora DXL Hyundai Solaris (2017-) Light signalization connection (Hazard lights) Hazard light signalization can be connected in the BCM module above the accelerator pedal. The BCM module above the accelerator pedal For cars with CL control buttons For base configuration of cars...
- Page 11 Pandora DXL Hyundai Solaris (2017-) Doors and trunk triggers (base configuration of a car) The connection of triggers is performed in the harness of sill plate wires. Green Doors opening trigger Pink Trunk opening trigger Doors and trunk opening triggers...
- Page 12 (-) Open CL Bypass of original immobilizer Connect green-orange LIN wire or white LIN OUT wire (see wiring diagram) of Pandora system to Blue-Orange wire of EMS COM going to the kick panel connector from the driver side. Bypass of original immobilizer...
- Page 13 Hyundai Solaris (2017-) System settings Apply the next settings in Pandora Alarm Studio: 1. Remote engine start logic is configured as standard start logic of analog key ignition switch. 2. Enable “Use LIN for Bypass of KIA/Hyundai configuration with Start/Stop button and key (the new version of immobilizer)”...
