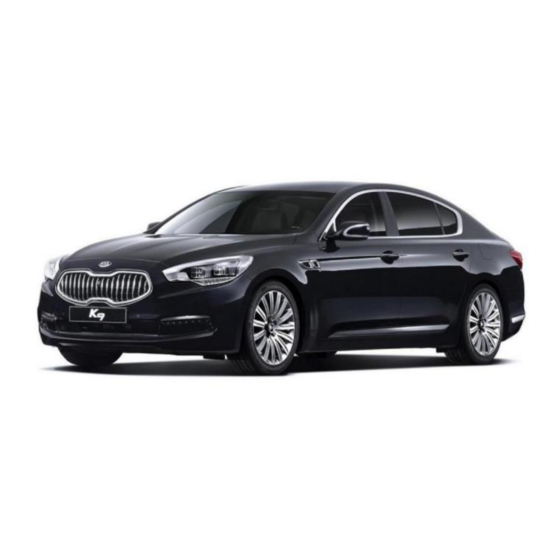

- Page 1 Pandora DXL Kia Quoris (2015-…) Installation manual of Pandora service-security systems for KIA Quoris I (KEYLESS) model code CAN 3219 This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
- Page 2 PC. The PC must have a connection to the Internet. 3. Enter the programming mode on the system. 4. Run Pandora Alarm Studio (it can be downloaded from http://pandorainfo.com/support/alarmstudio-firmware/ 5. Make sure the actual version of firmware is installed on your system. Update the firmware if it is required.
- Page 3 Pandora DXL Kia Quoris (2015-…) Placing units (modules) and connections The base unit of the system can be installed behind the fuse box. The main connections are made at the fuse box connectors. Removing plastic panels to install and connect...
- Page 4 Pandora DXL Kia Quoris (2015-…) Readable statuses, commands that are performed via CAN-bus Readable STATUSES of car state Executable COMMANDS Notes A - alarm * Opening button on the trunk - A + Depending configuratio Connection to CAN1 Connector in the left kick-panel This instruction has the status of a recommendation support@pandorainfo.com...
- Page 5 Pandora DXL Kia Quoris (2015-…) orange-white - to green wire (CAN-H); orange-black - to yellow wire (CAN-L). Power connection: + 12V. (+12V.) Power (-) Ground Power (+ 12V) - connects to the white wire of the (-) "mass" - is connected to the car body.
- Page 6 Pandora DXL Kia Quoris (2015-…) Red-ignition 1, pink-ignition 2 Behind the fuse box Yellow – accessories (+12V) Behind the fuse box This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
- Page 7 Pandora DXL Kia Quoris (2015-…) Yellow-black – starter (+12V) Bypass of original immobilizer For a bypass, an algorithmic bypass of a standard immobilizer is used. For this, it is necessary to connect the IMMO KEY port wire parallel to the orange information wire of the standard immobilizer (EMS COM), which is located in the block behind the fuse box (distant connector).
- Page 8 Pandora DXL Kia Quoris (2015-…) Connection and pin out of system connectors is shown in the general diagram. To implement the automatic start of the car engine, you must: 1. Connect to ignition, accessories, starter circuits. On these vehicles, they often automatically start according to the logic of the system with a key ignition lock, even if the car has a Start / stop button.
- Page 9 Pandora DXL Kia Quoris (2015-…) Menu Submenu Function Value (number, name) (number, name) (number, name) 3.2. Output 3. inputs and outputs CH1 change logic Ignition 2 Settings Simulation of pressing the brake pedal (automatic transmission). Simulation of pressing the brake pedal...
- Page 10 Pandora DXL Kia Quoris (2015-…) The above is an example of connecting the channels of Pandora DX-90 systems. Programmable functions are described in the “Connecting and Programming Pandora DX-90 Systems” section. Menu Submenu Function Value (number, name) (number, name) (number, name) 3.2.
- Page 11 Pandora DXL Kia Quoris (2015-…) Menu Submenu Function function value (number, name) (number, name) (number, name) 1.5.11 Additional 1.5. Central command to lock the 1. main settings locking, trunk doors after turning off Allowed unlocking the engine in the arming state 1.5.12.
- Page 12 Pandora DXL Kia Quoris (2015-…) Enter programming mode by entering ‘Service PIN-code’ (factory preset is 1-1-1-1). PIN-code should be entered using external or located on the base unit VALET button. The input is indicated by flashes of external or located on the base unit LED indicator.
