Pandora 3227 Installation Manual

For kia sportage qle 2016

Advertisement

Quick Links

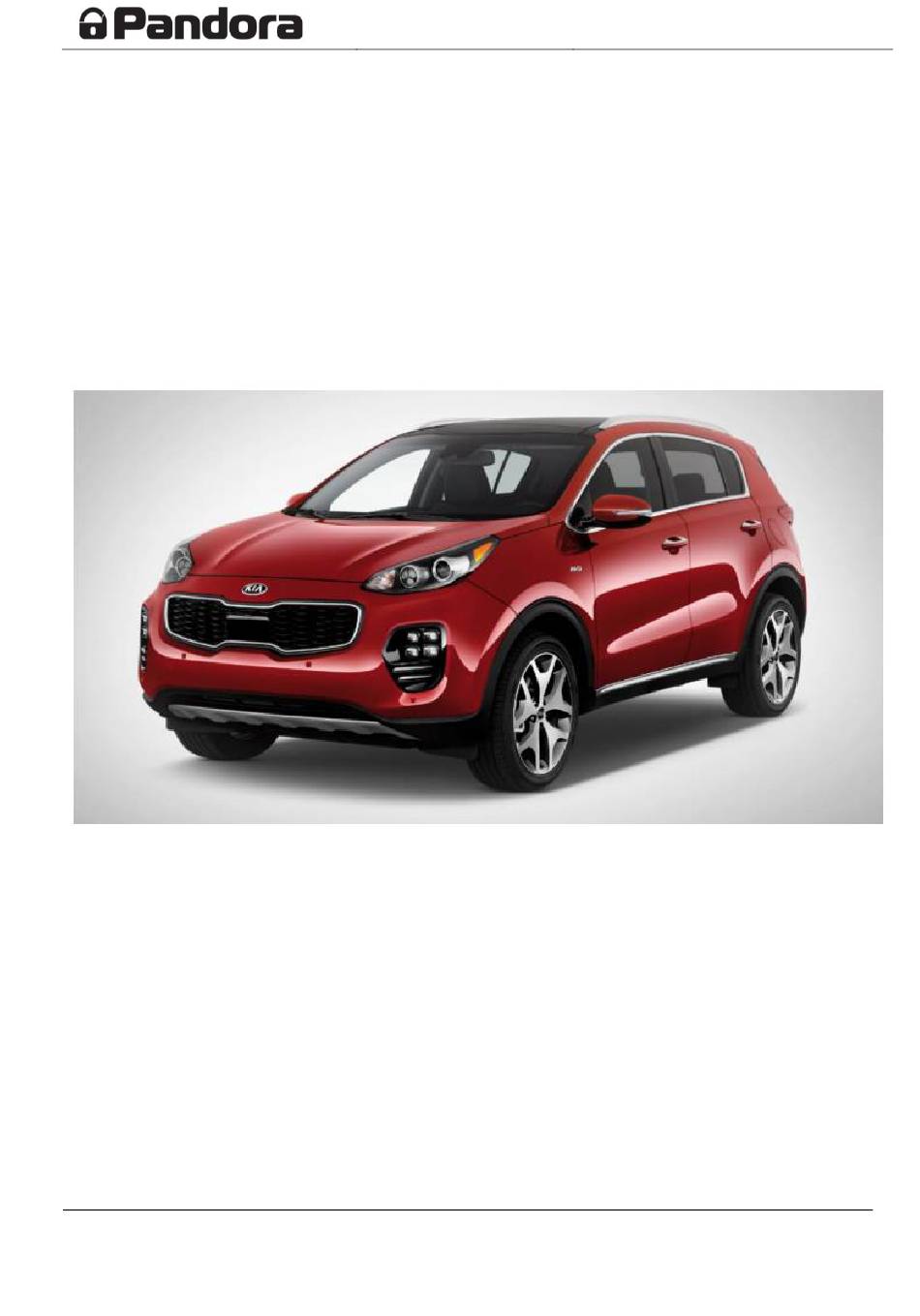

Pandora DXL
Kia Sportage QLE (2016-)
Installation manual
of Pandora service-security systems
for KIA Sportage QLE 2016-...
model code 3227
vehicle configuration:
with button start stop and automatic transmission;
with original key and automatic transmission.
This instruction has the status of a recommendation
support@pandorainfo.com
pandorainfo.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3227 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pandora 3227

  • Page 1 Pandora DXL Kia Sportage QLE (2016-) Installation manual of Pandora service-security systems for KIA Sportage QLE 2016-… model code 3227 vehicle configuration: with button start stop and automatic transmission; with original key and automatic transmission. This instruction has the status of a recommendation support@pandorainfo.com...
  • Page 2 PC. The PC must have a connection to the Internet. 3. Enter the programming mode on the system. 4. Run Pandora Alarm Studio (it can be downloaded from http://pandorainfo.com/support/alarmstudio-firmware/ 5. Make sure the actual version of firmware is installed on your system. Update the firmware if it is required.
  • Page 3: Autostart Operation

    Pandora DXL Kia Sportage QLE (2016-) Readable statuses, commands that are performed via CAN-bus Executable COMMANDS Readable STATUSES of car state Notes: 1* Analog connections is required for Remote engine start, Turbotimer and Program Neutral (Mechanical transmission) functions. 2* Fuel level in % 3* Only with this function in the car.
  • Page 4: Connection Points

    Pandora DXL Kia Sportage QLE (2016-) Connection points: Connection points All system connections to the vehicle are made in: fuse box connectors (to the left of the steering column) diagnostic connector (OBD) in the connectors behind the left kick panel...
  • Page 5 Pandora DXL Kia Sportage QLE (2016-) OBD connector Connector I/P-F from the back side oft he fuse box Connector I/P-E from the back side of the fuse box at the vehicles with Connector I/P-E from the back side of the fuse box at the...
  • Page 6 Pandora DXL Kia Sportage QLE (2016-) Connector MC11 behind the left kick panel at the vehicles with Connector MC11 behind the left kick panel at the vehicles Start Stop with original key button Connector C408 from igniton-sensor at the vehicles with Possible location of the „Valet“...
  • Page 7 Pandora DXL Kia Sportage QLE (2016-) Possible location of the temperature sensor of the engine Possible location of the siren Possible location of the siren This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
  • Page 8: Settings After Installation

    Pandora DXL Kia Sportage QLE (2016-) Starter blocking Blocking of the starter at the vehicles with original key Blocking of the starter at the vehicles with the start/stop button Settings after installation All settings are performed when the system is in programming mode.
  • Page 9 Pandora DXL Kia Sportage QLE (2016-) Idle speed recording Enter the programming level №3 Press the valet button 3 times. Each press will be confirmed with a green flash of the LED. Pauses between presses should not exceed 1 sec.
  • Page 10 Pandora DXL Kia Sportage QLE (2016-) Enter the programming level №17 Press the valet button 17 times. Each press will be confirmed with a green flash of the LED. Pauses between presses should not exceed 1 sec. The system will confirm entering the level №17...
