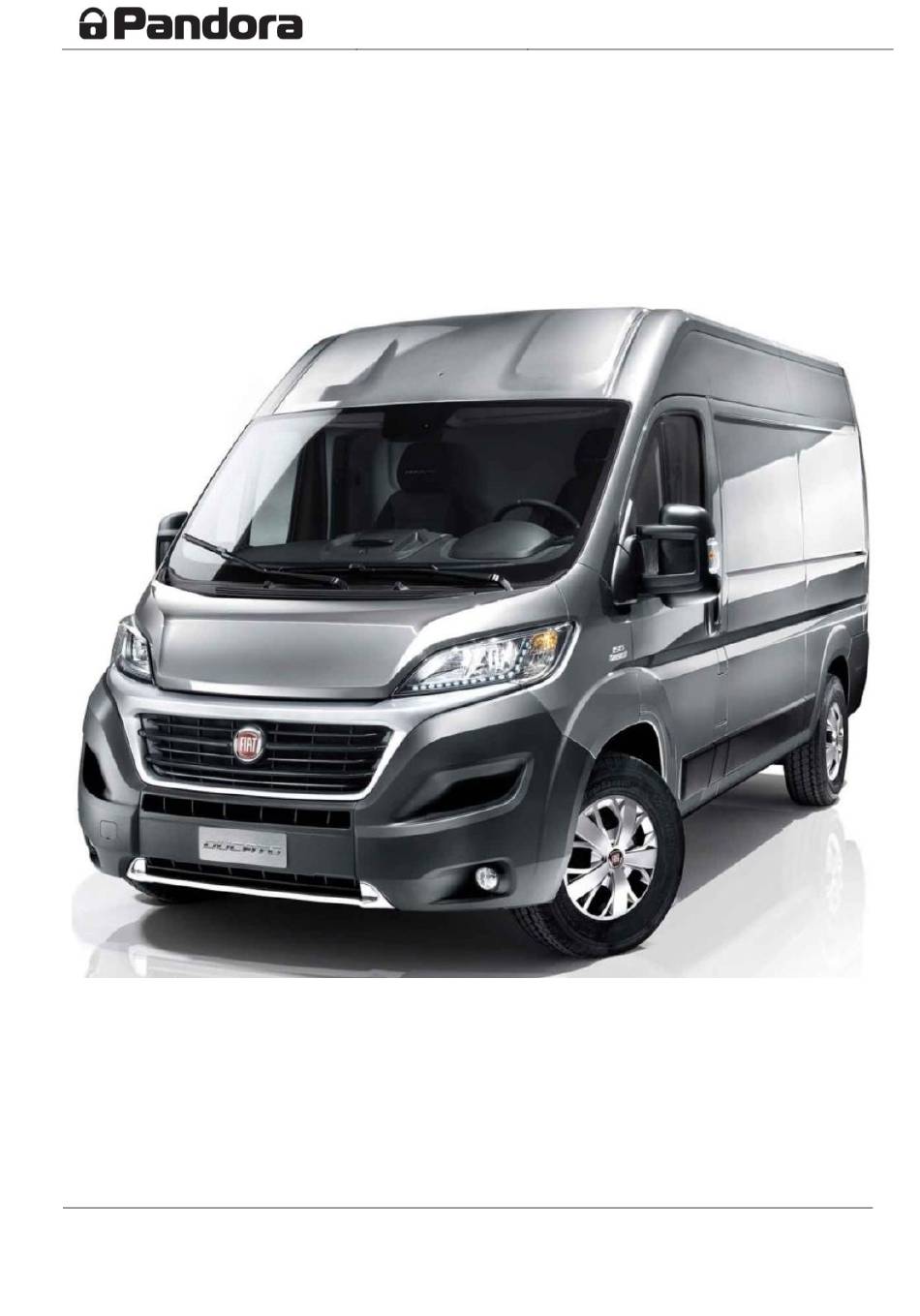

- Page 1 FIAT DUCATO III facelift (2014-2019) Installation instruction of Pandora service-security systems for FIAT DUCATO III facelift (2014-2019) model code 1717 This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
-
Page 2: Before Installation
PC. The PC must have a connection to the Internet. 3. Enter the programming mode on the system. 4. Run Pandora Alarm Studio (it can be downloaded from http://pandorainfo.com/support/alarmstudio-firmware/ 5. Make sure the actual version of firmware is installed on your system. Update the firmware if it is required. - Page 3 FIAT DUCATO III facelift (2014-2019) Placing units and connections Base unit location Main connection points Removing plastic panels Unscrew 3 Torx screws to remove the plastic pannel. BSI module. Unscrew 2 screws and one M10 nut to remove the BSI module. This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
-
Page 4: Ground Connection
FIAT DUCATO III facelift. 2014-2019 Model code: 1717 ● ● ─ ● ─ ● ● ● ● ● ● ● ● ● ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ СAN 1... -
Page 5: Can-Bus Connections
FIAT DUCATO III facelift (2014-2019) CAN-bus connections Pin 24 - CAN1-H Pin 9 - CAN1-L Connect to CAN1-bus CAN1-H – blue wire, 24 Pin in the black 60-pin connector on the BSI; CAN1-L – white wire, 9 Pin in the black 60-pin connector on the BSI. Hazard lights connection Hazard lights Apple (-) impulse to the wire of the... -
Page 6: Power Supply Connection
FIAT DUCATO III facelift (2014-2019) Central lock connections Pin 1 Pin 50 Close Central lock – (-) Ground – white/brown Open Central lock – (-) Ground through a 1 kΩ wire, pin 1 in the black 60-pin connector of the resistor, white/purple wire, pin 50 in the green BSI. - Page 7 FIAT DUCATO III facelift (2014-2019) Starter blocking Brown – gray Starter blocking This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
- Page 8 FIAT DUCATO III facelift (2014-2019) Connections diagram for Pandora Camper This instruction has the status of a recommendation support@pandorainfo.com pandorainfo.com...
- Page 9 FIAT DUCATO III facelift (2014-2019) Inputs/Outputs settings in accordance with the connections diagram Menu Submenu Setting Value 3. Inputs and outputs 3.1 Input settings INP2 Ignition 3. Inputs and outputs 3.1 Input settings INP3 Front hood 3. Inputs and outputs 3.2 Output settings CH6 (change logic) Opening central lock...
