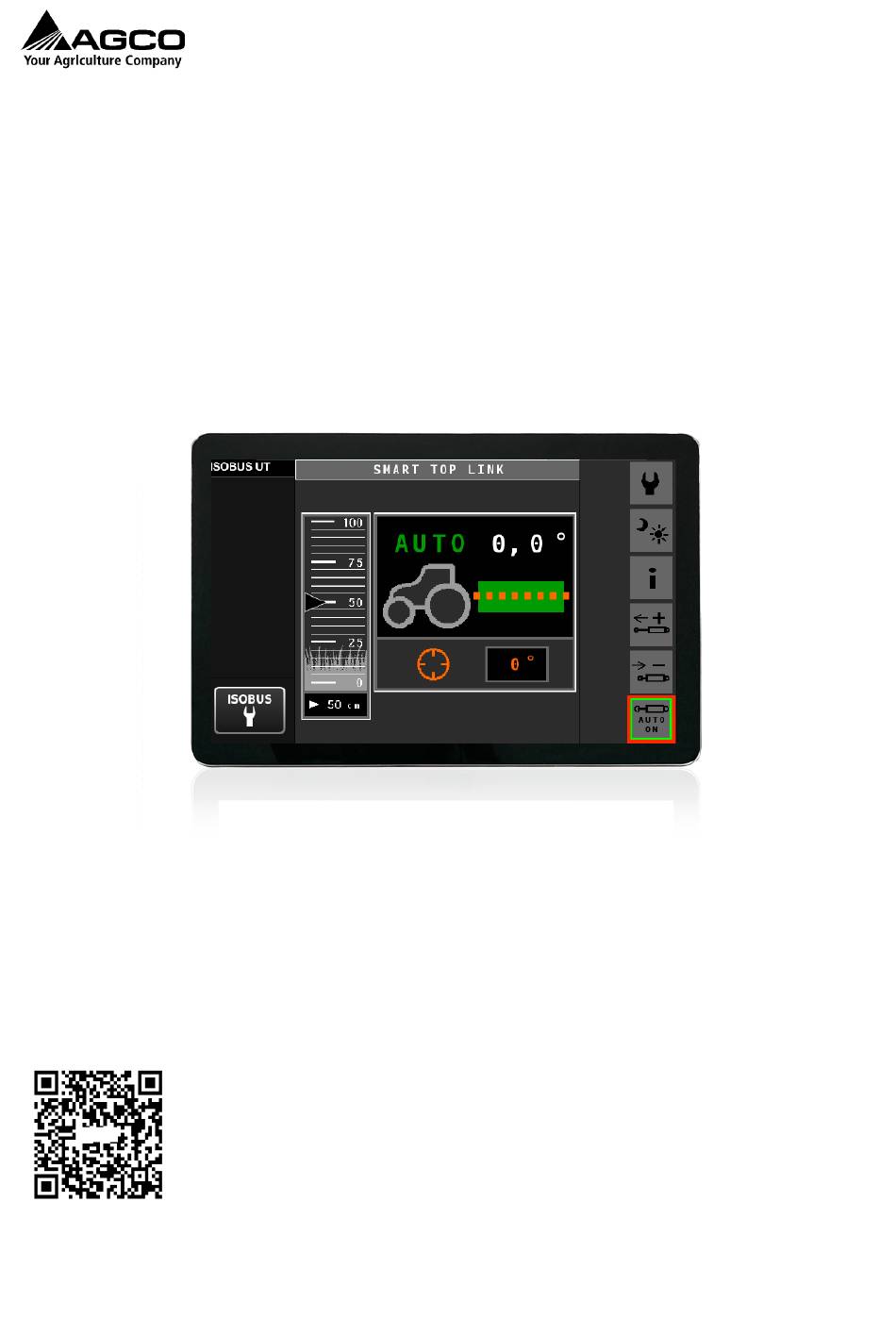

- Page 1 12/2024 SMART TOP LINK OPERATOR'S MANUAL All the product information, pictures and videos are also available online: https://access.agcocorp.com/en.html © AGCO Corporation All rights reserved...
- Page 2 SMART TOP LINK 12/2024 TABLE OF CONTENT PRODUCT OVERVIEW ................................... 3 1.1 INTRODUCTION ..............................3 1.2 REQUIREMENTS ..............................3 SAFETY ........................................3 2.1 SAFETY INSTRUCTIONS ............................4 2.2 MACHINE SAFETY ..............................4 INSTALLATION ....................................5 3.1 TO THE TRACTOR - HARDWARE INSTALLATION ....................6 3.2 VALTRA N/T SERIES ..............................
- Page 3 PRODUCT OVERVIEW 1.1 INTRODUCTION This is the operator’s manual for the Smart Top Link. The instructions here only apply to the operation and installation of the Smart Top Link. The Smart Top Link is supplied with: • 1x Electronic Control Unit (ECU) •...
- Page 4 Make sure that top link has enough range for movement and therefore doesn’t cause implement collision with the tractor or ground surface. When doing maintenance or other works near the top link or the implement outside the tractor, make sure that the smart top link is switched off.
- Page 5 TO THE TRACTOR – 45min Parts that are installed to the tractor. Installation varies according to the tractor brand and model. If you purchased your Smart Top Link trough Valtra Unlimited, the installation is TO THE TRACTOR completed for you and you can jump to the section TO THE IMPLEMENT.
- Page 6 3.1 TO THE TRACTOR - HARDWARE INSTALLATION TO THE TRACTOR HYDRAULIC BLOCK 1. LS PUMP (for tractor LS line) 2. LS AUX (for implement LS hose) M14 3. Tank 4. Pressure 5. Top Link + 6. Top Link - Hydraulic connectors provided with the system are LS AUX with 3/8” female quick coupler and two ½”...
- Page 7 Installation orientation of the hydraulic block is important for the correct operation, always install the hydraulic block in a way where the magnet valves are in horizontal direction: Correct way to install the hydraulic block Incorrect way to install the hydraulic block ELECTRICAL CONNECTIONS Hydraulic block connections: ECU connections.
- Page 8 3.2 VALTRA N/T SERIES TO THE TRACTOR - In the box, you will have the following items: MOUNT HYDRAULIC BLOCK HYDRAULIC PARTS HARNESS You will also need the following: HYDRAULIC HOSES, presented with Dunlop Hiflex codes: Valtra T Series Valtra N Series & (2024 -) T Series (-2023) Qty DH Item...
- Page 9 INSTALLATION – 45MIN Valtra N & T series machines. More detailed instructions & videos go to agcocorp.access.com or scan the QR-code. REMOVE EXISTING HARDWARE 1. Remove the mounting bracket for the ABS plug 2. Remove the accessories (airline bracket) from the back plate of the tractor and place them to the side 3.
- Page 10 6. Disassemble the emergency brake handle from the mount ASSEMBLE HYDRAULIC BLOCK 7. Install the male – male fitting for the LS pump 8. Install the 90-degree angle fitting for the LS AUX and secure the quick coupler 9. Install the 90-degree angle fittings for both the tank and the pump line 10.
- Page 11 13. Mount the Hella socket and ABS mount on the side of the mounting plate 14. Bring the Pre assembled Smart top Link mount to the rear of the tractor and line up the top three bolts to the holes in the mounting bracket 15.
- Page 12 19. Run the appropriate hoses from the tank and pump on the tractor to the tank and pump on the smart top link hydraulic block 20. Secure the LS Pump line to the Smart Top Link hydraulic block and plug the other end directly into the tractors LS system (Quick coupler) 21.
- Page 13 25. Plug the ISOBUS harness directly into the Tractors ISOBUS socket, this harness gets plugged into ECU port “D" 26. Plug the hydraulic top link hoses directly into the Smart Top Link hydraulic block. Next follow the “To the implement” installation guide to install the parts...
- Page 14 3.3 VALTRA Q,S SERIES AND MF 8S,9S TO THE TRACKTOR - In the box, you will have the following items: MOUNT HYDRAULIC BLOCK HYDRAULIC PARTS HARNESS You will also need the following: HYDRAULIC HOSES & COMPONENTS, presented with Dunlop Hiflex codes: DH Item DH Item Components...
- Page 15 ASSEMBLE THE HYDRAULIC BLOCK 1. Insert the male – male fitting for the LS AUX 2. Insert the 90-degree angle fitting for the LS AUX 3. Insert the 4 x 90 degree angle fittings for the tank, pump and top link inlets 4.
- Page 16 9. Re-insert the bolt and secure 10. Place the 2 nuts provided onto the bolts that run through to the back of the smart top link mount 11. Remove the top 2 bolts and place the ECU mount on and replace them in the...
- Page 17 12. Run the hoses from the tank and the pump on the tractor side and connect them to the appropriate fittings on the hydraulic block. 13. Run the hoses for the top link from the 90 degree angle fittings from the block 14.
- Page 18 Re-Mount the hydraulic top link and plug straight into the hydraulic quick connectors running to the smart top link hydraulic block 22. The Smart Top Link is now installed to the tractor, next follow the “To the implement” installation guide to install the parts to the implement.
- Page 19 3.4 MF 6S/7S TO THE TRACKTOR - IN THE BOX MOUNT HYDRAULIC BLOCK HYDRAULIC PARTS HARNESS You will also need the following: HYDRAULIC HOSES & COMPONENTS, presented with Dunlop Hiflex codes: COMPONENTS DH Item HOSES DH Item Length 24-XRL-22 HOSE 1 - PUMP 2SC-3/8"...
- Page 20 ASSEMBLE THE HYDRAULIC BLOCK 1. Insert the male – male fitting for the LS AUX 2. Insert the 90-degree angle and quick coupler fitting for the LS AUX 3. Insert the two 90-degree angle fittings for the tank and pump 4.
- Page 21 7. Secure the Hella socket to the mount TRACTOR INSTALLATION 8. Remove the airline system bracket 9. Move the airline system to the side and loosen the pump hose and quick coupler 10. Now remove the other end of the pump line on the tractor side 11.
- Page 22 13. Remove the tank line quick coupler and loosen the hose 14. Follow the hose and remove the banjo fitting on the tractor side 15. Remove the hose, but remember to temporaraly place the bolt back so that no dirt enters the hydraulic system 16.
- Page 23 20. Place the First of the two brackets over the banjo fitting to line up with the existing 4 x bolts. Add the nuts supplied to secure. 21. Slide the pre-assembled smart top link mount above the leg and secure this with the 2 bolts supplied...
- Page 24 23. Secure the LS pump line to the block Secure the fittings for the quick coupler to the other end of the hose for the LS and plug directly into the tractors LS system 24. Re-mount the airline bracket INSTALLING THE ELECTRICS 25.
- Page 25 28. The Smart Top Link is now installed to the tractor, next follow the “To the implement” installation guide to install the parts to the implement.
- Page 26 3.5 Fendt TO THE TRACTOR - In the box, you will have the following items and one of the mounts (500/700/800/900) HYDRAULIC PARTS HYDRAULIC BLOCK HARNESS MOUNT 500 MOUNT 700 MOUNT 800 MOUNT 900 ACX5490970 ACX5454440 ACX5419780 ACX5454110 You will also need the following: HYDRAULIC HOSES, presented with Dunlop Hiflex codes: DH item Qty DH item...
- Page 27 REMOVE AND REPLACE (TRACTOR HYDRAULICS) Note – pump and tank hoses can be directly plugged into the quick coupler if your spreader does not require load sensing hydraulics. 1. Remove the left-hand hydraulic fitting, for easy access to the pump fitting on the right-hand side.
- Page 28 8. Finally, mount the 2 top link quick couplers. MOUNTING THE HARDWARE ON THE TRACTOR 9. Remove the Existing top link holder from the tractor. 10. Replace this with the new smart top link mount, utilising the same bolt holes.
- Page 29 11. Place the hydraulic block onto the Smart Top Link mount and secure it via the two bolt holes underneath the bracket. 12. Run the hoses from the tank and pump splitters up to the necessary fittings on the hydraulic block .
- Page 30 17. Now run the cable for the ISOBUS, this gets plugged into ECU port “C ” INSTALLING THE NEW TOP LINK HOLDER Line the Ball up with the hole on the steel rod. Punch the roll pin through to secure. Place the plastic grommet in the top link holder hole and insert the steel rod.
- Page 31 The Smart Top Link is now installed to the tractor, next follow the “To the implement” installation guide to install the parts to the implement. DIFFERENCES IN INSTALLATION BETWEEN 800 & 900 SERIES MACHINES 800 SERIES MOUNT (EXTRA BACK PLATE) •...
- Page 32 SENSORS CABLES At this point, installation for the Smart Top Link tractor parts has been completed. Smart Top Link system uses two sensors, which need to be installed to the implement along with the sensor harness. Follow these steps to complete the sensor installation.
- Page 33 5. Installing the sensors to the implement • Pointing straight down to the ground • Make sure sensors are underneath the spreading disc • At the minimum height of 30cm from the ground while the spreader at its operating height. Sensors should be approximately at the same height.
- Page 34 2. System status (OFF/PAUSE/AUTO) 3. Current angle of implement 4. Help view 5. Manually extend top link 6. Target angle 7. Manually shorten top link 8. Current height of implement 9. AUTO ON/OFF button to activate and deactivate Smart Top Link function...
- Page 35 SETTINGS CALIBRATION Calibration procedure needs to be executed every time installation of sensors is changed. It is preferred to perform calibration with an empty spreader. Before you start • Lift fertilizer spreader to operating height (you can check spreader manual for precise height requirements).
- Page 36 4. Press calibrate button and enter the measured value into the offset 5. Check that the sensor values seem realistic. You can measure the sensor heights with a measuring tape. Calibration complete! DIAGNOSTICS In Diagnostics Screen: 1. Ground distance values (raw, filtered, and calibrated values) o Raw = Unfiltered signal from radar o Filtered = Signal from radar with filtering, sensors actual distance to ground o Calibrated = Filtered value with calibration offset, presents working height...
- Page 37 9. Offset values. o Offset value (set by the user) during calibration 10. NEXT VT (change the ISOBUS UI priority when multiple ISOBUS implements) Measurement unit is millimeters (mm) unless stated otherwise. HELP In Help Screen you can see active errors and descriptions and find the ACCESS portal QR code for Operator’s Manual.
- Page 38 Once the system is on AUTO, the top link will move automatically to keep the implement levelled. You can also observe (and adjust) the height of the implement if necessary (you can often find the correct height for the implement in the implement manual). On transport, the Smart Top Link should be turned off for safety reasons.
- Page 39 Smart Top Link is installed in an AGCO Customization studio as an option and covered by one year of factory warranty. All the components are installed on the factory assembly line and tested to be functioning in the installed machine as they should.
