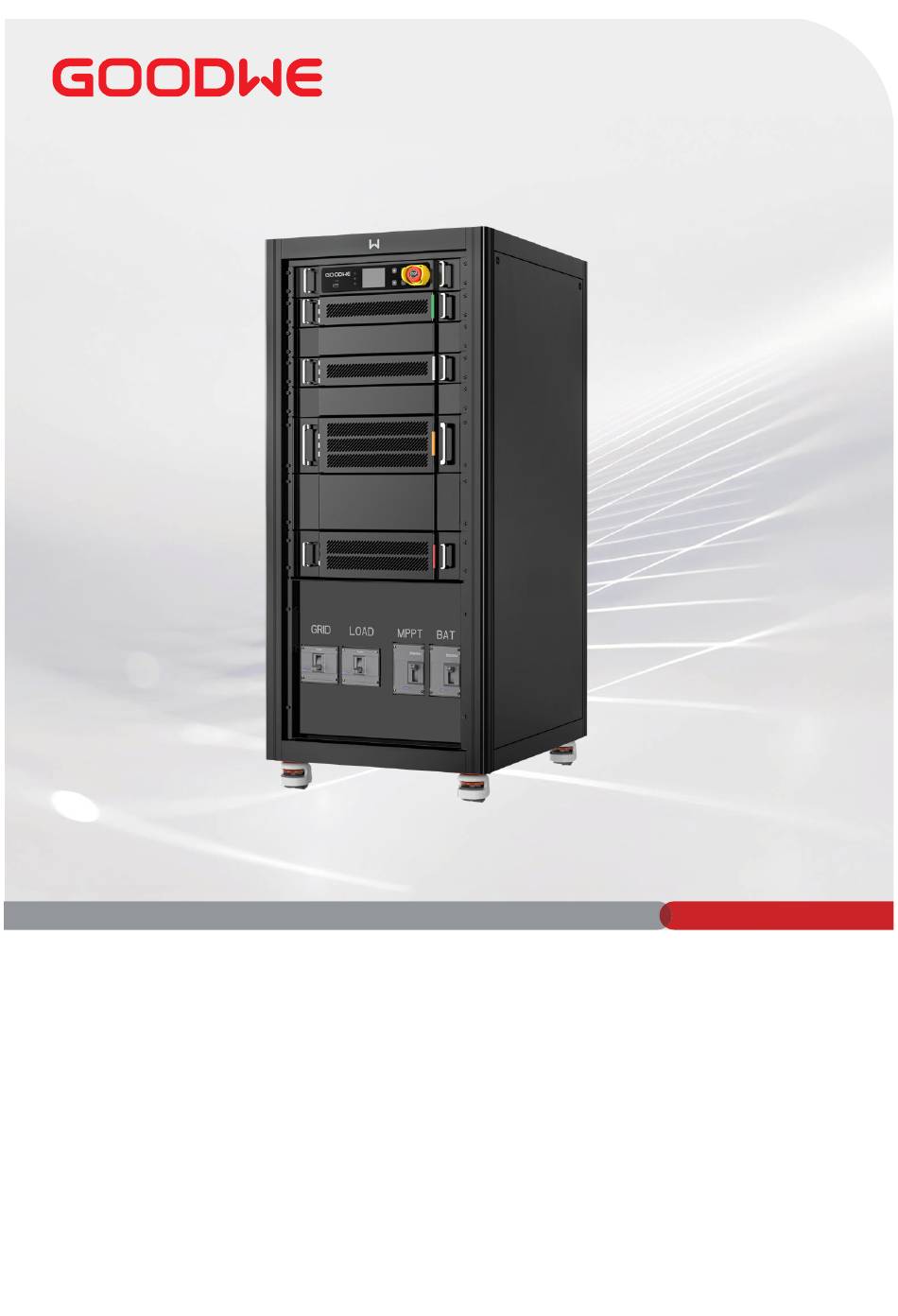

- Page 1 Quick Installation Guide Hybrid Inverter ETC Series (GW50K-ETC) AC-Coupled Inverter BTC Series (GW50K-BTC) V1.0 2023-05-10...
- Page 2 • Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit https://en.goodwe.com/ warranty. Safety Disclaimer...
- Page 3 Product Enclosure: 1. Do not apply mechanical load to the terminals, otherwise the terminals can be damaged. 2. All labels and warning marks should be visible after the installation. Do not scrawl, damage, or cover any label on the device. 3.
- Page 4 EU Declaration of Conformity GoodWe Technologies Co., Ltd. hereby declares that the inverter with wireless communication modules sold in the European market meets the requirements of the following directives: • Radio Equipment Directive 2014/53/EU (RED) • Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS) •...
- Page 5 Cable Requirements No. Type Specification DC Input Cable Two single-core outdoor copper-core cables or aluminum cables (MPPT) are needed per MPPT; (PV+ and PV-:M8 OT Terminals) DC Power Cable Copper Cable Conductor Cross Sectional Area: 35-50mm (BATTERY) Aluminum Cable Conductor Cross Sectional Area: ≥50mm Single-core Outdoor Copper-core Cable M8 OT Terminal PE Cable Copper Cable Conductor Cross Sectional Area: 35-50mm...
- Page 6 10. DC Input Circuit Breaker (MPPT) 11. Heat Dissipation Hole 12. Communication Cable Port 13. DC Input Terminal (MPPT) 14. Battery DC Terminal (BAT) 15. Load Terminal (LOAD) 16. PE Terminal 17. AC Output Terminal (GRID) [1], [2] For ETC series Only.
- Page 7 Dimensions Side Front Inverter Installation N = Quantity depends on the inverter model.
- Page 8 Space Requirements Angle Requirements...
- Page 9 Installing the Inverter Fixing the Cabinet Lifting the Cabinet Electrical Connection Opening the Compartment Door...
- Page 10 PE Cable Connecting the AC Output Cable, Load Output Cable, Battery Cable, and PV Input Cable PV Input Cable only for ETC series.
- Page 11 Communication Cable NOTICE The communication cables are connected to the terminal block in the same way. Take RS485_1 as an example to illustrate the steps here. Communication Cable Board Definition DRY_OUT CAN_2 485_2 485_3 485_1 Function Reserved Reserved Reserved Meter Definition DRED DRY_IN1...
- Page 12 Connecting to the RJ45 Terminal Color Orange&White 1 2 3 4 5 6 7 8 Orange Green&White Blue Blue&White Green Brown&White Brown Compartment Door Install the compartment door after the cable connection is completed. Cut a hole using a utility knife, as the cable inlet hole is not reserved.
- Page 13 Closing the Compartment Door...
- Page 14 Power On and Off ETC Series Router SEMS GM3000C RJ45 PV String Main Meter Grid External CT BACK-UP Load Loads Battery ① ② ③ ④ Model 125A/1000V 125A/415V AC 125A/415V AC Depends on GW50K-ETC DC Breaker breaker(GRID) breaker(BACK-UP) loads Power On...
- Page 15 BTC Series SEMS Router RJ45 GM3000C Main Meter Grid External CT BACK-UP Load Loads Battery ① ② ③ ④ Model 125A/400V 200A/400V AC 125A/400V AC Depends on GW50K-BTC breaker(GRID) breaker(BACK-UP) loads Breaker Power On Turn on Power Off Turn off...
- Page 16 Commissioning via LCD NOTICE • Power on the inverter, the LCD of the monitoring unit will be started, and enter the homepage. • To enter the Settings interface, contact GoodWe service center to obtain the password. Commissioning via SolarGo App play SolarGo App Store <10m...
- Page 17 Offical Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com Local Contacts 340-00715-00...
