Lionelo Emma Plus Manual

SAFETY PRECAUTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Note: The assembly of the product must be performed by an adult.
Failure to comply with this provision and the assembly instructions could result in serious injury or even death.

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. This seat unit is not suitable for children under 6 months.
6. Always use the restraint system.
7. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
8. This product is not suitable for running or skating.
9. The suitable age range is from 6 months to 36 months and the maximum loading weight is 15 kgs.
10. When placing / removing a child into / from the stroller, the parking device must be pulled.
11. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
12. The trolley is designed for use by one child.
13. Accessories which are not approved by the manufacturer shall not be used.
14. Only the spare parts supplied by the manufacturer can be used with this stroller.
15. The maximum load of the shopping basket is 3 kg.
16. Child's tray can hold a maximum weight of 0.5 kg.
17. Maximum load capacity of the parent tray is 0.3 kg.
18. The pocket on the back of seat unit can hold a maximum weight of 0.2 kg.
19. All the components of the stroller should be regularly checked to ensure they operate properly.
20. Do not use the product on stairs.
21. The parent bag included in the kit must not be hung on the frame of the stroller - it is a shoulder bag.

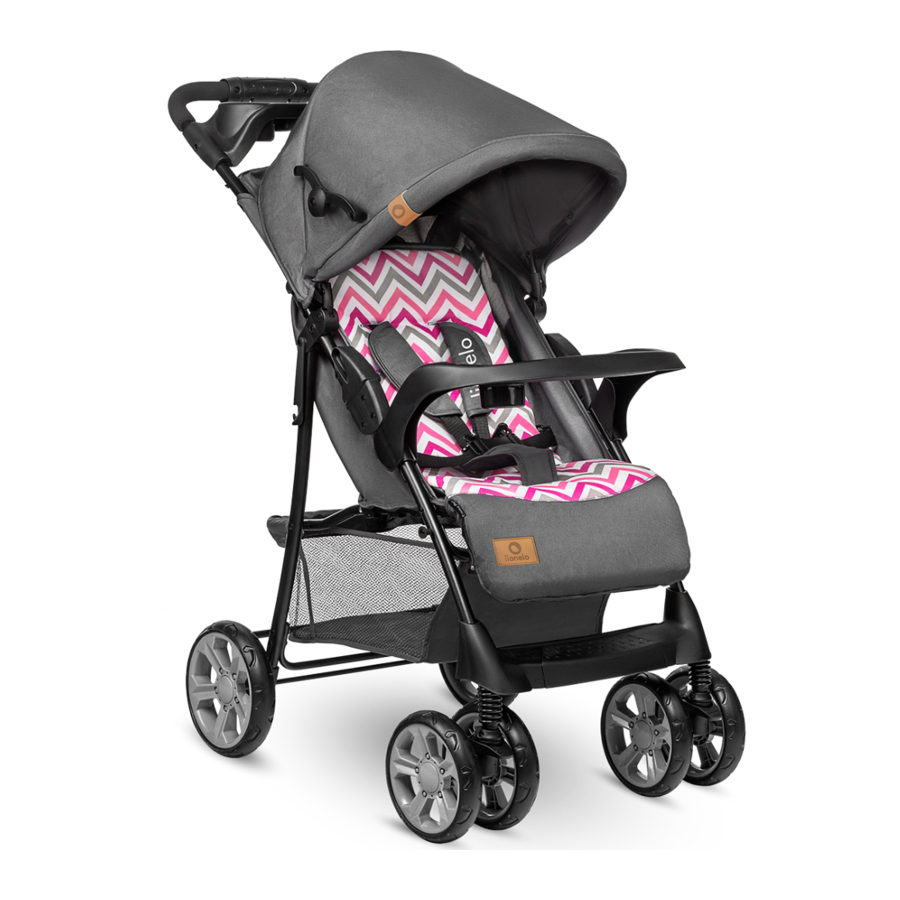

Description

fig.1

1. Folding button
2. Handle
3. Parent Tray
4. Folding / unfolding lock
5. Backrest adjuster
6. Organizer
7. Parking device
8. Rear wheels
9. Canopy
10. Tray
11. Safety belts
12. Footrest
13. Footrest adjustment
14. Front wheels

Unfolding

The plastic cover should be removed before assembly (fig. 2a).

fig.2a

1. Release the unfolding lock (fig. 2).

   fig.2
2. Move the handle up, while pushing the rear lock down.
3. Unfold the canopy (fig. 4).

   fig.4
4. Insert the tray on both sides of the trolley frame (fig. 3).

   fig.3

Folding

1. Fold the canopy (fig. 5).

   fig.5
2. Before folding the stroller, lower the backrest at the maximum.
3. Move up the rear lock.

   fig. 6
4. Fold the frame (fig. 7).

   fig. 7
5. Secure the frame with the lock (fig. 8).

   fig. 8

Wheels installation

1. Insert the front wheel's stem into the front guide and push the wheel's stem until the lock snaps into place (fig. 9).

   fig. 9
   Please ensure that the wheel has been properly installed and locked in the guide.
2. Insert the rear wheels' stem into the rear guides and push it until the lock snaps into place (fig. 10).

   fig. 10
   Please ensure that the wheel has been properly installed and locked in the guide.
3. Place the buttons on each side of the axle and put on the wheels (fig. 11).

   fig. 11
4. After you install the wheels on the axle, put on another shims and secure them with cotters. Then, put on a rim cover (fig. 12).

   fig. 12
   Please ensure that the wheel has been properly installed and locked.

Usage

1. Front wheel lock (fig. 13).

   fig. 13
2. Unfolding the canopy (fig. 14).

   fig. 14
3. The front wheels rotate around their axis, but it is also possible to lock them so that the stroller can be pushed straight ahead.
4. Parking device: press to lock the stroller. Lift to unlock it.
5. The backrest adjustment bucket is located behind the backrest (fig. 15).

   fig. 15
6. Footrest adjustment button (fig. 16)

   fig. 16
7. The stroller's footrest can be adjusted to 2 different positions. In order to do so, press the footrest adjustment button.

Safety belts

Note: Make sure that the position of the safety belts is correct and they are not twisted.

1. Connect the upper and lower belt elements (fig. 18),

   fig. 18
   and then place the whole assembly in the buckle (fig. 19). Perform this action on both sides. Correct installation will be indicated by a "click" sound.

2. To adjust the belt length, slide the belts through the respective buckles located on the right and left belt (fig. 20).

   fig. 20
3. To unfasten the belts, press the button located in the middle of the buckle (fig. 17).

   fig. 17

Maintenance

The stroller's frame can be cleaned with a damp cloth. Clean the padding with a soft brush. Air dry only. Do not machine wash or use iron. The fabric cover can be washed by hand in a maximum temperature of 30ºC.
You should regularly check particular parts of the stroller for their functions and endurance.

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.
