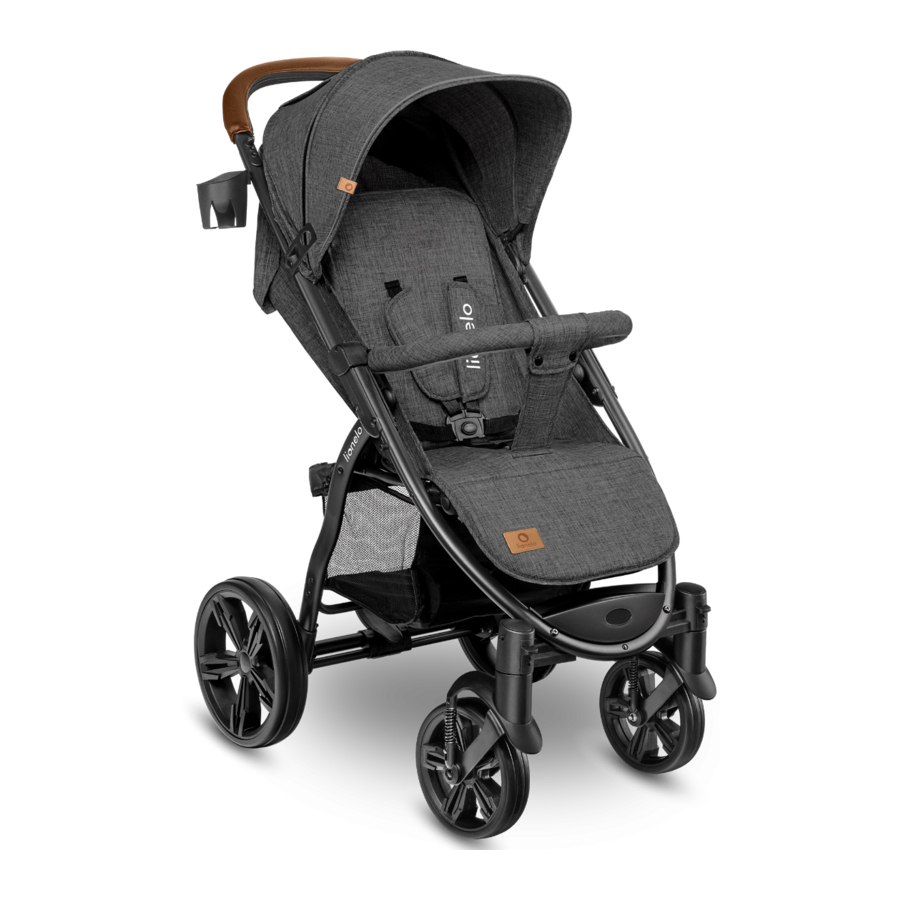

Lionelo Annet Plus Manual

Safety Instructions

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Note: The product must be assembled by an adult only. A failure to follow these warnings and assembly instructions may lead to serious injuries or death.

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. Always use the restraint system.
6. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
7. This product is not suitable for running or skating.
8. The vehicle is suitable for a child up to 22 kg or up to 4 years (whichever comes first).
9. For new born babies it is recommended to use the most reclined position.
10. If you want to take the child out of the stroller or put it in, make sure the parking device is locked up.
11. Maximum permissible load of the basket is 3 kg. The maximum load of the cup holder is 0.5 kg. The maximum allowable load for the pockets is 0.2 kg.
12. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
13. The vehicle shall be used by only one child at a time.
14. Accessories which are not approved by the manufacturer shall not be used.
15. Only replacement parts supplied or recommended by the manufacturer shall be used.
16. Do not use the product on stairs.

Description

Fig.11

1. Handle
2. Fold button
3. Assembly lock
4. Safety belts
5. Parking device
6. Basket
7. Rear wheel
8. Canopy
9. Window
10. Adjustable backrest
11. Bow-shaped handle
12. Additional crotch strap
13. Footrest
14. Front wheel
15. Pocket for mosquito net

How to assemble the stroller

1. Release the assembly lock.

2. Lift the handle until you can hear a click.


How to assemble front wheels

1. Insert the metal shank of the front wheel in the guide.

2. Press the wheel until you can hear a click.


How to assemble rear wheels

1. Insert the rear axis mechanism with a parking device in the frame, press on both sides until you can hear a click. Make sure to install the rear frame in the correct way, as indicated in figure number 3.

2. Insert a metal shank of the rear wheel in the axis, press until you can hear a click.


How to lock wheels

1. Set front wheels straight and then press down the lock. The wheels will stop rotating. Lift to unlock it.

2. Parking device: press to lock the stroller. Lift to unlock it.


How to assemble the bow-shaped handle

1. Push the guides of the bow-shaped handle inside the grips.

2. Press the bow-shaped handle until you can hear a click. Fasten the extra crotch strap on the bow-shaped handle. The additional crotch strap must always be fastened with the bow-shaped handle.

3. Press the buttons located from the inside to release locks and remove the bow-shaped handle.


How to unfold the canopy

Pull the canopy forward to unfold it.

How to adjust footrest and backrest

1. Footrest adjustment: Press buttons on both sides of the footrest and lift it or slide down, as desired, then release buttons. The correct position will be indicated by a click.

2. Backrest adjustment: Lift the lever in the back of the backrest, next adjust the backrest and release the lever.


Belt height adjustment

To adjust length of belts, pull them through relevant loops in the seat so that they correspond to child's height.

How to use safety belts

Join the belt (A) and the belt (B) together with a quick coupling.

Do the same on the other side. Insert the belt connector (C) in the handle (D).

Do the same on the other side. To adjust the belts, slide the adjustment handle (E) up or down by tightening or releasing the belt.

To disassemble safety belts, slide the buckle through the opening in the seat. To assemble, put the safety belts back again. Seat belts must be used from birth.

How to disassemble the stroller

Fold the canopy.

Next lift assembly buttons on both sides of the handle, then slide handles forward and downwards until the stroller folds. The lock will snap automatically. To confirm this, a click sound will be audible.

Cleaning and maintenance

Wipe the frame of the stroller with a wet cloth. The fabric cover can be washed by hand in a maximum temperature of 30ºC.
The individual parts of the stroller should be regularly checked for functionality, durability and any possible damage. In the event of any faults, contact the authorized service centre.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

Should you have any remarks or questions concerning the product, please do not hesitate to contact us:

help@lionelo.com

www.lionelo.com
