ASSEMBLY INSTRUCTION

PRODUCT CODE: HOCHD00039

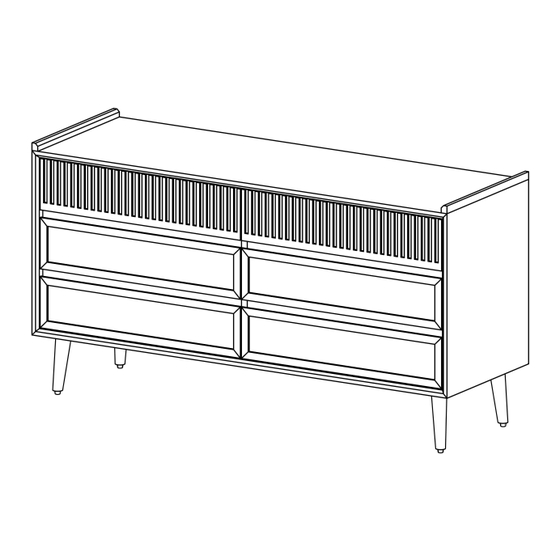

Cosmo 6 chest of drawer

Requirement for Assembly

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

2 PERSONS RECOMMENDED

1/5

Need help?

Do you have a question about the Cosmo HOCHD00039 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION PRODUCT CODE: HOCHD00039 Cosmo 6 chest of drawer Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. 8 pcs Allen Bolt M8x20mm 1 pcs Allen key No. 5 8 pcs Round Washer 8.5mm...
Page 3 STEP01 Flip the Part- A on carpet as shown in fig. STEP02 Fix the Part-B and Part -A with washer and allen bolt of M8x20 mm using Allen key at position A1,A2,A3 and A4 as shown in fig.
Page 4 STEP03 Flip the table and your table is ready to use.
Page 5 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
