Furn Mill HUGO HOCHR00337 Assembly Instruction

Accent chair

ASSEMBLY INSTRUCTION

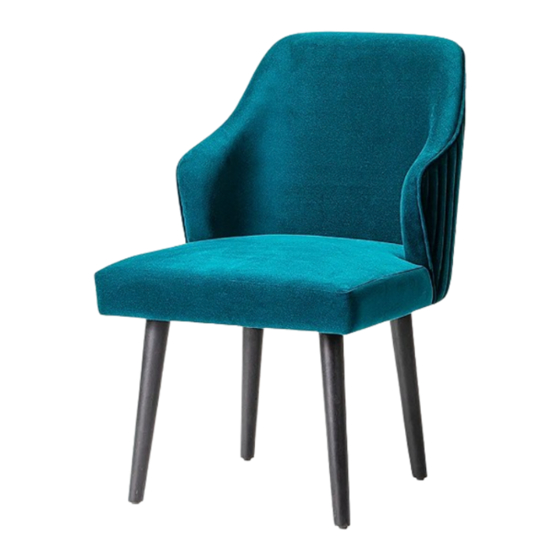

HUGO ACCENT CHAIR

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

PRODUCT CODE:HOCHR00337

Requirement for Assembly

2 PERSONS RECOMMENDED

1/5

Table of Contents

Do you have a question about the HUGO HOCHR00337 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION HUGO ACCENT CHAIR PRODUCT CODE:HOCHR00337 Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult). For most products, two persons are recommended.
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. 1 nos Allen key No.5 Allen Bolt- M8x35mm 5 nos 8 nos Allen Bolt- M8x20 mm...
Page 3 STEP 01 Turn part B as shown in fig. STEP 02 Fix the Part-A & Part-B with using Allen bolt -35mm with help of Allen key at Five position as shown in Fig.
Page 4 STEP 03 Fix the Part-C & last assembled part with using Allen bolt - 12mm with help of Allen key as shown in Fig. Turn the chair and your chair is ready to use.
Page 5 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
