ASSEMBLY INSTRUCTION

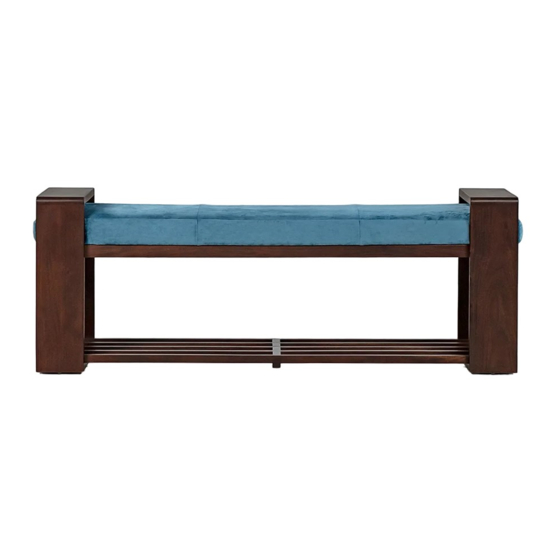

COLLAB SHOE RACK
PRODUCT CODE: HOCHR00140; 293; 330 and 414
Requirement for Assembly
ASSEMBLY RATING
The Assembly Rating is a 5-point
system that shows the degree of effort
needed in assembling a specific
product (with 1 being easy and 5 being
difficult).
For most products, two
persons are recommended.
EASY
DIFFICULT
2 PERSONS RECOMMENDED
1/1
Advertisement
Table of Contents
Related Manuals for Furn Mill HOCHR00140
Summary of Contents for Furn Mill HOCHR00140
- Page 1 ASSEMBLY INSTRUCTION COLLAB SHOE RACK PRODUCT CODE: HOCHR00140; 293; 330 and 414 Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
- Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. M8x35mm Allen key No. 5...
- Page 3 STEP01 STEP 01 Flip part A and Part B. Fix part A and part B with Allen bolt using Allen key as shown in fig. STEP02 Insert Part C in last Assemble part as shown in fig.
- Page 4 STEP03 Allen key Allen Bolt Fix part c using Allen bolt at position B1,B2,B3 &B4 with the help of allen key as shown in fig. STEP04 Flip the Product. Your Shoe Rack is Ready...
- Page 5 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
