ASSEMBLY INSTRUCTION

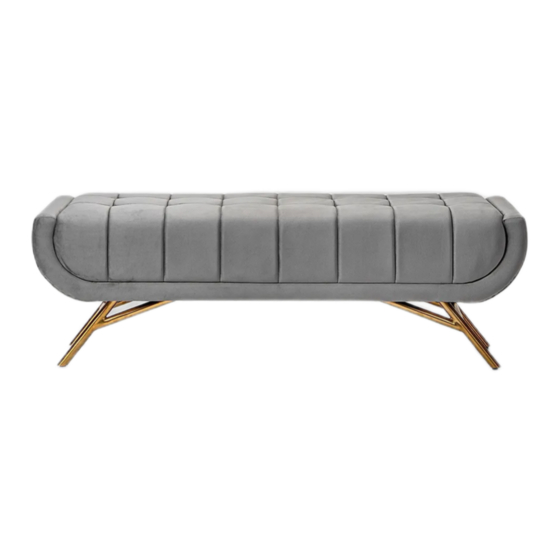

THEO BENCH

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

PRODUCT CODE:

HOCHR00316(Grey)

HOCHR00317(Blue)

HOCHR00318(Mauve)

HOCHR00319(Green)

Requirement for Assembly

2 PERSONS RECOMMENDED

1/5

Need help?

Do you have a question about the HOCHR00316 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION PRODUCT CODE: HOCHR00316(Grey) THEO BENCH HOCHR00317(Blue) HOCHR00318(Mauve) HOCHR00319(Green) Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult).
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. 1 pcs Allen key No.5 16 pcs Allen Bolt- M8x20mm...
Page 3 STEP 01 Flip Part-A on soft mattress . STEP 02 Fix the Part-A & Part-B(1) with using Allen bolt M8x20mm with help of Allen key at position 1 as shown in Fig.
Page 4 STEP 03 Fix the Part-A & Part-B(2) with using Allen bolt M8x20mm with help of Allen key at position 2 as shown in Fig. STEP 04 Flip the chair and your chair is ready to use.
Page 5 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
