ASSEMBLY INSTRUCTION

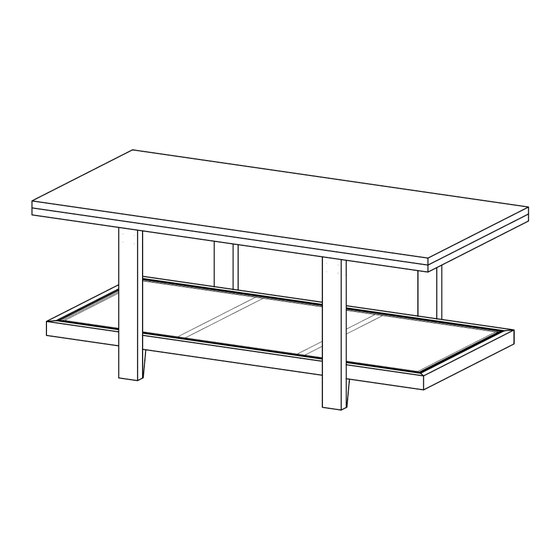

Hilton Centre Table
PRODUCT CODE: HOCTA00127
Requirement for Assembly
ASSEMBLY RATING
The Assembly Rating is a 5-point
system that shows the degree of effort
needed in assembling a specific
product (with 1 being easy and 5 being
difficult).
For most products, two
persons are recommended.
EASY
DIFFICULT
2 PERSONS RECOMMENDED
1/5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hilton Centre Table HOCTA00127 and is the answer not in the manual?

Questions and answers

Related Manuals for Furn Mill Hilton Centre Table HOCTA00127

Summary of Contents for Furn Mill Hilton Centre Table HOCTA00127

  • Page 1 ASSEMBLY INSTRUCTION Hilton Centre Table PRODUCT CODE: HOCTA00127 Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult). For most products, two persons are recommended.

  • Page 2: Hardware Detail

    HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. Allen Bolt 8 pcs M8x35mm 8 pcs Allen Bolt M8x20mm 1 pcs Allen key No. 5 Spring Washer 8 pcs 8.5mm Round Washer 8 pcs 8.5mm...
  • Page 3 STEP01 Flip the Part- A on carpet as shown in fig. STEP02 Fix the Part-B and Part -A with spring washer and allen bolt of M8x20 mm using allen key at position A1,A2,A3 and A4 as shown in fig.
  • Page 4 STEP03 Fix the Part-C and last assembled part with round washer and allen bolt 35 mm using allen key at position B1,B2,B3,B4 respectively as shown in fig. STEP04 Flip the table and your table is ready to use.

  • Page 5: Care Instructions

    Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase.
