Furn Mill HOCTA00046 Assembly Instruction

Archive centre table

ASSEMBLY INSTRUCTION

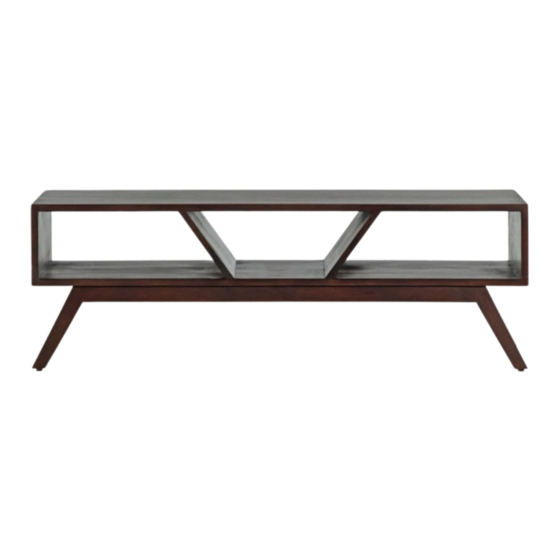

Archive Centre Table

ASSEMBLY RATING

The Assembly Rating is a 5-point

system that shows the degree of effort

needed in assembling a specific

product (with 1 being easy and 5 being

difficult).

For most products, two

persons are recommended.

EASY

DIFFICULT

PRODUCT CODE:HOCTA00046

Requirement for Assembly

2 PERSONS RECOMMENDED

1/1

Table of Contents

Do you have a question about the HOCTA00046 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION Archive Centre Table PRODUCT CODE:HOCTA00046 Requirement for Assembly ASSEMBLY RATING The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being easy and 5 being difficult). For most products, two persons are recommended.
Page 2 HARDWARE DETAIL ASSEMBLED PRODUCT HARDWARE QTY. Allen bolt M8x50mm Allen key (no. 5)
Page 3 STEP01 Flip the PART-A as shown in Fig. STEP 02 STEP 03 Flip the Unit. Fix the PART-B(leg) with Allen Bolt using Your Table is Ready to Use. Allen Key at position A1,A2,A3,A4,A5&A6 as shown in Fig.
Page 4 Thank you for your purchase! We hope you will enjoy your new product for many years to come. Our commitment to providing quality products does not simply end when a purchase is made. We stand behind our products and will provide any support needed in order for you to fully enjoy your purchase Your satisfaction is the will provide any support needed in order for you to fully enjoy your purchase.
