Installation, Operation & Maintenance Instructions
DESCRIPTION

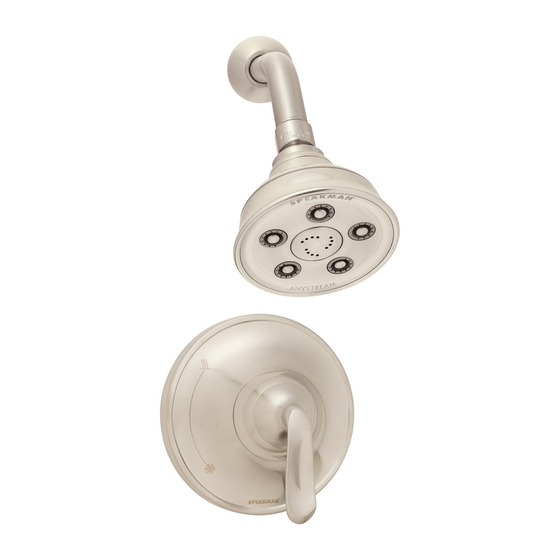

Speakman Caspian™ Collection Combination SM-7010 includes: Shower Valve Trim (CPT-7000), Shower Arm
with Wall Flange (S-2500) and Multi Function Shower Head (S-3014). This combination does include the
Shower Valve.
This combination comes with the following Speakman
Sentinel Mark II® Pressure Balance Shower Valve
CPV-PB:
SPECIFICATIONS
CPV-PB SENTINEL MARK II® PRESSURE BALANCE SHOWER VALVE:
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Certified / ASSE 1016 Certified
CPT-7000 CASPIAN™ COLLECTION SHOWER VALVE TRIM:
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-2500 CASPIAN™ COLLECTION SHOWER ARM WITH WALL FLANGE:
CONNECTIONS: ½" NPT Male Inlet & Outlet
S-3014 CASPIAN™ COLLECTION MULTI FUNCTION SHOWER HEAD:
CONNECTIONS: ½" NPT Female Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
INSTRUCTIONS
See individual products for installation of the components and warranty information.
SPEAKMAN
SM-7010
CASPIAN™ COLLECTION COMBINATION SERIES
Pressure Balance Shower Valve
Sweat & Thread Connections
SPEAKMAN
Phone: 800-537-2107
01/03/19
www.speakman.com
®
®
Fax: 800-977-2747
92C-SM-7010-01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Speakman CASPIAN SM-7010
Summary of Contents for Speakman CASPIAN SM-7010
- Page 1 Installation, Operation & Maintenance Instructions CASPIAN™ COLLECTION COMBINATION SERIES DESCRIPTION Speakman Caspian™ Collection Combination SM-7010 includes: Shower Valve Trim (CPT-7000), Shower Arm with Wall Flange (S-2500) and Multi Function Shower Head (S-3014). This combination does include the Shower Valve. This combination comes with the following Speakman Sentinel Mark II®...
- Page 2 ROUGH-IN SPEAKMAN ® Phone: 800-537-2107 Fax: 800-977-2747 01/03/19 www.speakman.com 92C-SM-7010-01...
-
Page 3: Maintenance
The use of Saw or similar tool, cut along traced line and harsh chemicals and abrasives on any of the Speakman remove this section of wall. custom finish products may damage the finish and void the product warranty. -
Page 4: Back-To-Back Installation
COPPER SWEAT INSTALLATION PIPE FITTING INSTALLATION When performing a Copper Sweat installation, it is recommended that you remove the Valve Cartridge ❹, Integral Stops ❷ ❸ Connect the HOT and COLD Water Supply Lines (not included), the Shower Outlet Pipe (not included), ❺, and Diverter Cartridge ❷... - Page 5 NOTE: A thermometer can be held at the Valve outlet to aid in either checking the existing factory setting or reaching the desired outlet temperature. Reinstall Rough-In Template over Valve to protect it during final wall preparation. Secure into position with the included screws. SPEAKMAN CPV-PB / CPV-PB-DV SERVICE INSTRUCTIONS CPV-PB / CPV-PB-DV REPAIR PARTS ®...
- Page 6 SPEAKMAN CPV-PB ROUGH-IN DIAGRAM ® NOTES: COMPLIANCE: ASME A112.18.1/CSA B125.1 1" 25mm ASSE1016/ASME A112.1016/CSA B125.16 HOLE FOR SHOWER ARM 6'-6" [2 METERS] TO FLOOR CONNECTIONS: 5-1/2" (140MM) DIA. 1/2" NPT MALE Hot/Cold Inlets: ½” Female Copper Sweat HOLE FOR 1/2" SWEAT VALVE ACCESS ½”...
- Page 7 92-3268-R2...
- Page 8 RPG05-0874 RPG10-0097-(PC,BN,PN) RPG04-0391-(PC,BN,PN)
-
Page 9: Rough-In Dimensions
Pipe Fitting within the wall. Firmly tighten, 1/2" NPT THREADS BOTH ENDS and make sure Shower Arm (2) Outlet is For additional assistance or service please contact: pointing in a downward position. 45.00° " SPEAKMAN INLET ® Company 42mm " 21mm 400 Anchor Mill Road New Castle, DE 19720 7"... - Page 10 Chrome. Model: S-3014-E2 To reduce mineral build-up, turn the handle to FLOOD Max. Flow Rate: 2.0 gpm (7.6 L/min) SPEAKMAN position to let the water drain out after every use. ® Company Min. Flow Rate: 1.5 gpm (5.7 L/min) @ 45psi...
