Installation, Maintenance & Operation Instructions

DESCRIPTION

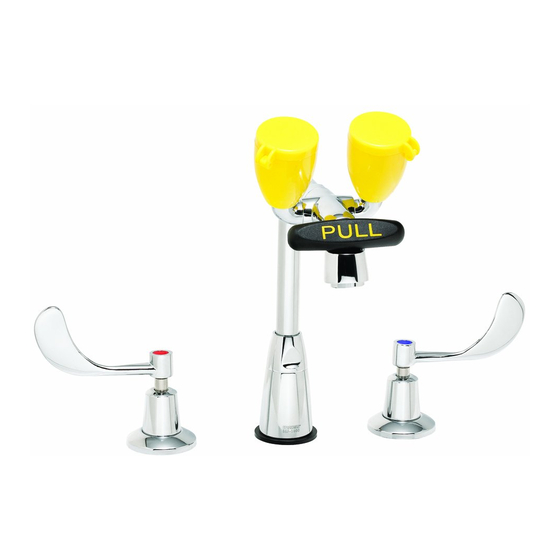

The SEF-1800 Eyesaver
The faucet features ¼ turn Speakman Ceramic Perfect
sprays and flip top dust covers.

SPECIFICATIONS

Operation: Eyewash and faucet operate independently of each other
SUPPLY: ½" male connections for hot and cold inlets
WIDESPREAD VALVES: Perfect® valves with 1/4 turn ceramic cartridges covered by a 25 year
warranty
FINISH: Chrome plated brass
FAUCET HANDLES: Vandal-resistant 4" wrist handles with color- coded indexes
EYEWASH ACTIVATION: Pull handle with graphics
EYEWASH SPRAYS: Aerated sprays.
FAUCET FLOW RATE: Autoflo® device controls flow to 2.2 GPM/ 8.3 LPM
EYEWASH FLOW RATE: 2.6 GPM at 30 psi. flowing. See flow data chart for additional information.
COUNTER THICKNESS: Up to 2" thick
CENTER DISTANCE: Adjustable centers of 6" to 12"
PRESSURE: 30 psi. minimum flow pressure, 125 psi. maximum static pressure
APPROVALS: Meets ASME A112.18.1, ANSI Z358.1 and CSA B125-98
VACUUM BREAKER (ST option): Approved by ASSE, UPC and CSA. Meets the ANSI/ASSE 1035
standard for "Laboratory Faucet Vacuum Breakers", CSA B64.8 and UPC.
SHIPPING WEIGHT: 10 LBS.
IMPORTANT: The supply line for plumbed units shall provide an uninterruptible supply of flushing fluid at
a minimum of 30 psi . of flow pressure. If shut off valve are installed in the supply line of the eyewash for
maintenance purposes, provisions shall be made to prevent unauthorized shut off.
Page 1 of 6
SPEAKMAN SAFETY PRODUCTS
SEF-1800 EYESAVER
®

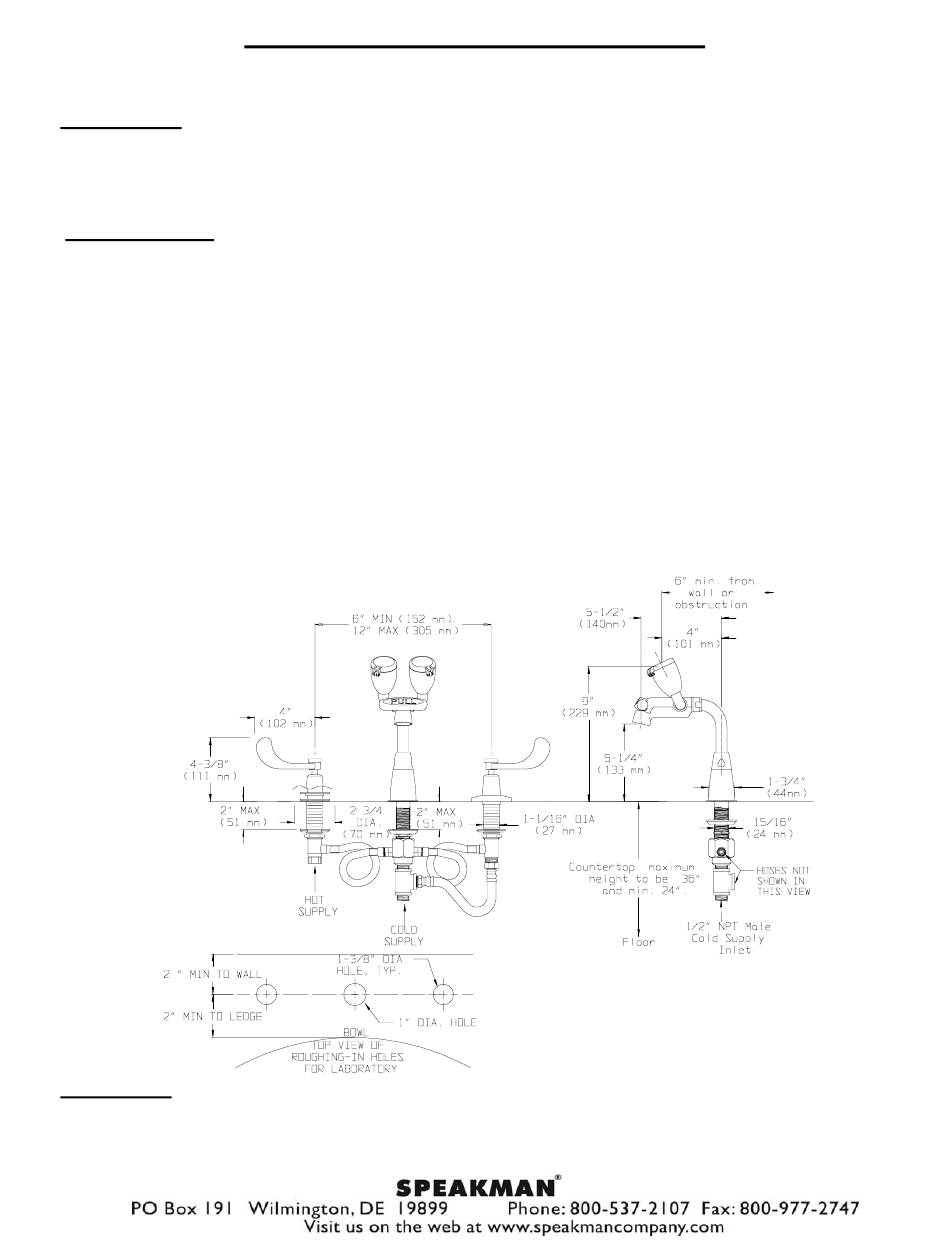

faucet combines a gooseneck faucet with an independently operated eyewash.
®
FAUCET
®
Valves while the eyewash offers twin aerated
Notes: All dimensions are in inches
(millimeters) unless otherwise
specified and are subject to change.
9/06 rev.7
92-2140
