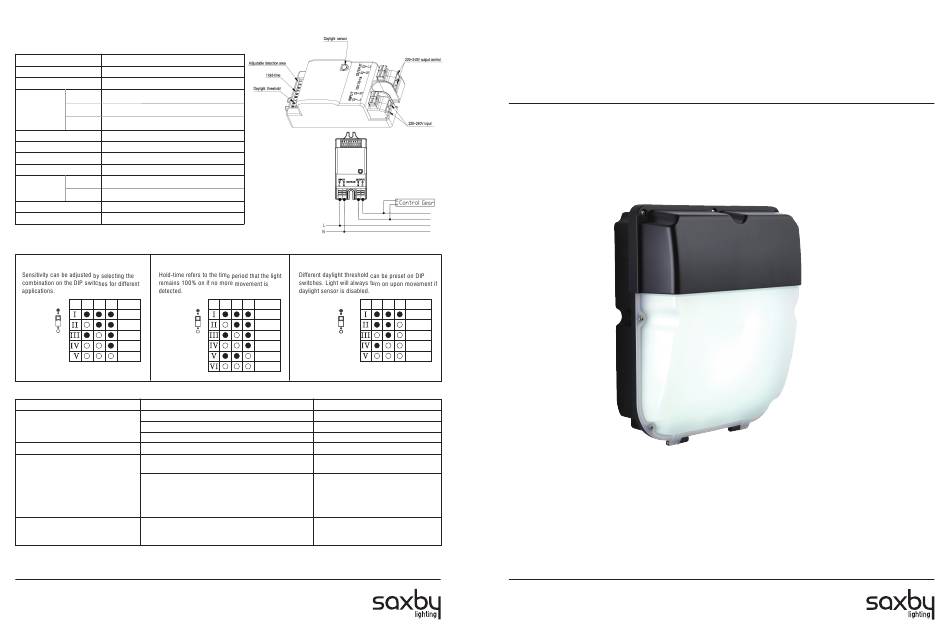

Saxby Lighting Lucca CCT MW Instruction Manual

Microwave Movement Sensor
This product is fitted with a microwave movement sensor. Please see below detailed operating instructions.
Technical Specifications:
Operating voltage 220 ~ 240V AC 50/60Hz
Rated load 400W (Capacitive load) 800W (Resistive load)
Stand-by power ≤0.5W
Ceiling mounted
100% / 75% / 50% / 25% / 10%
height: 3m
Sensitivity
Ceiling mounted 100% / 75% / 50%
height: 6m *
Wall mounted
100% / 75% / 50% / 25% / 10%
height: 2m
Hold-time 5s / 30s / 90s / 3min / 20min / 30min
Daylight sensor 2Lux / 10Lux / 25Lux / 50Lux / Disable
Microwave frequency 5.8 GHz ±75MHz
Transmitting power 1mW Max.
Ceiling mounted 3- 6m (radius )
Detection range
height: 3m
Wall mounted 12-15m
height: 1.5-2m
Detection angle 360 (Ceiling) / 120 (Wall)
0 0
Working temperature -20 0 C ~ 60 0 C
*
50%, 75%, 100% detection sensitivity is workable when installed at 6m mounting height. Only 10%, 25%
tion signal.
sensitivity is not able to detect mo
Settings:
1. Sensitivity 2. Hold-time
1 2 3
I –100% I – 5s
100%
II – 75% II – 30s
III – 50% 75% III – 90s
IV – 3min
IV – 25% 50%
V – 20min
V – 10%
25%
VI – 30min
10%
Trouble shooting:
Malfunction Cause Remedy
Incorrect light-control setting selected
The light will not come on Faulty lamp
No power supply
The lamp is always on
Continuous movement in the detection zone
The sensor is not mounted for reliably
detecting movement
The lamp is on without any
identifiable movement
Movement occurred, but not identified by the
sensor (Movement behind wall, movement of
small object in immediate lamp vicinity etc.)
Rapid movements are being suppressed to
The lamp will not work
minimize malfunctioning or the detection
despite movement
radius is too small.
For further information, please visit https://www.lighting-info.co.uk/114570
V1 18/09/2024
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
3. Daylight sensor
4 5 6 7 8 9
I – 2Lux
5s
II – 10Lux
30s III – 25Lux
IV – 50Lux
90s
V – Disable
3min
20min
30min *Disable means the daylight sensor does not work. The sensor will turn
on light once motion is detected regardless of ambient light level.
Cause Remedy
Adjust daylight threshold setting
Replace lamp
Check power to sensor
Check detection area setting
Securely mount enclosure
1. Reduce sensitivity.
2. Check the movement behind
walls to avoid facilities such as
water pipe, fan, which may
mis-trigger the sensor.
Check detection area setting
Instruction manual
Lucca CCT MW
114570
2Lux
10Lux
25Lux
50Lux
Disable*
www.saxbylighting.com
