Stepped Dim Microwave Movement Sensor
This product is fitted with a stepped dim microwave movement sensor. Please see below detailed operating instructions.
MULTI-FUNCTION SENSOR SPECIFICATIONS:
DC Input Voltage
12±1V DC
Rated Voltage
12±0.6V DC
Stand-by Power
<0.5W
Efficiency
≥80%
Operating Frequency
5.8 GHz ±75 MHz
Transmitting Power
0.5mW Max.
Hold Time
5s / 90s / 3min / 10min
Stand-by DIM Level
20%
Stand-by Period
0s / 30s /10min /
+∞
Detection Area
100% / 75% / 50% / 25%
Daylight Sensor
5Lux / 15Lux / 50Lux / Disable
Detecting Radius
5m (mounting height 3m)
Mounting Height
4m Max
Detecting Angle
150º
Operating Temperature
-25ºC...+60 ºC
Temperature: -40ºC...+80ºC;
Storage Temperature
Humidity: 10% - 95% (non-condensing)
Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and
walking speed is 0.3m/s.
FUNCTION:
1) On/OFF function (stand-by period be set to "0"s)
With sufficient ambient
With insufficient ambient
After elapse of hold time, the
light, the light will not be
light, the sensor switches
sensor switches off the light
switched on even if with
on the light when motion
when no motion is detected.
motion signal.
is detected.
3) step dimming function (stand-by period be set to "10s / 1min / 3min / 5min / 10min / 30min")
With sufficient ambient
With insufficient ambient
After elapse of hold time, the
light, the light will not be
light, the sensor switches
sensor dims the light at a low
switched on even if with
on the light when motion
light leven if no new motion
motion signal.
is detected.
is detected.
DIP SWITCH SETTING:
1. Detection Area
2. Hold Time
1 2
3 4
I –100%
I –
5s
100%
II – 75%
II –
90s
75%
3min
III – 50%
III –
IV – 25%
50%
IV –
10min
25%
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
V1 16/01/2021
Saxby Lighting. BH17 7BY
2) step dimming function (stand-by period be set to "+∞")
If there is no motion
When motion is detected,
After elapse of hold time, the
detected, the light will be
the sensor will switch on the
sensor dims the light at the
remained at a low light
light to 100% brighteness.
present low light leven if no
level all the time.
motion is detected.
after elapse of standby period,
the sensor switches off the
light if no motion is detected
in the detection zone.
3. Daylight Sensor
4. Stand-by Period
5 6
I – +∞
I – 0s
5s
+∞
II –
50Lux
II –
30s
90s
15Lux
50Lux
10min
III –
III –
3min
IV –
5Lux
15Lux
IV – +∞
10min
5Lux
Instruction manual

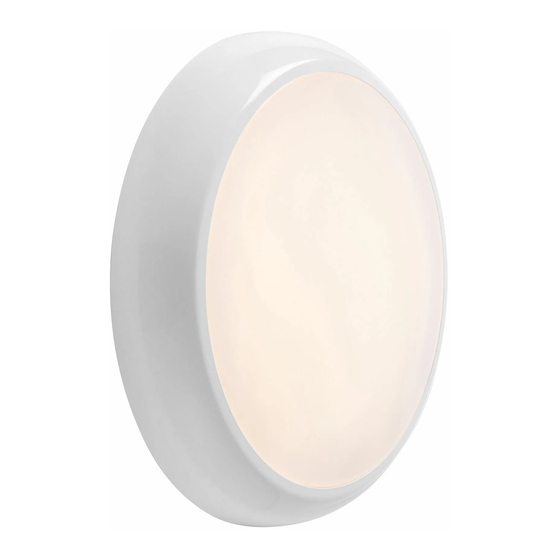

Hero CCT Step Dimming Emergency
95544
7 8
0s
30s
10min
+∞
