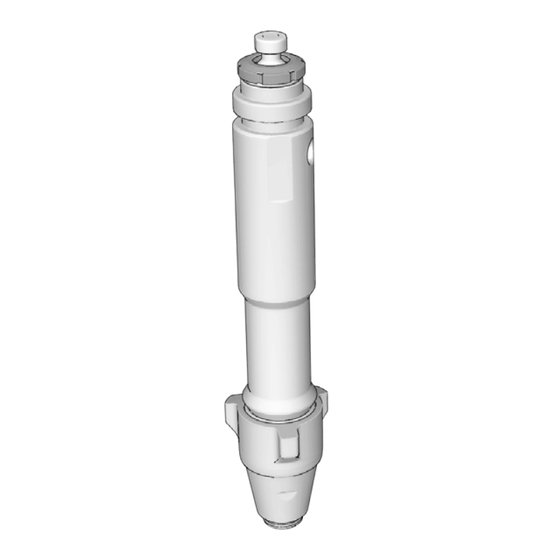

Graco 16X414 Repair Manual

Displacement pump

Hide thumbs Also See for 16X414:

Repair manual (20 pages)

page of 22

/ 22
Bookmarks

Quick Links

Download this manual

Repair

Displacement Pump

For professional use only.

3300 psi (22.7 MPa, 227 bar) Maximum Working Pressure

Model 16X414, Series A

GMAX II 3900 Lo-Boy

Model 17H832, Series A

TexSpray Mark IV Pro

Model 16X419, Series A

GMAX II 5900 Lo-Boy

Model 17H823, Series A

UltraMax II and Ultimate MX II 695/795 Pro

GMAX II 3900 Pro

Model 17H824, Series A

UltraMax II and Ultimate MX II 1095/1595 Pro

GMAX II 5900 Pro

Model 17H825, Series A

GMAX II 7900 Pro

Model 17H826, Series A

UltraMax II and Ultimate MX II 1095/1595 IronMan

GMAX 5900 IronMan

Model 17H827, Series A

GMAX II 7900 IronMan

Model 17H833, Series A

TexSpray Mark V Pro and 5900 HD Pro

Model 17H834, Series A

TexSpray Mark VII Pro

Model 17H835, Series A

TexSpray Mark X Pro and 7900HD Pro

Model 17H836, Series A

TexSpray Mark V IronMan

Model 17H837, Series A

TexSpray Mark X IronMan and 7900 HD IronMan

Model 17H892, Series A

TexSpray Mark VII IronMan

Important Safety Instructions

Read all warnings and instructions in this manual

and all related manuals before servicing. Save all

instructions.

3A6583A

Need help?

Do you have a question about the 16X414 and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco 16X414

Page 1 Repair 3A6583A Displacement Pump For professional use only. 3300 psi (22.7 MPa, 227 bar) Maximum Working Pressure Model 16X414, Series A GMAX II 3900 Lo-Boy Model 17H832, Series A TexSpray Mark IV Pro Model 16X419, Series A GMAX II 5900 Lo-Boy...
Page 2 Technical Data ......20 Parts - Pump 16X414 ..... . . 12 Graco Standard Warranty.
Page 3 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
Page 4 To reduce the risk of damaging sealing surfaces, never use sharp or pointed tools to remove sleeve. If the sleeve cannot be removed easily, return the sleeve and cylinder to a Graco b. Loosen the nut or the coupling completely.
Page 5 Service Repair When Pump is Separated 3. Disassemble intake valve. Clean and inspect o-ring (227). NOTE: A pick may be required to remove From Sprayer o-ring. NOTE: Spring (233) Disassembling the Pump only used on 16X426, 17H835, 17H834, 17H825, 17H827, 1.
Page 6 To reduce the risk of damaging sealing surfaces, never use sharp or pointed tools to remove sleeve. If the sleeve cannot be removed easily, return the sleeve and cylinder to a Graco distributor for removal. 6. Unscrew piston valve from piston rod. Clean and inspect parts.
Page 7 B) For all QuikPak™ Piston Repair Kits (provided pre-soaked in oil) ti7575c 3. Tighten piston valve to piston rod as specified: Models Torque 16X414, 17H832, 17H823 27 ± 3 ft-lb. (36.1 ± 4.1 N•m) 16X419, 17H826, 17H824, 55 ± 3 ft-lb. 17H833, 17H892, 17H834, (74.6 ±...
Page 8 Place male gland (204) in cylinder. Alternately stack UHMWPE (203) and leather packings (223) (note orientation). Place female gland (224) in top of cylinder seat packings. used on 16X414, 17H823, 17H832 ti7581b 6. Grease piston packings.
Page 9 Replace o-ring (207) if desired. 12. Install intake valve on cylinder. If a wrench is used torque as follows: Models Torque 16X414, 17H823, 70 ± 5 ft-lb (95 ± 7 N•m) 17H832 16X419, 17H826, 80 ± 5 ft-lb (108.5 ± 6.8 N•m)
Page 10 Service ti7569d 13. Torque packing nut (202) as follows: Models Torque 16X414, 17H832, 17H823 100 ± 10 in-lb (11.3 ± 1.1 N•m) 16X426, 16X419, 17H826, 17H833, 140 ± 10 in-lb 17H834, 17H835, 17H836, 17H824, (15.8 ± 1.1 N•m) 17H825, 17H827, 17H892, 17H837 14.
Page 11 Service Cross-Section Reference ™ V-Max UHWMPE, blue Mark and HD models only 3A6583A...
Page 12 Parts - Pump 16X414 Parts - Pump 16X414 Ref. Part Description Qty. 201* 179810 SEAL, throat 193046 NUT, packing 203* 192692 V-PACKING, throat, V-Max, UHMWPE, blue 204* 15C987 GLAND, male, throat, 16X450 CYLINDER, pump 206* 105444 BALL check (Stainless steel)
Page 13 Parts - Pump 17H823, 17H832 Parts - Pump 17H823, 17H832 Ref. Part Description 201*† 179810 SEAL, throat 193046 NUT, packing 203*† 192692 V-PACKING, throat, V-Max, UHMWPE, blue 204*† 15C987 GLAND, male, throat CYLINDER, pump 17H865 Model 17H823 17H870 Model 17H832 BALL, check 105444* Model 17H823 (Stainless steel)
Page 14 Parts - Pump 17H826, 17H836 Parts - Pump 17H826, 17H836 Ref. Part Description Qty. 201*† 183171 SEAL, throat 193032 NUT, packing 203*† 193124 V-PACKING, throat, V-Max, UHMWPE, blue 204*† 15C989 GLAND, male, throat CYLINDER, pump 17H868 Model 17H826 17H874 Model 17H836 206*†...
Page 15 Parts - Pump 16X419 Parts - Pump 16X419 Ref. Part Description Qty. 201* 183171 SEAL, throat 193032 NUT, packing 203* 193124 V-PACKING, throat, V-Max, UHMWPE, blue 204* 15C989 GLAND, male, throat 16X451 CYLINDER, pump 206* 101947 BALL, check (Stainless Steel) 207* 156633 PACKING, o-ring...
Page 16 Parts - Pump 17H833, 17H834, 17H892 Parts - Pump 17H833, 17H834, 17H892 Ref. Part Description Qty. 183171 SEAL, throat 201†  193032 NUT, packing 193124 V-PACKING, throat, V-Max, 203†  UHMWPE, blue 15C989 GLAND, male, throat 204†  CYLINDER, pump 17H871 Model 17H833 17H872...
Page 17 Parts - Pump 17H824 Parts - Pump 17H824 Ref. Part Description Qty. 201* 183171 SEAL, throat 193032 NUT, packing 203* 193124 V-PACKING, throat, V-Max, UHMWPE, blue 204* 15C989 GLAND, male, throat 17H866 CYLINDER, pump 206* 101947 BALL, check (Stainless Steel) 207* 156633 PACKING, o-ring...
Page 18 Parts - Pump 17H827, 17H835, 17H837 Parts - Pump 17H827, 17H835, 17H837 Ref. Part Description Qty. 112590 SEAL, throat 201*  16X768 NUT, packing 193722 V-PACKING, throat, V-Max, 203*  UHMWPE, blue 15G658 GLAND, male, throat 204*  CYLINDER, pump 17H869 Model 17H827 17H873...
Page 19 Parts - Pump 17H825 Parts - Pump 17H825 Ref. Part Description Qty. 201* 112590 SEAL, throat 16X768 NUT, packing 203* 193722 V-PACKING, throat, V-Max, UHMWPE, blue 204* 15G658 GLAND, male, throat 17H867 CYLINDER, pump 206* 107203 BALL, check (Stainless Steel) 207* 160325 PACKING, o-ring...
Page 20 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
Page 21 Graco Information For the latest information about Graco products, visit www.graco.com. For patent information, see www.graco.com/patents. TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor. 3A6583A...
Page 22 Original instructions. This manual contains English. MM 3A6583 Graco Headquarters: Minneapolis International Offices: Belgium, China, Japan, Korea GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA Copyright 2019, Graco Inc. All Graco manufacturing locations are registered to ISO 9001. www.graco.com...
