WARNING!
Read all instructions before using this product. Save these instructions. Wall Connector features built-in RCD Type A + DC 6mA. Please
review all warnings and cautions before installing and using the product.
WARNING: When using electric products, basic precautions should always be followed, including the following.
INSTRUCTIONS RELATING TO RISK OF FIRE OR ELECTRIC SHOCK
WARNING: Do not install or use the product near flammable, explosive, harsh, or combustible materials, chemicals, or vapors.
WARNING: Turn off power at the circuit breaker before installing or cleaning the product.
WARNING: This device should be supervised when used around children.
WARNING: The product must be earthed through a permanent wiring system or an equipment-earthing conductor.
WARNING: Use the product only within the specified operating parameters.
WARNING: Never spray water or any other liquid directly at the wall mounted control box. Never spray any liquid onto the charge handle
or submerge the charge handle in liquid. Store the charge handle in the dock to prevent unnecessary exposure to contamination or
moisture.
WARNING: Do not use the product if it is defective, appears cracked, frayed, broken, or otherwise damaged, or fails to operate.
WARNING: Do not use the product if the flexible power cord or cable is frayed, broken, or otherwise damaged, or fails to operate.
WARNING: Do not attempt to disassemble, repair, tamper with, or modify the product. The product is not user serviceable. Contact
producer for any repairs or modification.
WARNING: When transporting the product, handle with care. Do not subject it to strong force or impact or pull, twist, tangle, drag, or step
on the product, to prevent damage to it or any components.
WARNING: Do not touch the end terminals with fingers or sharp metallic objects, such as wire, tools, or needles.
WARNING: Do not insert fingers or foreign objects into any part of the product.
WARNING: Do not forcefully fold or apply pressure to any part of the product or damage it with sharp objects.
WARNING: Use of the product may affect or impair the operation of any medical or implantable electronic devices, such as an implantable
cardiac pacemaker or an implantable cardioverter defibrillator. Check with your electronic device manufacturer concerning the effects
that charging may have on such electronic devices before using the product.
CAUTIONS
CAUTION: Do not use private power generators as a power source for charging.
CAUTION: Incorrect installation and testing of the product could potentially damage the vehicle's battery, components, and/or the
product itself. Any resulting damage is excluded from the New Vehicle Limited Warranty and the Charging Equipment Limited Warranty.
CAUTION: Do not operate the product in temperatures outside its operating range of -25˚ C to +65˚ C
CAUTION: Product should only be installed by personnel who are trained and qualified to work on electrical systems.
CAUTION: Ensure that product is within storage temperature when moving, transporting, or storing.

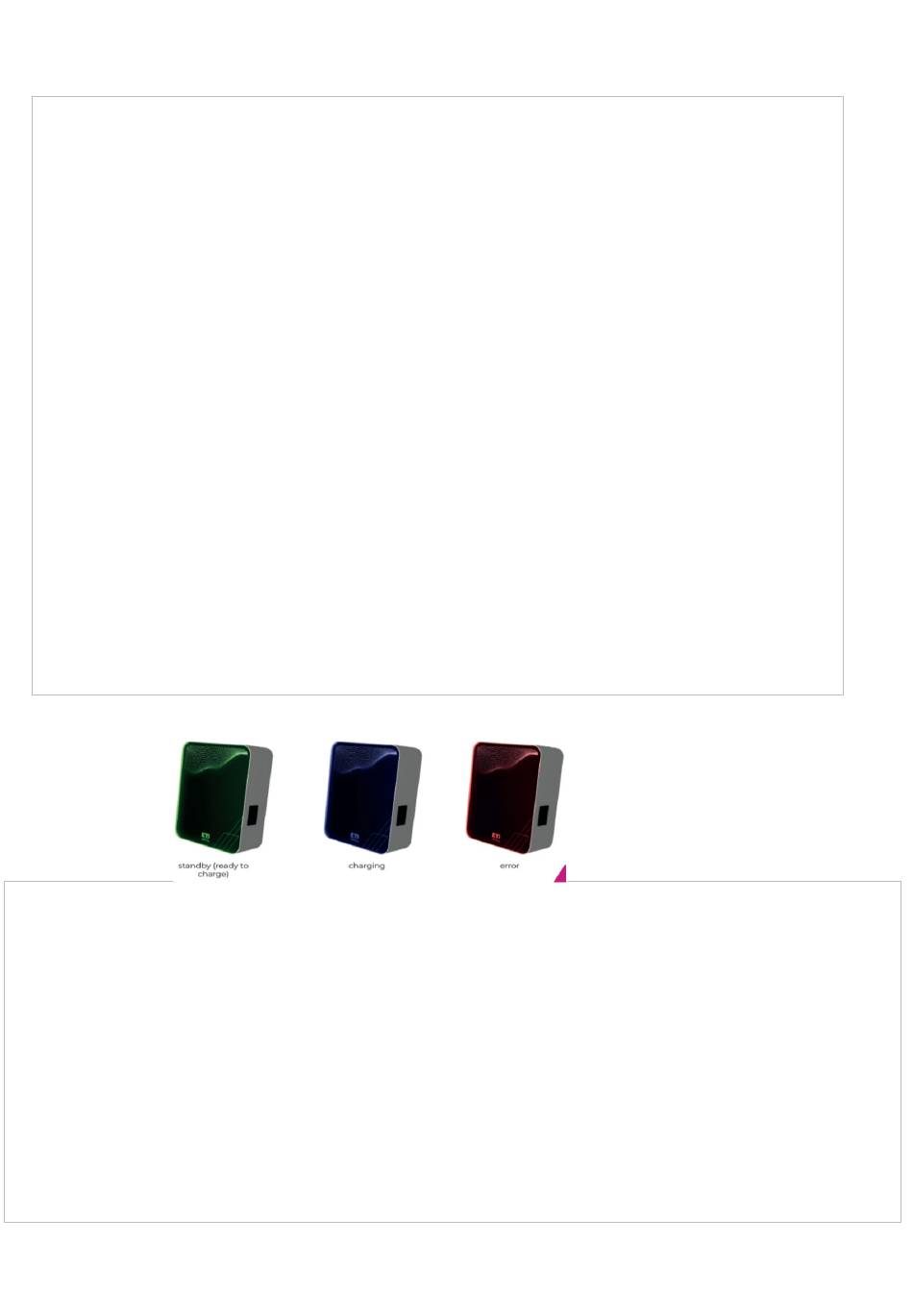

LED indication and description of operation
When powered VIOLET light is on for 1s, then number of BLUE blinks signalizes the MAX CHARGE current setting, after that GREEN blinks signalize DLB/
MAINS FUSE current setting and last EV meter selection blinks are displayed in CYAN. After the boot process charging station goes to ready mode or
locked mode if RFID key operation is selected.
After 120s of inactivity or no state change LED ilumunation is reduced from 100% to 25% in case of reduced LED brighthes mode, the brightness is
reduced from 25% to 6%.
If RFID keys are used, only the same key can lock back the station that has previously unlocked it. When unlocked by RFID key there is 60s time for the
user to connect the cable to the EV, else the station locks itself up again. When charging is complete and RFID keys are used after charge is complete and
cable is removed the charging station locks itself. When RFID keys are used, and charging is in progress and the right key is presented the charging
session if finished and the station is locked.
An unlocked station is indicated by a dim green light. Station locked state is signaled with a low intensity orange with 3s small intensity burst to see the
locked state also in sunny condition when LED intensity prower reduction is activated.
When a vehicle is connected to the charging station that is ready and unlocked, communication is being established which is indicated by a bright stedy
cyan colour. When charging is in progress blue light fades in and out. When charging is finished this is also signalized with a bright cyan color. When the
charging station is waiting for the EV in case of in car programed charging delay this is also signaled by a bright Cyan light which means "Negotiating with
EV".
In case of an error the error is displayed with red blinks, and a charging session is stopped if charging was progress.
1.) One blink - over temperature, this error is self resettable when temperature falls below 60C.
2.) Two blinks – RCM or RCCB has tripped, this error is not resettable, only a power cycle can reset this error.
3.) Three blinks – problems with communication to mains energy meter, this error is self resettable when communication is restored.
