ETI EVC-HOME22-RFID Manual page 2

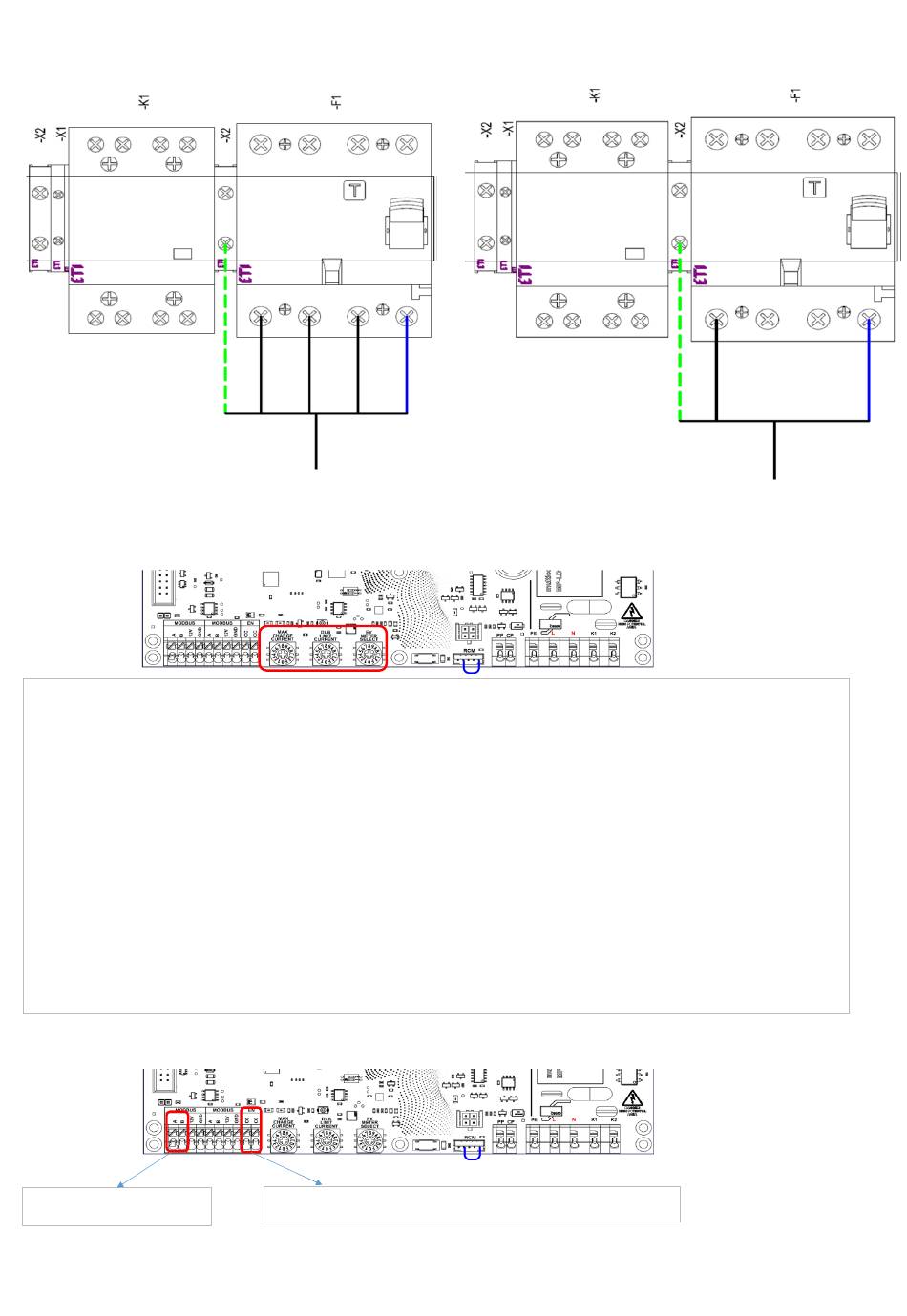

Wiring
3 phase system
PE
F1 - RCCB EV type
SETUP
MAX CHARGE CURRENT rotary selector
0.)6A 1.)7A 2.)8A
8.)18A 9.)20A 10.)22A
DLB LIMIT / MAINS FUSES SELECTION rotary selector
0.)10A 1.)16A 2.)20A
8.)63A 9.)80A 10.)100A
MAINS ENERGY METER SELECTION + EXTRA SETTINGS rotary selector
0.) DLB DISABLED, use standard charge preset to »MAX CHARGE CURRENT«
1.) DLB ENABLED, use ETI 3MEM65-BRS energy counter (Set via Screen to address 33 & 9600bps)
2.) DLB ENABLED, use 3MEM80-BEVRSPO meter (Set via screen to address 33 & 9600bps & 1stop bit)
3.) DLB ENABLED, Eastron SDM630 meter (Set via screen to address 1 & 9600bps)
4.) Reserved up to position 13 for future use.
12. "C" Set maxiumum LED illumination value. For every charging station start when selector is set to "C" the maxiumum brightness value toggless between 100%
(default) and 25% reduced mode. After power cycle the last value is saved in EEPROM for normal operation. After changing the illumination value set the rotary selector back to
the desired position 0..3 and power cycle the charging station.
14. "E" Erase all RFID keys & disable lock/unlock with keys functionality. Set the selector before powering up then after boot wait for all setup displays blinks to finish
and a steady green light is displayed. Set the rotary selector back to setting 0...2 and power cycle the charging station.
15. "F" Learn new RFID keys and enable lock/unlock with keys functionality. Set the selector before powering up and after boot wait for all setup display blinks to finish
and the charging station indicator is lit in dim white light. Present compatible 13.56Mhz Milfare keys or a mobile phone with Key card emulation support. A newly recognized
card is signaled with two bright white blinks. When finished learning new RFID cards set the selector back to setting 0...2 and power cycle the charging station.
RS485 port for connection with
Energy counter (twisted pair)
L1 L2 L3 N
Power supply input: 3ph 5x6mm^2 / 1ph 3x 6mm^2
Upstream protected with MCB 3x32 or 40, B or C
3.)9A 4.)10A 5.)12A
11.)24A 12.)26A 13.)28A
3.)25A 4.)32A 5.)35A
11.)125A 12.)160A 13.)200A
Enable input for simple remote control with external device. Contact under voltage
single phase system
6.)14A 7.)16A
14.)30A 15.)32A
6.)40A 7.)50A
PE L1 N
