ETI DEC-2 Manual

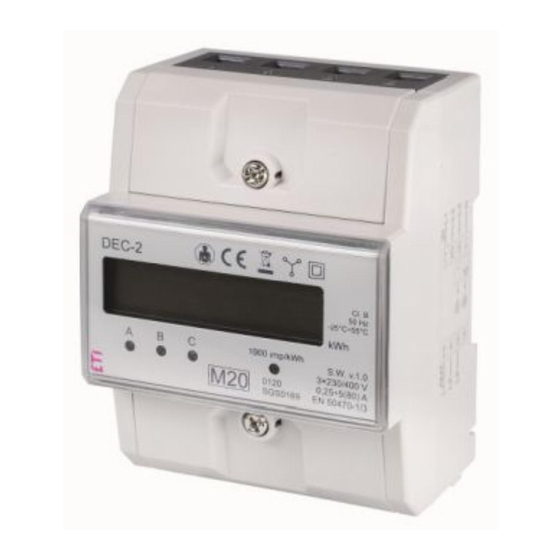

DEC-2
004804051
El. meter
Merilni instrument
Mjerni instrument
Miernik
Měřící přístroj
Merací prístroj
Fogyasztásmérő
El. Energijos skaitiklis
Измерительный прибор
Elekro enerģijas skaitītājs
Elektriarvesti 3 8 3 8 8 9 5 6 2 0 7 5 4
Messgerät
ETI, d.o.o., Obrezija 5, SI-1411 Izlake
www.etigroup.eu/products-services
Compliance
MID Directive 2014/32/EU
Purpose
DEC-2 is a static (electronic) indicator calibrated electricity three-
phase alternating current in the system directly.
Functioning
A special electronic system under the influence of current flow and
applied voltage in each phase, generates pulses in proportion to
the electricity consumed in this phase. Phase energy consump-
tion is indicated by flashing the corresponding LED (L1, L2, L3). The
sum of the pulses of the three phases is indicated by a flashing LED
shall be converted to energy, taken throughout the three-phase
system, and its value is determined by the segment LCD display.
Decimal represent the hundredths (.01 KWh = 10Wh).
- 1 -
Pulse output
The meter is equipped with pulse output SO+ – SO-. This allows you
to connect another pulse device (SO) that reads pulses generated
by the meter.
No additional connected equipment is required for proper opera-
tion of the meter.
Sealing
The meter has sealable input and output terminal covers to pre-
vent any attempts to bypass the meter.
Meter number
The meter is marked with individual serial number allowing its
unambiguous identification. The marking is laser engraved and
cannot be removed.
AA12345
AA12345
- 2 -

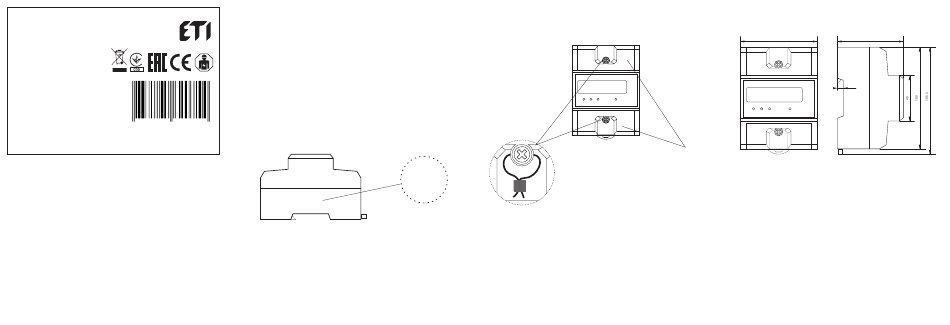

Meter front description
sealing
spot
- 3 -
Dimensions
76
5,7
terminal
cover
- 4 -
65
