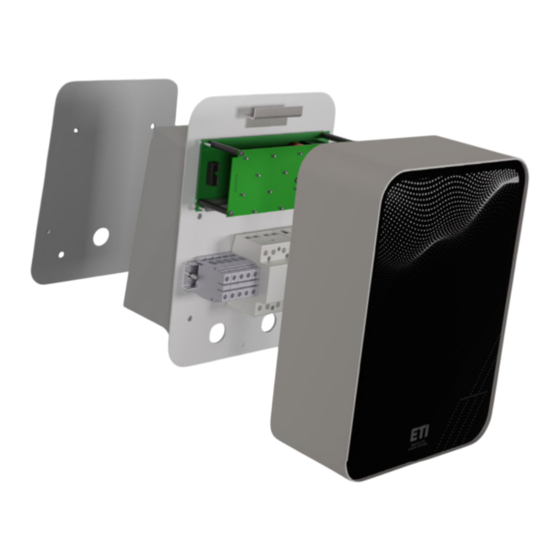

ETI EVC-HOME22-RFID Manual

Installation and user manual
Technical data
Product type
Standards / Directives:
Installation method:
Recommended installation height:
Installation environment:
Other installation restrictions
Location type:
Power supply:
Earthing system:
Frequency:
Charging type:
Charging method:
Current output range
Rated output
Icc
Overvoltage category
Standard cable length (fixed cable):
Enclosure rating:
Mechanical impact resistance:
Material
Protection class
Operating temperature:
Storage temperature
Weight:
Ventilation:
Residual current protection
Overcurrent and short-circuit protection
Cable inlet
No adaptors, conversion cables or cord extension sets are allowed to be used

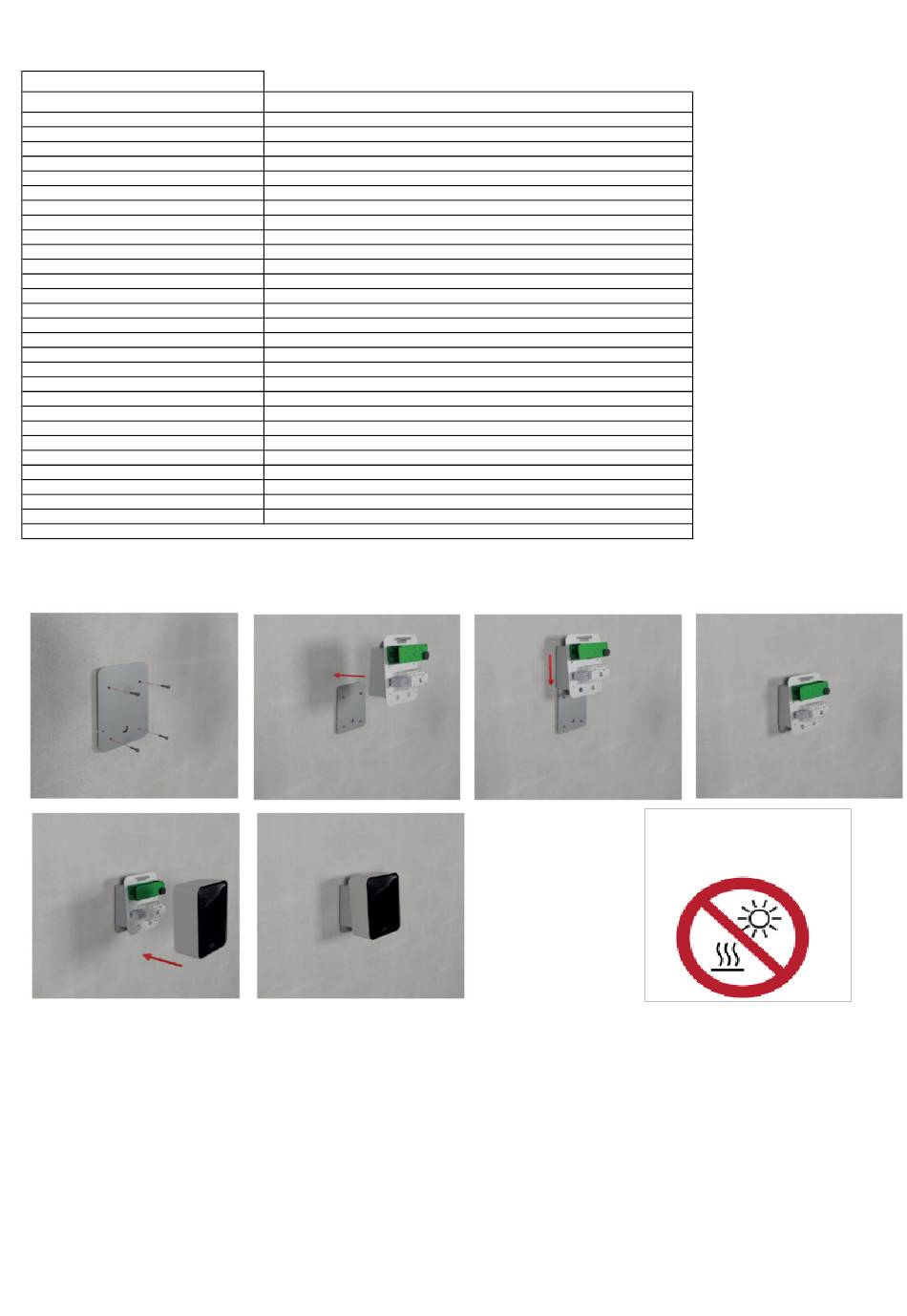

Mounting
EVC-HOME22
CE, IEC 61851-1
Wall (Surface) mounted
1,2 m (floor to bottom of charger)
Indoor / Outdoor
Do not expose to sunlight or other heat sources
Non-restricted Access
1~/N/PE; 230 V; 32A or 3~/N/PE 230/400 V; 32A
TT, TN and IT systems
50 Hz
Mode 3
AC Charging
Maximum 32A (adjustable by installer), possible levels: 6A...32A
22 kW (3ph) / 7,4 kW (1ph)
< 10kA
III
5 m with Type 2 plug (handle)
IP 54
IK08
Powder coated stainless steel (Inox 316L)
I
-25 °C - +50 °C"
-30 °C - +60 °C
10 kg
Ventilation is not supported
Integrated modular RCCB EV (Type A + DC 6 mA)
Not included, must be provided in upstream board (32A or 40A, B or C MCB)
From bellow, M25 sealing glands included
Do not expose to sunlight
or other heat sources!
