ETI DEC-1 Quick Start Manual

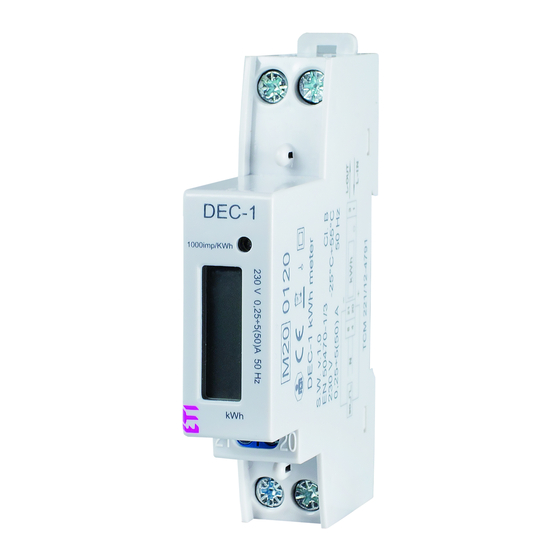

DEC-1
004804050
El. meter
Merilni instrument
Mjerni instrument
Miernik
Měřící přístroj
Merací prístroj
Fogyasztásmérő
El. Energijos skaitiklis
Измерительный прибор
Elekro enerģijas skaitītājs
Elektriarvesti 3 8 3 8 8 9 5 6 2 0 7 2 3
Messgerät
ETI, d.o.o., Obrezija 5, SI-1411 Izlake
www.etigroup.eu/products-services
Compliance
MID Directive 2014/32/EU
Purpose
DEC-1 is a static (electronic) calibrated electricity meter of single-
phase alternating current in a direct system.
Functioning
A special electronic system under the influence of flowing current
and applied voltage generates pulses proportional to the drawn
energy. Energy consumption is indicated by a flashing LED. The
amount of pulses is converted into energy input, and its value is
displayed by the segment LCD display. The fractional digits repre-
sent the hundredths (.01 kWh = 10 Wh).
- 1 -
Pulse output
The meter is equipped with pulse output SO+ – SO-. This allows you
to connect another pulse device (SO) that reads pulses generated
by the meter.
No additional connected equipment is required for proper opera-
tion of the meter.
Sealing
The meter has sealable input and output terminal covers to pre-
vent any attempts to bypass the meter.
Meter number
The meter is marked with individual serial number allowing its
unambiguous identification. The marking is laser engraved and
cannot be removed.
- 2 -

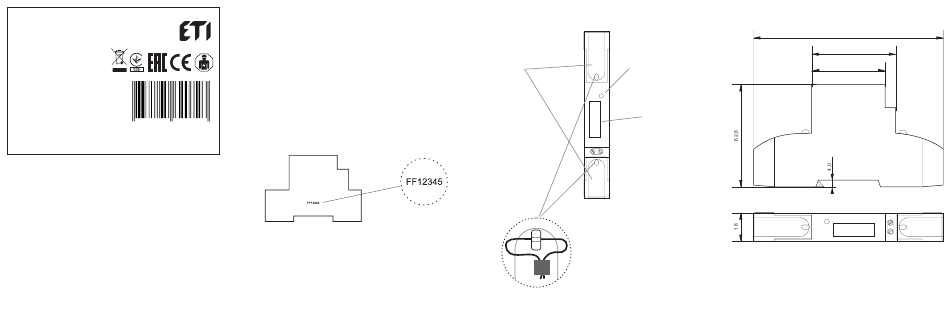

Meter front description
kWh reading LED
terminal
covers
LCD display
sealing points
- 3 -
Dimensions
116,2
52
45
- 4 -
