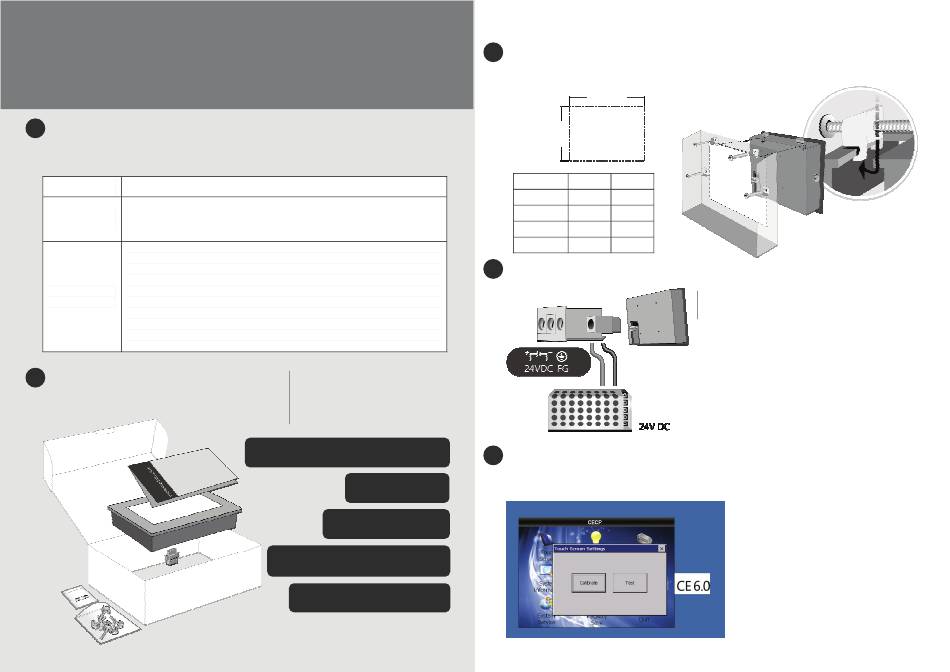

weintek eMT 600 Series Installation Instruction

eMT 600 series
Installation and Startup Guide
1
This document covers the installation of eMT-600 Series HMI, for the detailed specifications and
operation, please refer to Datasheet and eMT-600 User Manual.
Install Environment:
NEMA Rating eMT-600 HMI is NEMA 4 rated.
The eMT-600 Series has been tested to conform to European CE requirements.
Electrical This means that the circuitry is designed to resist the effects of electrical noise.
Environment This does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(5)
(4)
Installation Instruction
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) eMT-600 HMI *1
(3) Power Connector *1
(4) Brackets & Screws V2.1 *1 pack
(5) Fuse 1.6A/250V 5*20mm *1
(1.25A for 607)
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws.
(A)
Cutout
(B)
Type A(mm) B(mm)
eMT607A 192 138
eMT610P 259 201
eMT612A 305 231
eMT615A 352 279
4 Power Connections
5 System Settings
Power up HMI, click CECP to do touch screen calibration, backlight adjustment, or screen rotation.
NOTE:
1. Connect positive DC line to the '+' terminal
and the DC ground to the '-' terminal.
2. Please do not connect HMI with PLC and PC
simultaneously to prevent potential difference
from destroying USB ports of HMI and PC.
To make a connection, strip about 3/8" of
insulation off the end of the wire, turn the
connector screw counterclockwise until the gap
is wide open, insert the wire all the way in, and
turn the screw clockwise until it's tight.
( Note 1: For the details of HMI
DIP SW function settings please
refer to Part 8 in this guide. )
