Using touch screen calibration

How to use the new touch screen calibration

method for i Series models?

Starting from OS ver. 20140819, a new method to enter touch screen

calibration mode is added. The user can press and hold anywhere on the LCD

screen when HMI starts to enter touch screen calibration mode. And, a

confirmation pop-up window is added. From the window, the user can view

the result or retry calibration without rebooting HMI. The new method works

well for both landscape and portrait mode.

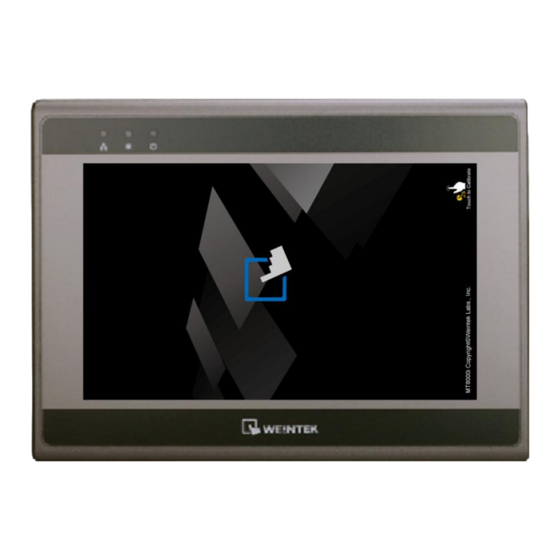

Press and hold anywhere on the screen until the touch screen

calibration starts.

Using i Series Touch Screen Calibration

FAQ

www.weintek.com

Table of Contents

Do you have a question about the i Series and is the answer not in the manual?

Page 1 Using i Series Touch Screen Calibration How to use the new touch screen calibration method for i Series models? Starting from OS ver. 20140819, a new method to enter touch screen calibration mode is added. The user can press and hold anywhere on the LCD screen when HMI starts to enter touch screen calibration mode.
Page 2 Using i Series Touch Screen Calibration Step 2. Touch the five calibration points. Step 3. After all the calibration points have been touched, a pop-up window is displayed and begins countdown from 10 seconds. During the 10-second countdown, the user can touch the screen to check the calibration result.
Page 3 Using i Series Touch Screen Calibration Portrait Mode Touch Screen Calibration Please follow the same steps as the preceding part. www.weintek.com...
