The Cove Fire Pit
Installation Instructions for Round Cove Fire Pits

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-30E and is the answer not in the manual?

Questions and answers

Related Manuals for Outdoor GreatRoom Company CV-30E

Summary of Contents for Outdoor GreatRoom Company CV-30E

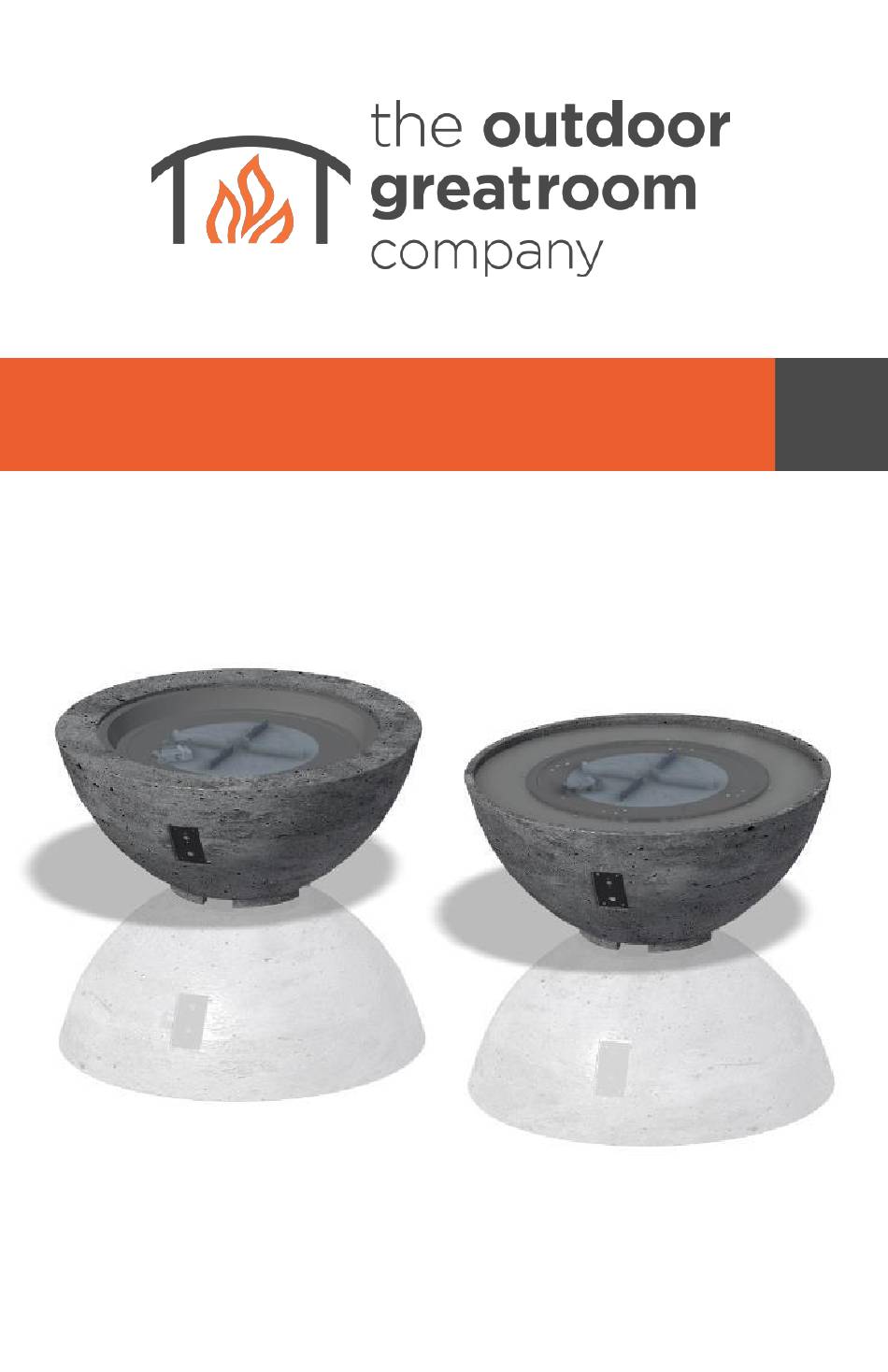

  • Page 1 The Cove Fire Pit Installation Instructions for Round Cove Fire Pits...

  • Page 2: Table Of Contents

    Contents IMPORTANT Required Tools… ......... 2 Included with your Fire Pit… ....3 Assembly Instructions… ......4 Gas Connections ........6 Contents Required Tools… ......... 2 Included with your Fire Pit… ....... 3 Position Your Tank ......7 Assembly Instructions ......... 4 CF-SPARKER Installation…...

  • Page 3: Included With Your Fire Pit

    Included With Your Fire Pit Crystal Fire® Plus (CFP) Burner Kit and Grey Glass Burner Cover for the CV-20 and CV-30 (CV-30E does not have a burner cover)

  • Page 4: Assembly Instructions

    Assembly Instructions 1. First, unscrew the shipping block with a power drill. Discard board. It will not be needed for further assembly of this product. 2. Remove fire pit base from the crate you received it in. Place the base in your desired location. Two people are recommended for this step of the installation.

  • Page 5: Gas Connections

    CF-SPARKER Installation Locate CF-SPARKER inside of crystal fire burner box. • Remove CF-SPARKER cap and hex nut. Insert AAA battery • (not included) with + end out. Install CF-SPARKER into control panel as shown below. • Depress CF-SPARKER button to test your sparker. •...

  • Page 6: Thermocouple Installation

    Thermocouple Installation • Refer to Crystal Fire® Plus instruction manual for detailed attachment of thermocouple. • Attach thermocouple to burner valve as shown below. Electrode Installation • Connect igniter and ground wire to sparker box. Both wires can connect to either connection point. The unit will operate in either configuration.

  • Page 7: Position Your Tank

    Glass Media and Glass Burner Cover Installation 1. Scatter all the included glass beads evenly onto the burner surface. 2. Install Glass Burner Cover on the burner.

  • Page 8: Cv-30-E Installation

    CV-30-E Installation • Place burner plate into Cove base. • Remove the 4 ¼-20 stainless steel screws installed in rivnuts. • Make gas connections. • Ignition wind guard should be oriented towards cutout in burner plate. As shown in detailed view. •...

  • Page 9: Operating Instructions And Warnings

    IMPORTANT Please consult your Crystal Fire® Plus instruction manual for detailed instructions and important information related to the burner installation including: lighting and operating instructions, safety information, and proper tightening of connections with two wrenches. Operating Instructions • Verify control valve is in OFF position. If operating on a self-contained propane cylinder, ensure cylinder valve is CLOSED.
  • Page 10 • Press and hold the sparkler button. Verify an audible and visible spark is present within the ignition wind guard. • Gently press and turn the control knob to LOW/IGNITION position. Fully depress control knob and hold for 3-5 seconds. Burner should ignite and continue to operate when control knob is released.

  • Page 11: Frequently Asked Questions

    If covering a GFRC item, use a one-way breathable cover as supplied by The Outdoor GreatRoom Company, LLC (OGC) or equivalent. Do not use other materials or objects in order to hold down or secure a protective cover on top or around the GFRC item.

  • Page 12: Maintenance Instructions

    Maintenance Instructions: To keep your fire pit looking new, we recommend the following: • Keep covered when not in use to protect from buildup of water, snow, dust, dirt, and debris and direct sunlight whenever possible. • Do not put the cover on when the fire pit is wet. •...
  • Page 13 Thank you for purchasing an Outdoor GreatRoom Company product! Warranty: Fire pit tables are covered under a 1- year manufacturer’s warranty. Please visit https://outdoorrooms.com/pages/product- support product-registration to register your product. St. W. • Lakeville, MN 55044 9583 217 Toll Free: 1-866-303-4028 •...
